Aluminium 3 Track Sliding Window The Ultimate Solution for Maximum Ventilation and Views

When standard two-track sliding windows cannot provide enough opening area or ventilation flexibility, the aluminium 3 track sliding window offers a superior alternative. With three independent tracks and three sliding sashes, this system allows up to two-thirds of the total window width to be opened—significantly more than the one-half opening of two-track designs. The result is exceptional cross-ventilation, unobstructed views, and the space-saving benefits of sliding operation. This comprehensive guide explores the design, advantages, and selection criteria for aluminium 3 track sliding windows.

Understanding the Aluminium 3 Track Sliding Window

An aluminium 3 track sliding window features three parallel tracks within a single frame, typically accommodating three sliding sashes. The most common configuration has all three sashes operable, allowing the user to slide any combination of sashes to achieve the desired opening. Alternative configurations include two sliding sashes and one fixed sash, or three sashes with the center sash fixed.

The frame is extruded from high-grade aluminium alloy, typically 6063-T5, known for its excellent strength-to-weight ratio and corrosion resistance. Modern aluminium 3 track sliding windowsincorporate thermal break technology—a polyamide insulating strip inserted between interior and exterior aluminium sections. This dramatically reduces heat transfer, making these windows suitable for all climates.

The sliding mechanism uses precision-engineered stainless steel roller assemblies, with each sash riding on its own dedicated track. This independent operation allows any sash to be opened without moving the others. High-quality systems feature adjustable rollers, stainless steel tracks, and multi-point locking mechanisms that engage when the sash is closed.

Key Advantages of Aluminium 3 Track Sliding Windows

Maximum ventilation is the most compelling advantage. A three-track system can open up to 66 percent of the total window width, compared to 50 percent for a two-track system. This creates exceptional cross-ventilation, allowing fresh air to flow freely through the space. In hot climates or during summer months, this increased airflow can significantly reduce reliance on air conditioning.

Flexible ventilation control allows the user to open any combination of sashes. Open one sash for gentle background ventilation, two sashes for moderate airflow, or all three for maximum air exchange. The independent tracks mean that each sash can be positioned at any point along its track, providing fine-tuned control over where air enters the room.

Unobstructed views are enhanced by the slim profile of aluminium framing. The three-track design maintains narrow frame lines, maximizing the glass area. When fully opened, the sashes stack neatly at one side, leaving a clear opening with minimal visual obstruction.

Space-saving operation is inherent to all sliding windows. Since the sashes slide horizontally within the frame plane, they require no outward or inward swing clearance. This makes 3 track sliding windows ideal for installations above kitchen counters, along narrow walkways, adjacent to patios, or in rooms where furniture placement would obstruct swinging windows.

Durability and low maintenance are hallmarks of aluminium construction. The frame will not rot, warp, rust, or corrode. Powder-coated finishes resist fading and require only occasional cleaning with mild soap and water. The stainless steel roller systems are rated for 20,000+ cycles.

Enhanced security is achieved through multi-point locking systems. When closed, the sliding sash is locked at multiple points along the frame. Anti-lift blocks prevent the sash from being lifted off the track. For three-track systems, locking mechanisms can be independent for each sash or integrated.

Glass and Hardware Options for Aluminium 3 Track Sliding Windows

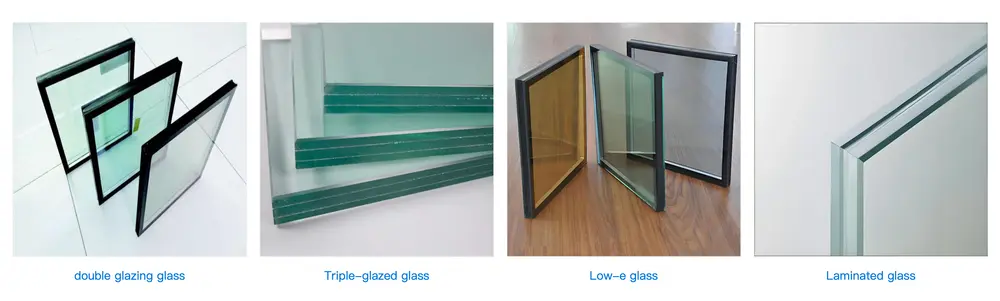

Glass configurations:

• Double glazing (5mm+20A+5mm): Standard, with Low-E coating and argon gas fill.

• Triple glazing (5mm+12A+5mm+12A+5mm): For extreme climates or noise-sensitive locations.

• Laminated glass: For security and sound reduction.

• Tempered glass: Safety glazing required in many codes.

• Tinted or reflective glass: Reduces solar heat gain.

Hardware specifications:

• Stainless steel roller assemblies: Three independent roller systems, each adjustable.

• Multi-point locking: 2 to 4 locking points per sash; stainless steel components.

• Flush or low-profile handles: Maintain clean aesthetics.

• Anti-lift blocks: Prevent sash removal when locked.

• Integrated insect screens: Retractable screens for ventilation without pests.

Applications for Aluminium 3 Track Sliding Windows

Residential homes use these windows in living rooms, kitchens, and bedrooms where maximum ventilation is desired. They are particularly popular in hot climates and for rooms facing prevailing winds.

Apartments and condominiums specify 3 track sliding windows for their space-saving operation and compliance with high-rise safety codes. The enhanced ventilation is valued in units with limited cross-flow.

Commercial buildings including restaurants, cafes, and retail spaces use these windows to create open-air connections to outdoor seating areas. The wide opening allows for pass-through service.

Coastal and high-wind areas benefit from the structural strength of aluminium. Three-track systems can be engineered to withstand wind pressures exceeding 2,500 Pa.

Frequently Asked Questions About Aluminium 3 Track Sliding Windows

Q: How much wider is the opening compared to a two-track window?
A: A two-track window typically opens 50% of the total width (one sash opens). A three-track window with three operable sashes can open 66% of the total width (two sashes stack on one side, one remains). Some three-track configurations allow all three sashes to stack on one side, opening 75% of the width.

Q: Are aluminium 3 track sliding windows energy efficient?
A: Yes, when equipped with thermal break profiles and double or triple glazing. They achieve U-values comparable to casement windows (1.2 to 1.8 W/m²K). However, sliding windows inherently have slightly higher air leakage than casement windows due to the track design.

Q: Can I install insect screens on a 3 track sliding window?
A: Yes, retractable or sliding insect screens are available. The screen is typically mounted on the interior side and operates independently of the window sashes.

Q: How do I maintain the tracks and rollers?
A: Keep tracks clean by vacuuming or wiping debris. Annually, apply silicone-based lubricant to the tracks and rollers. Avoid oil-based lubricants that attract dust. Stainless steel components require minimal maintenance.

Q: What is the typical lifespan of an aluminium 3 track sliding window?
A: 30 to 50 years with quality materials and proper installation. The aluminium frame lasts indefinitely. Rollers and weather seals may need replacement after 15 to 20 years. Tracks may need cleaning but rarely require replacement.

Installation Considerations

Professional installation is critical for aluminium 3 track sliding windows. The frame must be perfectly square and level. The three tracks must be parallel and correctly spaced. The rollers must be adjusted to ensure smooth operation and proper engagement with the locking mechanisms. Proper flashing and sealing prevent water infiltration, which is particularly important for three-track systems with multiple track junctions.

Conclusion

Aluminium 3 track sliding windows offer an exceptional combination of maximum ventilation, flexible control, space-saving operation, and durability. With the ability to open up to two-thirds or more of the total window width, they provide airflow that two-track systems cannot match. For homeowners, architects, and developers seeking superior ventilation without compromising on views or security, the three-track sliding window is an excellent choice.

Cooperate With Hunan Haolv Building Materials Co., Ltd.

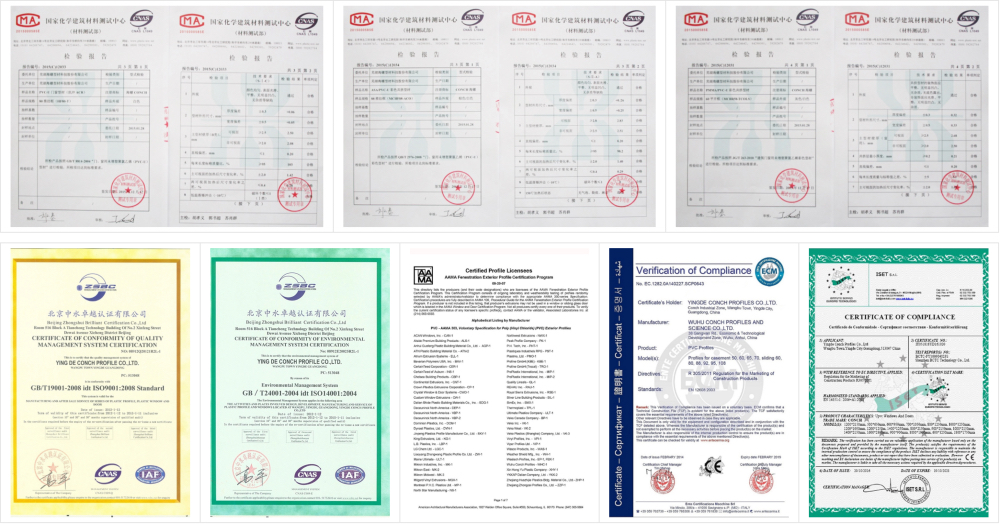

As a leading manufacturer of high-performance aluminium window systems, Hunan Haolv Building Materials Co., Ltd. brings over eighteen years of specialized expertise to the production of aluminium 3 track sliding windows. Our 3 track sliding windows are crafted from premium 6063-T5 aluminium alloy with thermal break technology, stainless steel roller assemblies, and multi-point locking hardware. We offer comprehensive customization services including double or triple glazing, Low-E coatings, any RAL color finish, and integrated insect screens. Every product undergoes rigorous ISO-certified quality management from raw material selection through final inspection. For detailed quotations, pricelist information, or to discuss your specific project requirements, please contact us today at kristin@haolvwindows.com.
