Aluminum Top Hung Window Safe Rainy-Day Ventilation for Any Room in the House

Have you ever wanted to leave a window open during a rain shower without worrying about water coming in? The aluminum top hung window (also called an awning window) solves this problem beautifully. Hinged at the top and opening outward from the bottom, it directs rainwater away while allowing fresh air to circulate. This comprehensive guide explains the features, benefits, and best uses for aluminum top hung windows.

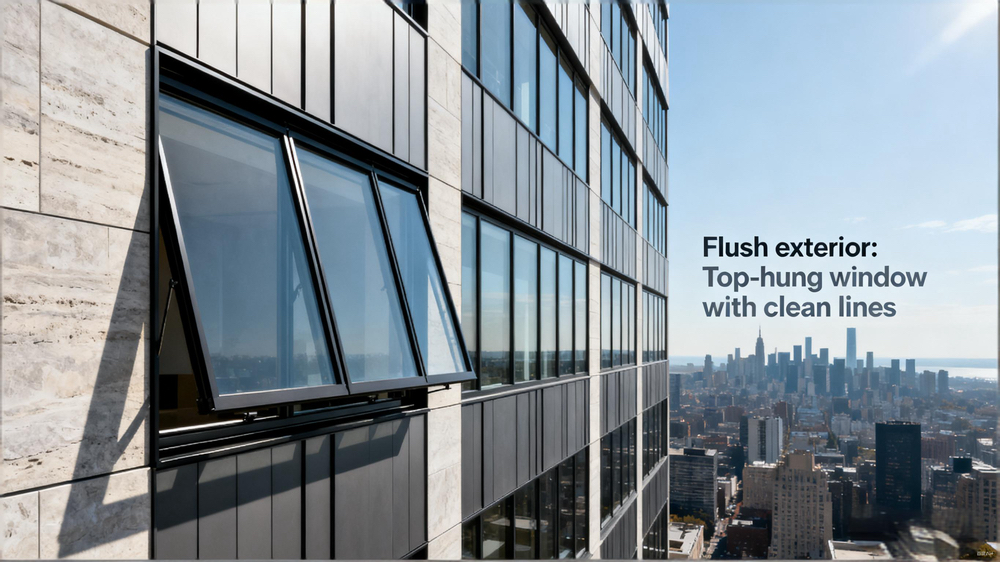

Understanding the Aluminum Top Hung Window

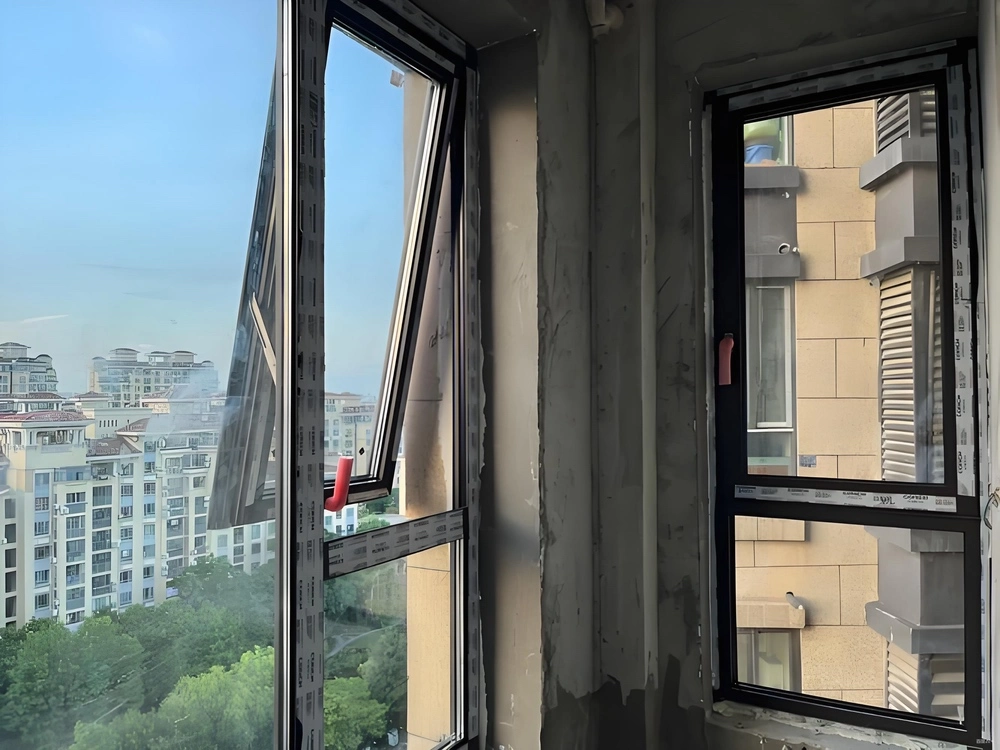

An aluminum top hung window has its sash hinged along the top edge. When opened, the bottom of the sash swings outward, creating a gap at the top. Operation is typically via a crank mechanism or push‑out friction stays. The opening angle can be precisely controlled, from a small ventilation slot (100–150mm) to a fully open position (typically 90°).

The frame is extruded from high‑grade 6063‑T5 or 6061‑T6 aluminium alloy, known for its strength, corrosion resistance, and slim profile capabilities. Modern aluminum top hung windowsincorporate thermal break technology – a polyamide insulating strip between interior and exterior aluminium sections – to prevent heat transfer and condensation.

Multi‑point locking mechanisms engage along the bottom and sides of the sash, creating a secure seal when closed. Because the hinge is at the top, even if the locking mechanism fails, the sash remains attached – an inherent safety feature. The top‑hung design also means the sash acts as a canopy, deflecting rain even when partially open.

Continuous EPDM or silicone gaskets ensure weather‑tightness when closed. Stainless steel friction hinges or scissor arms are rated for 20,000+ cycles.

Key Advantages of Aluminum Top Hung Windows

Safe ventilation in all weathers is the standout feature. The top‑hinged design lets you keep the window open during light to moderate rain without water entering. This is invaluable for bedrooms (night ventilation), bathrooms (humidity control), and kitchens (cooking odours) where you want fresh air even when it is drizzling.

Enhanced safety for high‑rise buildings. Typical building codes limit how far a window can open. Top hung windows can be fitted with restrictors that limit the opening to 100–150 mm – enough for fresh air but too small for falls. This makes them ideal for apartments, schools, and hospitals.

Space‑saving operation. The sash swings outward, wasting no interior space. You can place furniture directly below the window without any obstruction – perfect for kitchens with counters below the window.

Excellent weather‑tightness when closed. The compression seal, combined with multi‑point locking, gives top hung windows very high air and water tightness ratings (Air Infiltration ≤0.05 cfm/ft², Water Resistance ≥700 Pa).

Energy efficiency. Thermal break profiles plus double glazing with Low‑E coating and argon gas fill achieve U‑values of 1.2–1.8 W/m²K, meeting modern energy codes.

Security. Multi‑point locking (2–5 points) engages at several locations. The hinges are on the exterior, so they cannot be tampered with from inside. Many models include hinge‑side security pins.

Low maintenance. Aluminium does not rust, rot, or warp. Powder‑coated finishes (any RAL colour) resist fading and need only occasional cleaning with mild soap and water.

Glass and Hardware Options for Aluminum Top Hung Windows

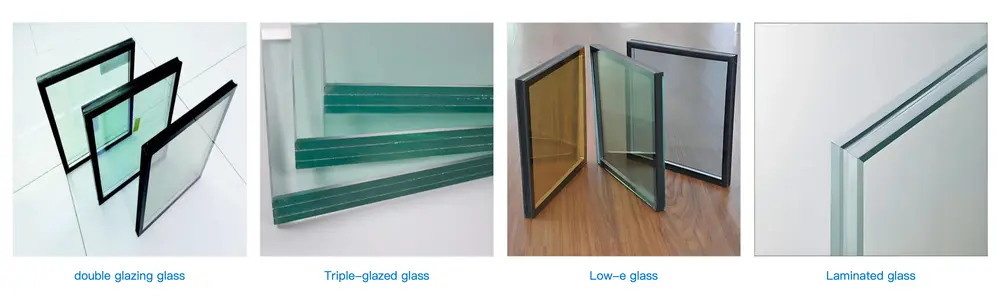

Glass configurations:

• Double glazing (5mm+20A+5mm): Standard Low‑E + argon.

• Triple glazing (5mm+12A+5mm+12A+5mm): For extreme climates or noise reduction.

• Laminated glass: Security and sound reduction.

• Tempered glass: Safety glazing.

Hardware specifications:

• Stainless steel friction hinges/scissor arms: Smooth operation, 20,000+ cycles.

• Crank operators: Corrosion‑resistant gears; folding handles optional.

• Multi‑point locking: 2–5 locking points.

• Restrictors: Limit opening angle for safety (high‑rise compliance).

• Integrated insect screens: Retractable, mounted on interior side.

Applications for Aluminum Top Hung Windows

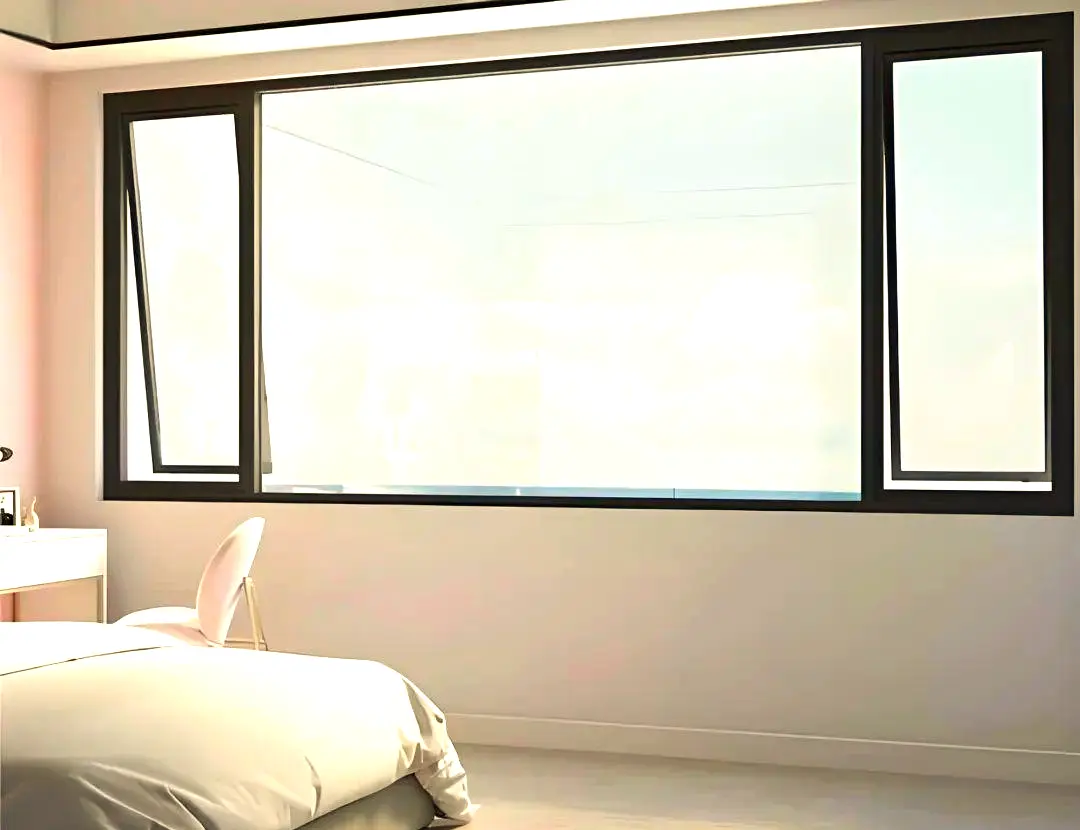

Residential homes – kitchens, bathrooms, basements, and any room where rain‑safe ventilation is desired.

High‑rise apartments and condominiums – safe ventilation with fall prevention.

Schools, hospitals, office buildings – controlled, secure airflow.

Commercial and institutional buildings – reliability and low maintenance.

Frequently Asked Questions About Aluminum Top Hung Windows

Q: Can top hung windows be used in high‑rise buildings?
A: Yes, they are one of the best choices for high‑rise applications. With restrictors limiting the opening to 100 mm, they provide safe ventilation and meet most building codes.

Q: How do top hung windows compare to casement windows for ventilation?
A: Top hung windows are better for rain‑safe ventilation (can be left open in rain). Casement windows can provide larger openings for maximum airflow on dry days. Both have similar thermal performance.

Q: Are aluminum top hung windows energy efficient?
A: Yes, with thermal break profiles and double glazing, they achieve U‑values as low as 1.2–1.8 W/m²K, meeting modern energy codes.

Q: Can I install an insect screen on a top hung window?
A: Yes. Retractable insect screens are available that mount on the interior side and do not interfere with the opening mechanism.

Q: What is the typical lifespan?
A: 30–50 years for the aluminium frame. Hardware and seals may need replacement after 15–20 years. The powder‑coated finish can last 30+ years.

Installation and Long‑Term Value

Professional installation is critical. The frame must be square and level; hinges must be properly aligned to ensure smooth operation and even gasket compression. Correct flashing prevents water infiltration. Restrictors (if required) must be correctly fitted.

Long‑term value includes energy savings, zero painting, enhanced safety, and increased property value. Their ability to provide ventilation even during rain makes them a unique and practical asset.

Conclusion

Aluminum top hung windows offer a unique combination of safe rain‑ventilation, space efficiency, energy performance, and security. They are the go‑to choice for high‑rise apartments, bathrooms, kitchens, and any location where you want fresh air without worrying about weather or safety.

Cooperate With Hunan Haolv Building Materials Co., Ltd.

As a leading manufacturer of high‑performance aluminium window systems, Hunan Haolv Building Materials Co., Ltd. brings over eighteen years of specialized expertise to the production of aluminum top hung windows. Our top hung windows are crafted from premium 6063‑T5 aluminium alloy with thermal break technology, stainless steel friction hinges, and multi‑point locking hardware. We offer comprehensive customization including double/triple glazing, Low‑E coatings, any RAL color, and restrictors for high‑rise safety. Every product undergoes rigorous ISO‑certified quality management. For detailed quotations, pricelist information, or to discuss your specific project requirements, please contact us today at kristin@haolvwindows.com.
