Bi Fold Doors External Aluminium The Ultimate Solution for Seamless Indoor-Outdoor Living

Imagine opening an entire wall of your home to the garden, creating a wide, unobstructed passage that merges interior and exterior spaces. Bi fold doors external aluminium make this possible. Also known as folding sliding doors, they consist of multiple panels hinged together that fold and stack neatly to one or both sides of the opening. This design offers maximum glass area, exceptional durability, and smooth operation. This comprehensive guide explores everything you need to know about external aluminium bi fold doors.

Understanding Bi Fold Doors External Aluminium

Bi fold doors external aluminium are door systems where several narrow panels (typically 400mm to 900mm wide) are connected by vertical hinges. The entire assembly runs on a top‑hung or bottom‑rolling track with rollers that allow the panels to fold and slide. When opened, the panels concertina against each other, stacking compactly at one or both ends, clearing up to 90% of the total opening width.

The frames and panels are extruded from high‑grade 6063‑T5 or 6061‑T6 aluminium alloy, known for its strength, corrosion resistance, and slim profile capabilities. For external applications, bi fold doors external aluminium are equipped with thermal break technology – a polyamide strip between interior and exterior aluminium sections – to prevent heat transfer and condensation. This makes them suitable for all climates.

The hardware system is critical. High‑quality bi fold doors use stainless steel rollers, heavy‑duty hinges, and multi‑point locking mechanisms. A continuous EPDM or silicone gasket around the perimeter ensures weather‑tightness. The doors can be designed to open inward or outward, depending on space and preference.

Key Advantages of Bi Fold Doors External Aluminium

Maximum opening width is the defining advantage. Unlike sliding doors that leave one panel fixed, bi fold doors can stack all panels to one side, opening up to 90% of the wall. This creates a true indoor‑outdoor flow, perfect for entertaining, dining, or simply enjoying the garden.

Unobstructed views and natural light. The slim aluminium frames maximise glass area, providing panoramic views and flooding interiors with daylight. With double or triple glazing, they also offer excellent energy efficiency.

Exceptional durability and low maintenance. Aluminium does not rust, rot, warp, or swell. Powder‑coated finishes (any RAL colour) resist UV fading and require only occasional cleaning with mild soap and water. They are ideal for coastal and humid climates.

Smooth, quiet folding operation. Stainless steel rollers and precision‑engineered hinges allow even heavy double‑glazed panels to fold effortlessly. High‑quality systems are rated for 20,000+ cycles.

Enhanced security. Multi‑point locking systems (typically 3 to 7 points) engage the panels to the header, threshold, and each other. Laminated or tempered glass options add further protection. The hinges and locking hardware are designed to resist tampering.

Energy efficiency. Thermal break profiles plus double or triple glazing with Low‑E coatings and argon gas fill achieve U‑values as low as 1.2–1.8 W/m²K, comparable to fixed windows.

Versatile configurations. Bi fold doors can be designed to stack on the left, right, or both sides (bi‑parting). They can also be configured with a traffic door – a single panel that opens independently for quick access.

Glass and Hardware Options for Bi Fold Doors External Aluminium

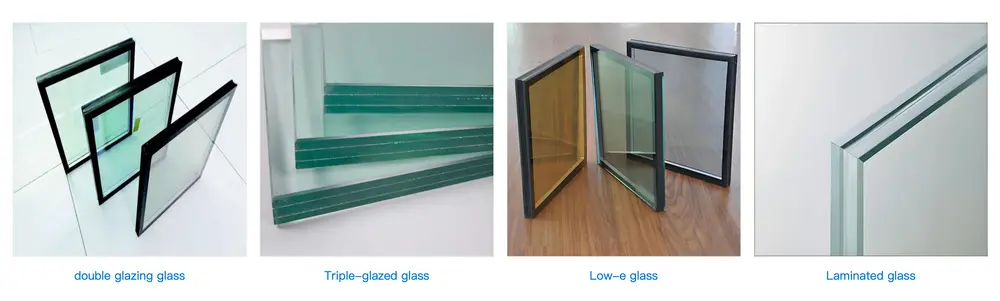

Glass configurations:

• Double glazing (5mm+20A+5mm): Standard Low‑E + argon, U‑value ~1.6 W/m²K.

• Triple glazing (5mm+12A+5mm+12A+5mm): For extreme climates or noise reduction.

• Laminated glass: Security and sound reduction; holds together if broken.

• Tempered glass: Safety glazing required in many codes.

• Tinted or reflective glass: Reduces solar heat gain.

Hardware specifications:

• Stainless steel rollers: Top‑hung or bottom‑rolling; adjustable.

• Multi‑point locking: 3–7 locking points, stainless steel components.

• Hinges: Stainless steel piano or continuous hinges.

• Handles: Flush or pull handles in various finishes (matte black, brushed stainless, etc.).

• Thresholds: Low‑profile or flush; thermal break options available.

• Insect screens: Retractable screens that follow the folding motion.

Applications for Bi Fold Doors External Aluminium

Residential homes – patios, gardens, terraces, balconies, and sunrooms. They transform living spaces for entertaining and family gatherings.

Commercial properties – restaurants, cafes, hotels, and retail stores use them to create open‑air dining areas and inviting storefronts.

High‑rise apartments – with restrictors, they can be used on balconies to provide wide views while complying with safety codes.

Coastal and wind‑prone areas – aluminium’s corrosion resistance and structural strength make them suitable for harsh environments.

​​​​​​​

Frequently Asked Questions About Bi Fold Doors External Aluminium

Q: How much space do bi fold doors need when fully open?
A: The stacked panels typically occupy 100–200mm of depth (depending on panel width and number) from the frame on the stacking side. The rest of the opening becomes completely clear – up to 90% of the wall width.

Q: Are bi fold doors secure?
A: Yes. Modern bi fold doors feature multi‑point locking systems that secure each panel to the frame and adjacent panels. Hinges are designed to resist tampering, and laminated glass adds break‑in resistance.

Q: Can bi fold doors be installed in coastal areas?
A: Absolutely. Aluminium is highly resistant to salt spray corrosion, especially with marine‑grade powder coating. Use stainless steel hardware for maximum durability.

Q: How do I maintain external aluminium bi fold doors?
A: Clean frames and glass with mild soap and water. Lubricate rollers and tracks annually with silicone spray. Inspect weather seals for damage. Powder‑coated finishes never need painting.

Q: What is the typical lifespan?
A: 30–50 years for the aluminium frame. Rollers and seals may need replacement after 15–20 years. With proper care, they will serve reliably for decades.

Installation and Long‑Term Value

Professional installation is essential. The header track must be perfectly level and securely anchored. The floor track (if bottom‑rolling) must be accurately positioned. Proper flashing and sealing prevent water infiltration. Adjustments to rollers and hinges ensure smooth folding.

The long‑term value includes increased home value, energy savings, low maintenance, and a dramatic improvement in lifestyle by connecting indoor and outdoor spaces.

Conclusion

Bi fold doors external aluminium offer the widest possible opening, stunning views, and exceptional durability. With thermal break technology, multi‑point security, and smooth folding action, they are the premium choice for homeowners and architects seeking to blur the line between inside and outside.

Cooperate With Hunan Haolv Building Materials Co., Ltd.

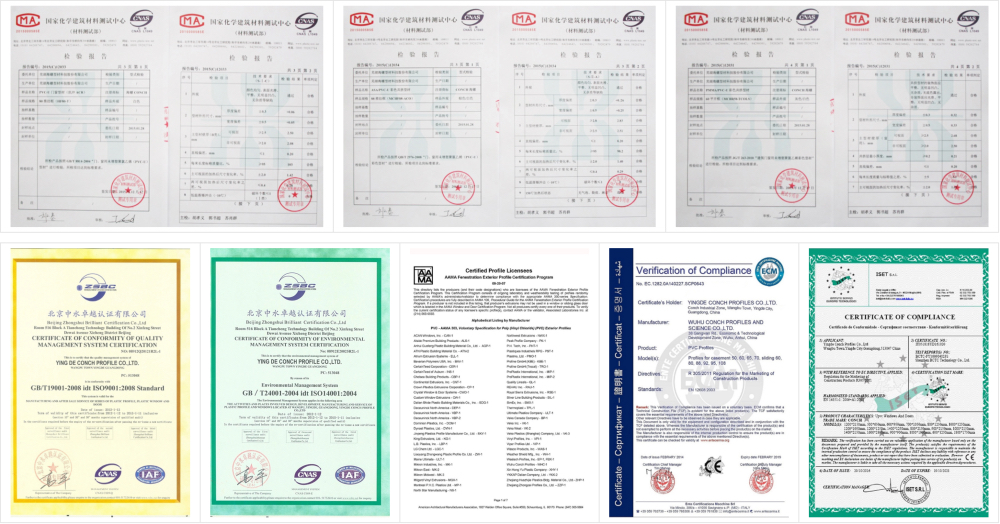

As a leading manufacturer of high‑performance aluminium door and window systems, Hunan Haolv Building Materials Co., Ltd. brings over eighteen years of specialized expertise to the production of bi fold doors external aluminium. Our bi fold doors are crafted from premium 6063‑T5 aluminium alloy with thermal break technology, stainless steel rollers, and multi‑point locking hardware. We offer comprehensive customization including double/triple glazing, Low‑E coatings, any RAL color, low‑profile thresholds, and integrated insect screens. Every product undergoes rigorous ISO‑certified quality management. For detailed quotations, pricelist information, or to discuss your specific project requirements, please contact us today at kristin@haolvwindows.com.
