Flush Casement UPVC Windows Are They the Ultimate Choice for Modern Minimalist Homes

When closed, a traditional casement window has its sash standing proud of the frame. This creates visible shadow lines and a stepped appearance that some homeowners find less than ideal for contemporary architecture. Flush casement UPVC windows solve this aesthetic challenge. When closed, the sash sits perfectly flush with the outer frame, creating a smooth, flat exterior surface that delivers a clean, minimalist look. This comprehensive guide explores the design, benefits, and selection criteria for flush casement UPVC windows.

Understanding Flush Casement UPVC Windows

A flush casement UPVC window is a hinged window where the sash, when closed, aligns exactly with the outer edge of the frame. This is achieved through a specially designed hinge system and frame geometry that allows the sash to tuck into the frame rather than sitting on top of it. The result is a seamless exterior appearance with no protruding elements.

The frame and sash are extruded from multi-chambered UPVC profiles with steel reinforcement for structural rigidity. The flush design requires precision engineering to ensure that the sash seals correctly against the frame despite the reduced overlap. High-quality flush casement UPVC windows use concealed hinges and integrated hardware to maintain the clean aesthetic.

The operating mechanism is typically side-hung outward opening, using friction hinges that allow the sash to swing open. When closed, multi-point locking systems (3 to 7 locking points) draw the sash tight against the frame, compressing continuous EPDM gaskets to create an airtight and watertight seal.

Key Advantages of Flush Casement UPVC Windows

Clean minimalist aesthetics are the defining feature of flush casement windows. The flush exterior surface eliminates shadow lines and creates a smooth facade that complements contemporary architecture. This design is particularly popular for modern homes, apartment buildings, and commercial projects where a sleek appearance is desired.

Enhanced security results from the flush design. With no protruding sash edges, there are no leverage points for forced entry. The multi-point locking system engages along the entire perimeter, and the concealed hinges are inaccessible when the window is closed. Flush casement windows meet or exceed PAS 24 security standards.

Excellent thermal insulation is achieved through multi-chambered UPVC profiles and double or triple glazing. The flush design does not compromise the thermal envelope; in fact, the tight seal created by the compression gaskets reduces air infiltration. U-values of 1.1 to 1.6 W/m²K are standard with double glazing.

Superior weather sealing comes from the compression seal design. Unlike sliding windows where seals can wear unevenly, the flush casement’s gasket is compressed uniformly when locked. This achieves air infiltration ratings of 0.05 cfm/ft² or lower and water resistance to 700 Pa or higher.

Low maintenance is inherent to UPVC construction. The frames never need painting, do not rot or warp, and resist UV degradation. The flush design means no ledges where dirt can accumulate, making cleaning easier. Occasional washing with mild soap and water keeps them looking new.

Versatile design options include outward or inward opening configurations. Flush casement windows can be specified in any RAL color, woodgrain finishes, and with various glass options including triple glazing, laminated glass, or decorative glass.

Glass and Hardware Options for Flush Casement UPVC Windows

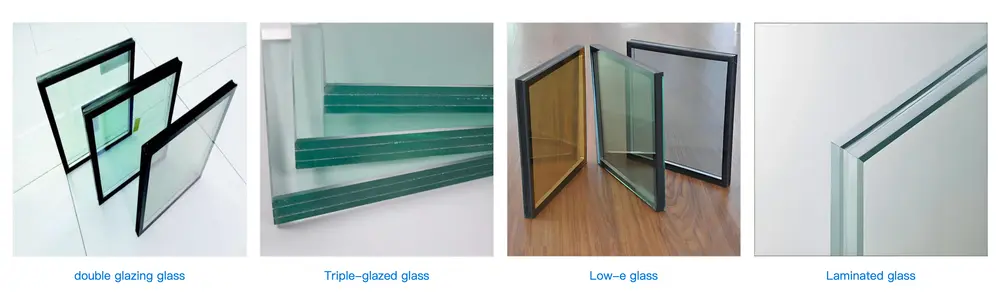

Glass configurations:

Double glazing (5mm+20A+5mm): Standard, with Low-E coating and argon gas fill.

Triple glazing (5mm+12A+5mm+12A+5mm): For extreme climates or noise-sensitive locations.

Laminated glass: For security and sound reduction.

Tempered glass: Safety glazing required in many codes.

Hardware specifications:

Concealed friction hinges: Hidden from view; rated for 20,000+ cycles.

Multi-point locking: 3 to 7 locking points with stainless steel components.

Flush handles: Low-profile or folding handles that lie flat against the sash.

Integrated restrictors: For child safety or high-rise applications.

Concealed drainage: Channels hidden within the frame to maintain the clean exterior.

Applications for Flush Casement UPVC Windows

Contemporary residential architecture uses flush casement windows in new-build homes, extensions, and renovations where a minimalist aesthetic is desired.

Apartment buildings and condominiums specify flush casement windows for their clean facade appearance and compliance with high-rise safety codes.

Commercial projects including offices, hotels, and retail spaces benefit from the professional, streamlined appearance.

Passive house and low-energy buildings achieve certification using high-performance flush casement windows with triple glazing and thermal break profiles.

Frequently Asked Questions About Flush Casement UPVC Windows

Q: How do flush casement windows differ from standard casement windows?
A: Standard casement windows have the sash sitting on top of the frame (proud), creating a stepped appearance and visible shadow lines. Flush casement windows have the sash aligned with the outer frame surface when closed, creating a smooth, flat exterior.

Q: Are flush casement windows more expensive than standard casement windows?
A: Yes, typically 15 to 30 percent more expensive due to the more complex frame geometry, concealed hinge systems, and precision engineering required. The aesthetic and security benefits justify the premium for many projects.

Q: Do flush casement windows have the same energy efficiency as standard casements?
A: Yes, and often better. The compression seal design achieves excellent air tightness. With double or triple glazing and Low-E coatings, flush casement windows achieve U-values comparable to or better than standard casements.

Q: Can flush casement windows be installed in high-rise buildings?
A: Yes. They meet safety codes because the outward opening sash can be restricted to 100mm or less. Many flush casement systems are tested to withstand wind pressures of DP-50 (2,400 Pa) or higher.

Q: What colors are available for flush casement UPVC windows?
A: Any RAL color is available through co-extrusion or foil lamination. Popular colors include white, anthracite gray, black, cream, and woodgrain finishes like oak and walnut. Dark colors require UV-stabilized capstocks to prevent heat absorption issues.

Installation Considerations

Professional installation is critical for flush casement UPVC windows to achieve the flush aesthetic. The frame must be perfectly square and level. The hinges must be precisely aligned to ensure the sash closes flush across its entire height. Any misalignment will be visible on the exterior. Proper sealing and flashing prevent water infiltration behind the frame.

Conclusion

Flush casement UPVC windows offer a winning combination of minimalist aesthetics, enhanced security, excellent thermal performance, and low maintenance. Their flush exterior surface creates a clean, contemporary look that standard casement windows cannot match. For architects and homeowners seeking a sleek, modern window solution without compromising performance, flush casement UPVC windows are an excellent choice.
