How Aluminum Top Hung Windows Improve Ventilation and Security in Modern Buildings

When architects and homeowners seek a window that combines reliable ventilation with robust security, the aluminum top hung window often emerges as the ideal solution. Unlike casement windows that swing outward from the side, a top hung window hinges at the top and opens outward from the bottom. This unique design allows fresh air to enter while directing rain away from the interior, making it exceptionally practical for multi-story buildings, rainy climates, and commercial applications. This comprehensive guide explores the design features, performance advantages, and selection criteria for aluminum top hung windows.

Understanding the Aluminum Top Hung Window

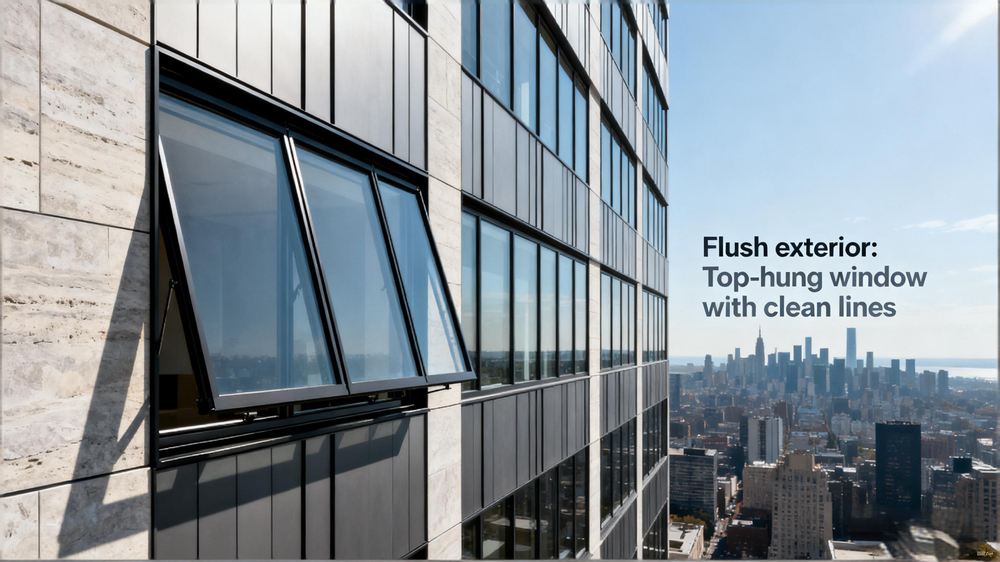

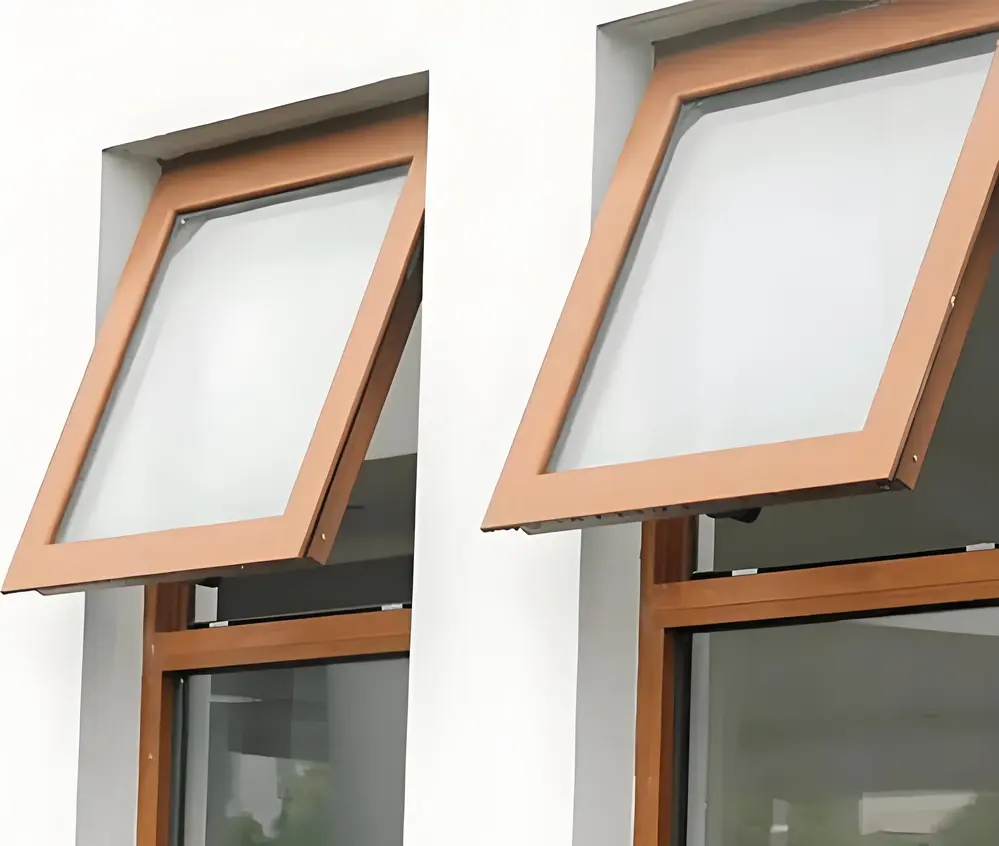

An aluminum top hung window features a sash that is hinged along its top edge. The bottom of the sash swings outward when opened, typically operated by a crank mechanism or push-out friction stays. The opening angle can be controlled precisely, allowing anything from a small ventilation gap to a fully opened position.

The frame is extruded from high-grade aluminum alloy, typically 6063-T5 or 6061-T6, known for its excellent strength-to-weight ratio and corrosion resistance. Modern aluminum top hung windows incorporate thermal break technology—a polyamide insulating strip inserted between the interior and exterior aluminum sections. This innovation dramatically reduces heat transfer, making these windows suitable for all climates while preserving the slim, sleek aesthetic of aluminum.

The hardware system is critical to performance. High-quality top hung windows use stainless steel friction hinges or scissor arms that allow smooth operation and hold the sash securely at any opening angle. Multi-point locking mechanisms engage along the bottom and sides of the sash, creating a secure seal when closed. The top-hinged design means that even if the locking mechanism fails, the sash remains attached at the top hinge, providing an additional safety measure.

Key Advantages of Aluminum Top Hung Windows

Superior weather protection is the most distinctive advantage of the aluminum top hung window. When open, the sash acts as a canopy, directing rain away from the opening. This allows ventilation during light rain—something side-hung or sliding windows cannot safely provide. The design is particularly valued in regions with frequent rainfall or in high-rise buildings where wind-driven rain is common.

Controlled and safe ventilation is another hallmark. Because the sash opens outward from the bottom, the gap is at the top of the window frame. Warm air, which naturally rises, escapes through this top opening while cooler fresh air enters from lower areas of the room. This creates gentle, draft-free ventilation. The design also prevents accidental falls, making aluminum top hung windowsideal for upper floors, children‘s rooms, and buildings where safety codes restrict large openings.

Enhanced security is inherent to the top hung design. When closed, the sash is locked at multiple points along the bottom and sides. Unlike side-hung windows where the hinge side might be vulnerable, the top hung configuration distributes locking points effectively. The sash cannot be removed from the hinges when closed and locked. Many models also feature hinge-side security pins that prevent tampering.

Excellent thermal insulation is achieved through thermal break profiles and double or triple glazing. Aluminum frames with 20mm to 30mm polyamide thermal breaks achieve U-values as low as 1.2 to 1.8 W/m²K. When combined with Low-E coated double glazing and argon gas fill, these windows meet stringent energy codes for residential and commercial buildings.

Space efficiency is a practical benefit. Because the sash swings outward, it does not consume interior space. This makes top hung windows ideal for installation above kitchen counters, in narrow hallways, or in rooms where furniture placement might obstruct inward-opening windows.

Acoustic performance benefits from the tight compression seal. When closed, the sash presses uniformly against the frame gasket, creating an excellent barrier against noise transmission. Double or triple glazing further enhances sound reduction.

Glass and Hardware Options for Aluminum Top Hung Windows

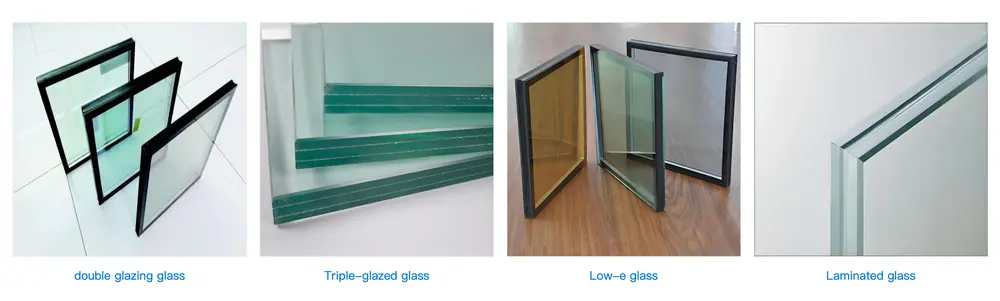

Glass configurations significantly impact performance:

• Double glazing (5mm+20A+5mm): Standard for most applications, with Low-E coating and argon gas fill.

• Triple glazing (5mm+12A+5mm+12A+5mm): For extreme climates or noise-sensitive locations.

• Laminated glass: For security and sound reduction; holds together if broken.

• Tempered glass: Safety glazing required in many building codes.

• Tinted or reflective glass: Reduces solar heat gain and glare.

Hardware specifications distinguish premium top hung windows:

• Stainless steel friction hinges: Rated for 20,000+ cycles; adjustable for tension.

• Crank operators: Smooth, corrosion-resistant mechanisms; folding handles available.

• Multi-point locking: 2 to 5 locking points with stainless steel components.

• Restrictors: Limit opening angles for child safety or high-wind conditions.

• Integrated insect screens: Retractable screens that allow ventilation without pests.

Applications for Aluminum Top Hung Windows

Residential buildings use top hung windows in bedrooms, kitchens, bathrooms, and stairwells. Their rain-resistant ventilation is particularly valuable in bathrooms where humidity needs to be exhausted even during wet weather.

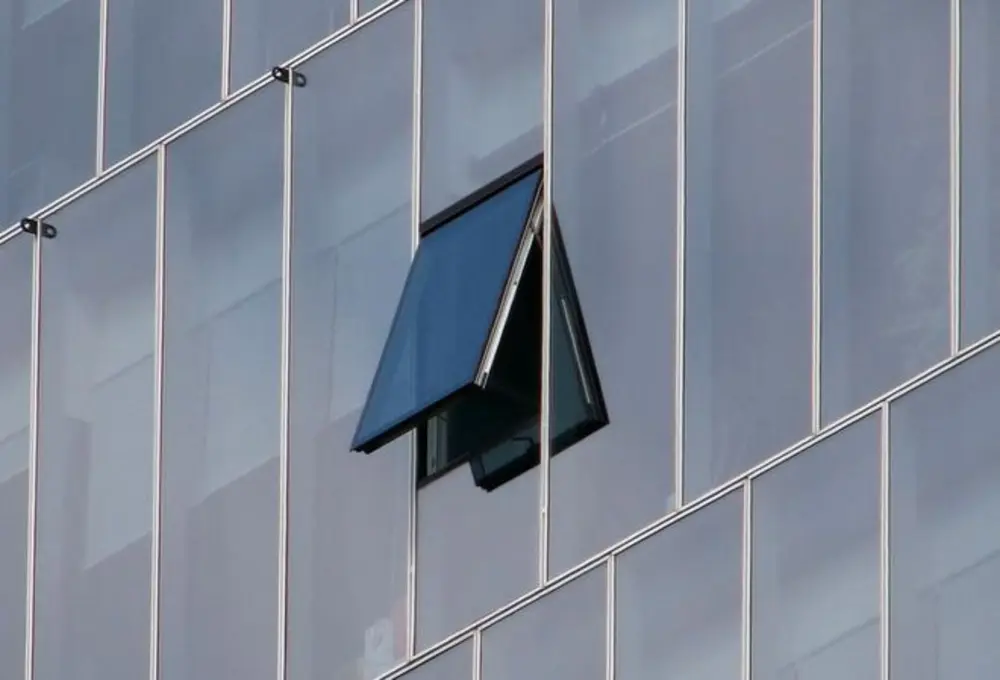

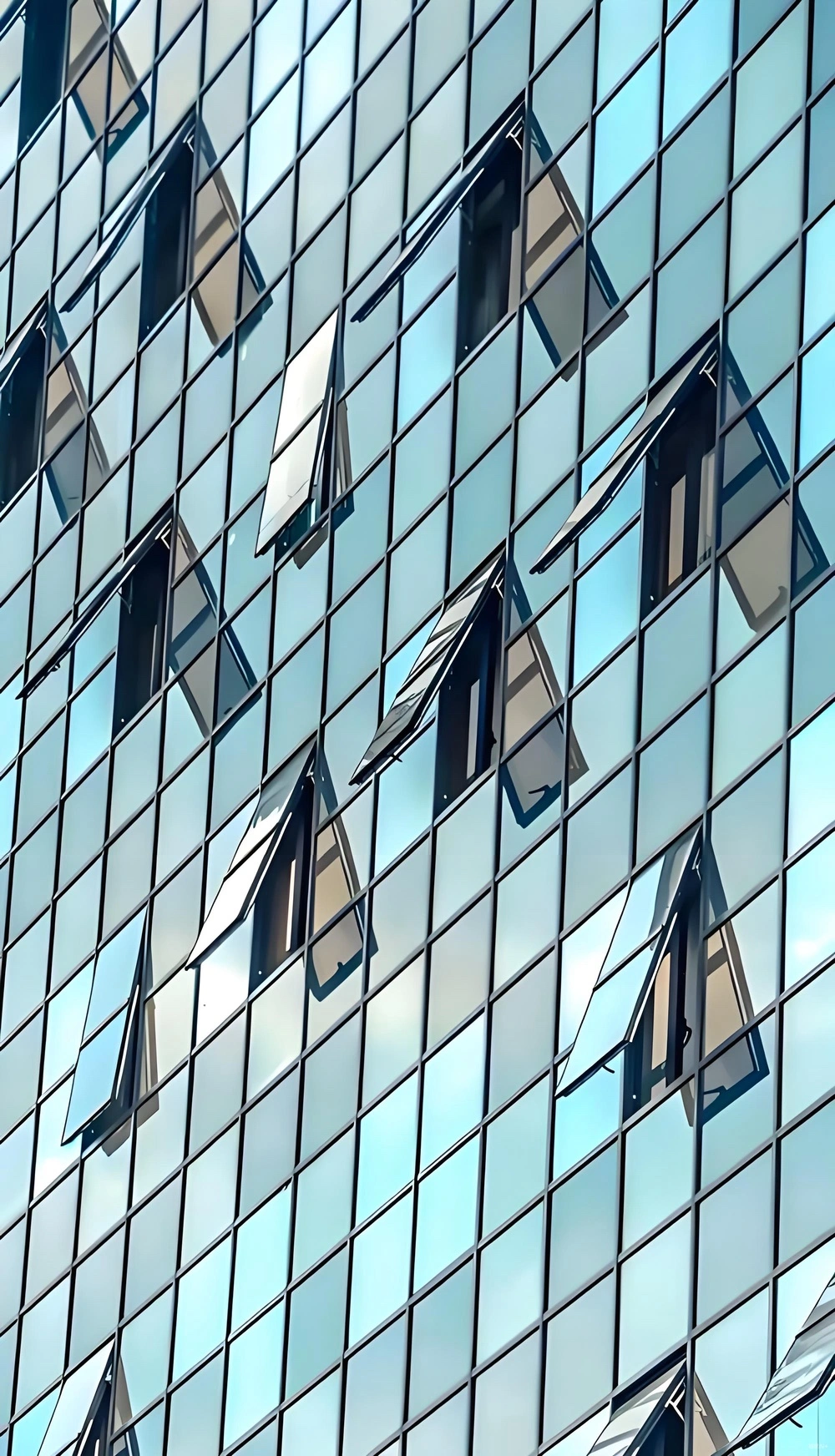

High-rise apartments and condominiums specify top hung windows because they comply with safety codes restricting windows that open more than 100mm. The controlled opening prevents falls while providing fresh air.

Commercial and institutional buildings including schools, hospitals, and offices benefit from the secure, controlled ventilation. The outward opening design does not obstruct interior space or walkways.

Industrial and warehouse applications use large top hung windows for natural ventilation in high-bay buildings. The design allows warm air to escape at the top while drawing cooler air from lower openings.

Frequently Asked Questions About Aluminum Top Hung Windows

Q: Can aluminum top hung windows be used in high-rise buildings?
A: Yes, they are ideal for high-rise applications. The top hung design allows limited opening angles (typically 100mm to 150mm at the bottom) that comply with safety codes while still providing effective ventilation.

Q: How do top hung windows compare to awning windows?
A: Top hung and awning windows are very similar. Some manufacturers use the terms interchangeably. The distinction is that top hung typically refers to a sash that swings outward from the bottom, while awning windows may have the hinge at the top but often use a different hardware configuration. Both offer excellent rain protection.

Q: Are aluminum top hung windows energy efficient?
A: Yes, when equipped with thermal break profiles and double glazing. The compression seal when closed is excellent, achieving air tightness comparable to casement windows.

Q: Can I install an insect screen on a top hung window?
A: Yes, retractable or removable insect screens are available. Because the sash opens outward, screens are typically mounted on the interior side and can be designed to allow full operation of the window.

Q: What is the typical lifespan of an aluminum top hung window?
A: With quality materials and proper installation, 30 to 50 years is realistic for the aluminum frame. Hardware may need replacement after 15-20 years, but the frame itself remains durable.

Installation and Long-Term Value

Professional installation is essential for aluminum top hung windows to perform correctly. The frame must be square, level, and properly anchored. The hinges must be aligned to ensure smooth operation and uniform gasket compression. Proper flashing and sealing prevent water infiltration around the frame.

The long-term value of investing in quality aluminum top hung windows includes energy savings, enhanced security, improved comfort, and increased property value. With minimal maintenance—periodic cleaning and annual lubrication of moving parts—these windows will serve reliably for decades.

Conclusion

Aluminum top hung windows offer a unique combination of rain-resistant ventilation, security, thermal efficiency, and space-saving operation. Their design makes them particularly suitable for high-rise buildings, rainy climates, and applications where safety and controlled airflow are priorities. With modern thermal break technology and high-performance glazing, these windows deliver comfort and durability for any project.

Cooperate With Hunan Haolv Building Materials Co., Ltd.

As a leading manufacturer of high-performance aluminum window systems, Hunan Haolv Building Materials Co., Ltd. brings over eighteen years of specialized expertise to the production of aluminum top hung windows. Our top hung windows are crafted from premium 6063-T5 aluminum alloy with thermal break technology, stainless steel friction hinges, and multi-point locking hardware. We offer comprehensive customization services including double or triple glazing, Low-E coatings, any RAL color finish, and integrated insect screens. Every product undergoes rigorous ISO-certified quality management from raw material selection through final inspection. For detailed quotations, pricelist information, or to discuss your specific project requirements, please contact us today at kristin@haolvwindows.com.
