UPVC Tilt Turn Windows The Ultimate in Ventilation Flexibility and Security

What if one window could offer two different opening modes? That is the promise of the UPVC tilt turn window. This ingenious European design combines a tilt position for secure, rain-safe ventilation and a turn position for full opening and easy cleaning. With a single handle movement, you can switch between modes, making tilt turn windows one of the most versatile options available. This comprehensive guide explores the design, benefits, and selection criteria for UPVC tilt turn windows.

​

Understanding UPVC Tilt Turn Windows

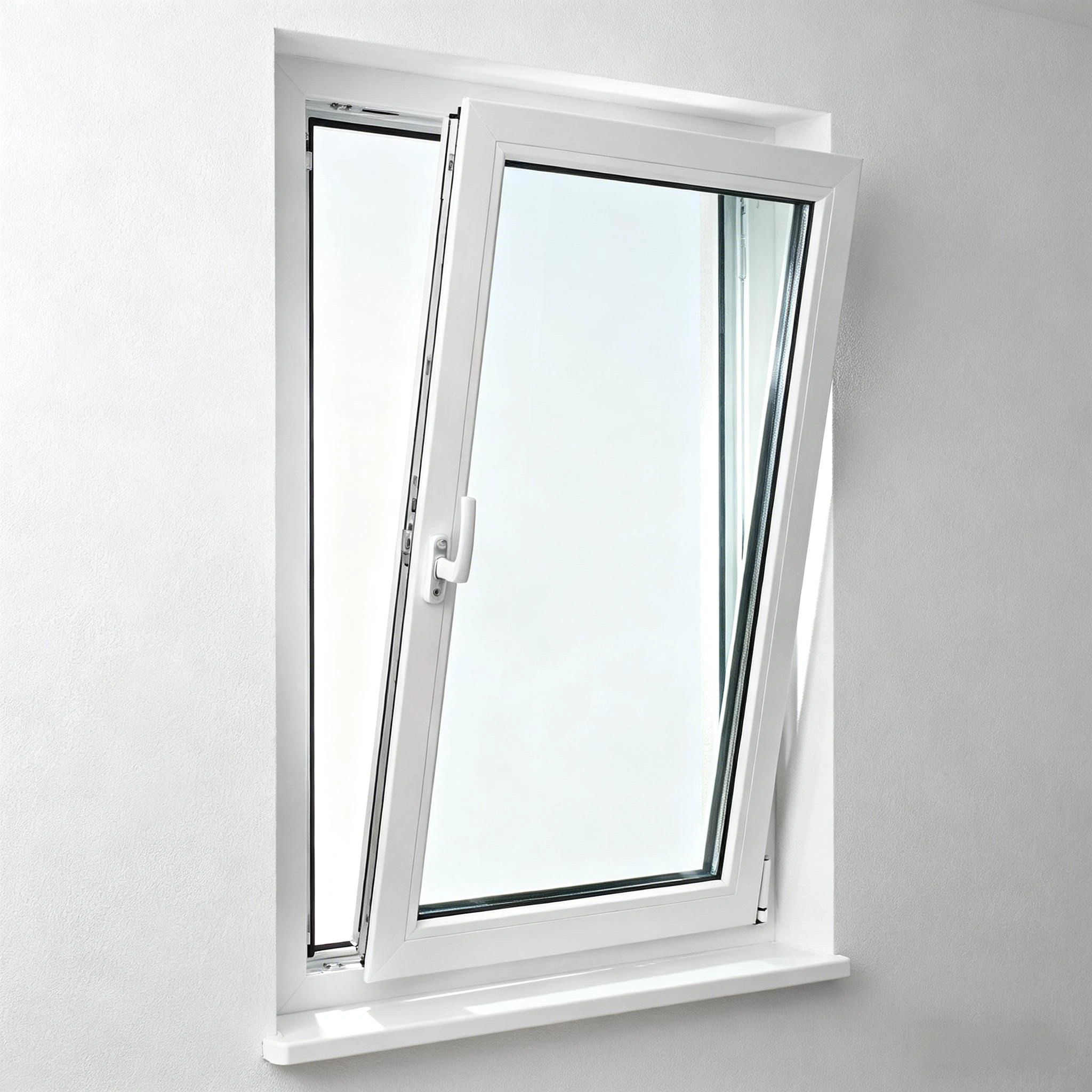

A UPVC tilt turn window features a multi-point locking mechanism that allows the sash to operate in two distinct modes. When the handle is rotated 90 degrees to the horizontal position, the sash tilts inward from the top, creating a gap at the top for secure ventilation. When the handle is rotated 180 degrees to the vertical downward position, the sash swings inward like a casement window, providing full access for cleaning and maximum airflow.

The frame and sash are extruded from multi-chambered UPVC profiles with steel reinforcement for structural rigidity. The hardware system is the heart of the tilt turn window, incorporating precision-engineered gears, hinges, and locking pins that operate through a single central handle. High-quality UPVC tilt turn windows use stainless steel components rated for 20,000+ cycles.

The tilt mode is particularly valuable for ventilation during rain, as the top-hinged opening directs water away from the interior. The turn mode allows the sash to open fully inward, making exterior glass cleaning possible from inside the building—a significant advantage for upper floors.

Key Advantages of UPVC Tilt Turn Windows

​

Two ventilation modes offer unparalleled flexibility. In tilt mode, the window provides continuous background ventilation without compromising security. The gap is too small for intruders and prevents rain entry. In turn mode, the window opens fully for maximum airflow, ideal for quickly airing out a room or for cleaning.

Enhanced security is inherent to the tilt turn design. The multi-point locking mechanism secures the sash to the frame at multiple points along all four sides. In tilt mode, the sash is locked at the sides and bottom; in turn mode, it is locked at the top and sides. This makes forced entry extremely difficult. The central handle can be locked with a key on many models.

Safe ventilation during rain is a standout feature. In tilt mode, the opening is at the top, so rain cannot blow directly into the room. You can leave windows open during showers without worrying about water damage to floors or furniture. This is particularly valuable in climates with frequent rain.

Easy cleaning from inside is possible because the window opens fully inward in turn mode. You can clean the exterior glass surface from inside your home—no ladders, no leaning out of windows. This is a major safety advantage for upper-floor windows and a convenience for all homes.

Excellent thermal and acoustic insulation comes from the multi-chambered UPVC profiles and double or triple glazing. The compression seal design achieves air infiltration ratings as low as 0.02 cfm/ft². U-values of 1.1 to 1.6 W/m²K are standard with double glazing.

Space-saving operation is notable. Unlike outward-opening windows that require exterior clearance, tilt turn windows open inward. However, they require interior clearance for the turn mode. The tilt mode uses minimal interior space.

Child safety is enhanced because the tilt mode provides ventilation while preventing falls. The opening gap in tilt mode is typically 100mm to 150mm, too small for a child to pass through. Many models also feature restrictors for the turn mode.

Glass and Hardware Options for UPVC Tilt Turn Windows

​

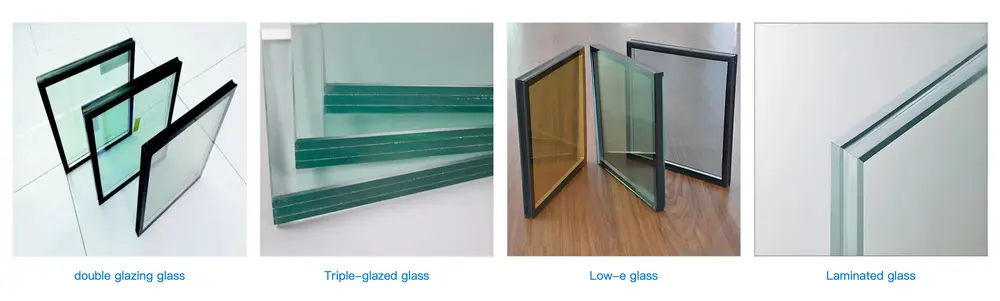

Glass configurations:

Double glazing (5mm+20A+5mm): Standard, with Low-E coating and argon gas fill.

Triple glazing (5mm+12A+5mm+12A+5mm): For extreme climates or noise-sensitive locations.

Laminated glass: For security and sound reduction.

Tempered glass: Safety glazing required in many codes.

Hardware specifications:

Multi-point locking: 5 to 9 locking points; stainless steel gears and pins.

Central handle: Ergonomic; key-locking option available.

Concealed hinges: Stainless steel; adjustable for alignment.

Restrictors: For turn mode to limit opening angle for safety.

Integrated insect screens: Retractable screens that work with tilt and turn modes.

Applications for UPVC Tilt Turn Windows

​

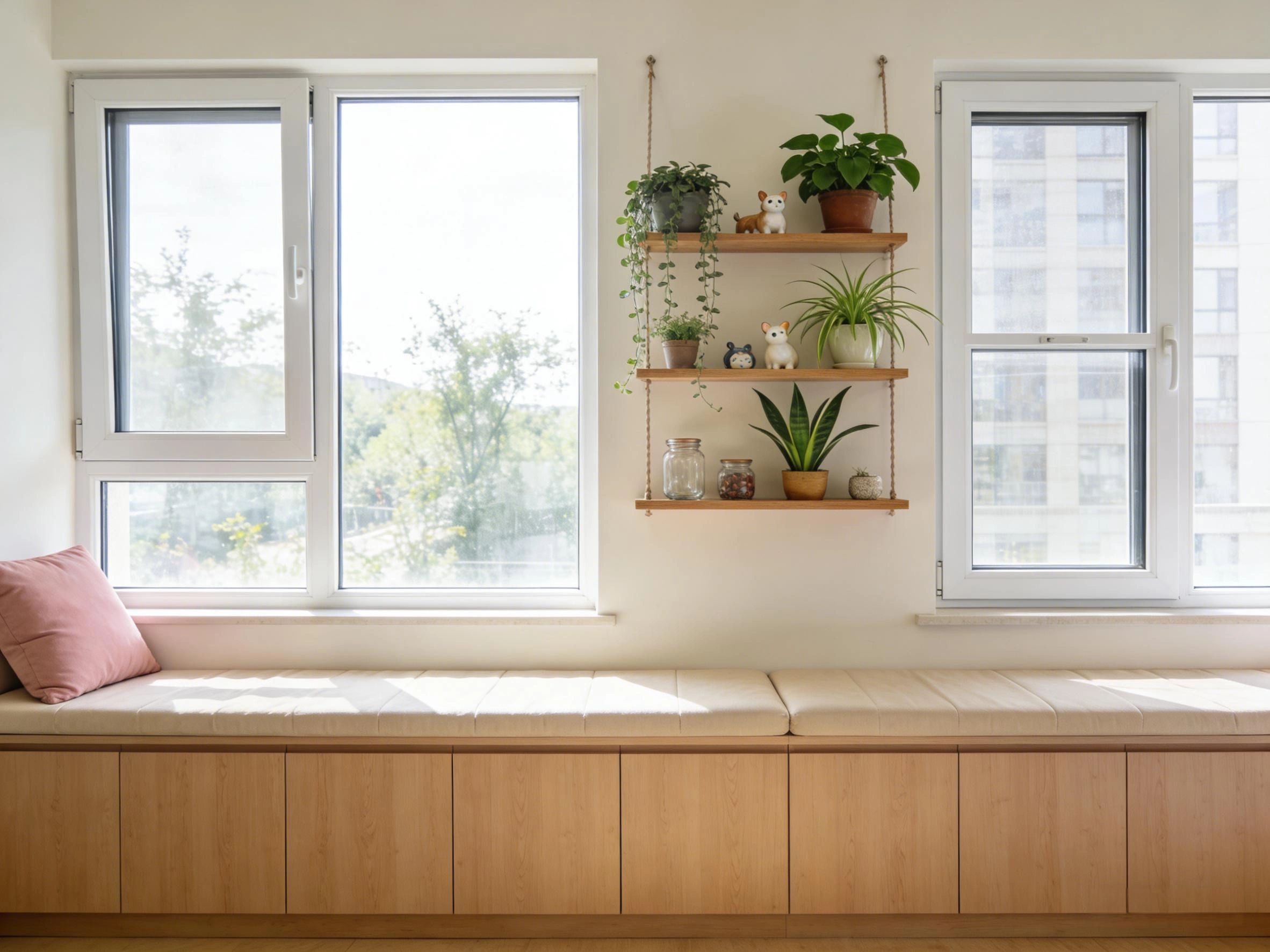

Residential homes use tilt turn windows in bedrooms (night ventilation), living rooms, kitchens, and bathrooms. The tilt mode is ideal for overnight ventilation without security or rain concerns.

Apartments and high-rise buildings benefit from the ability to clean exterior glass from inside. The tilt mode provides safe ventilation without fall risk. Many building codes prefer inward-opening windows for upper floors.

Passive house and low-energy buildings often specify tilt turn windows because of their excellent air tightness and thermal performance.

Commercial applications including offices, hotels, and healthcare facilities use tilt turn windows for controlled ventilation and easy maintenance.

Frequently Asked Questions About UPVC Tilt Turn Windows

Q: Do tilt turn windows require more interior space than casement windows?
A: In turn mode, the sash swings inward, so you need clearance for the full opening. This means furniture cannot be placed directly against the window if you plan to use turn mode. In tilt mode, only a small gap is needed at the top, so furniture placement is less restricted.

Q: Are tilt turn windows more expensive than standard casement windows?
A: Yes, typically 20 to 40 percent more expensive due to the complex multi-point hardware system. The additional cost is justified by the dual-mode functionality and cleaning convenience.

Q: Can tilt turn windows be used in high-rise buildings?
A: Yes, they are well-suited for high-rise applications. The inward opening design complies with safety codes that restrict outward-opening windows. The tilt mode provides safe ventilation without fall risk.

Q: How do I clean the exterior glass of a tilt turn window?
A: Simply turn the handle to the 180-degree position (turn mode) and pull the sash fully inward. The entire exterior glass surface becomes accessible from inside the room. No ladder or exterior access is required.

Q: Are UPVC tilt turn windows energy efficient?
A: Yes, very much so. The multi-point locking system creates a compression seal that achieves excellent air tightness. With double or triple glazing and Low-E coatings, they achieve U-values comparable to or better than fixed windows.

Installation Considerations

Professional installation is essential for UPVC tilt turn windows to operate correctly. The frame must be perfectly square and level. The hardware must be precisely adjusted to ensure smooth operation and proper sealing. The handle mechanism must be correctly calibrated. Improper installation can cause binding, poor sealing, or difficulty switching between modes.

Conclusion

UPVC tilt turn windows offer unmatched ventilation flexibility, combining secure tilt ventilation with full-turn access for cleaning and maximum airflow. Their excellent thermal performance, enhanced security, and easy maintenance make them a superior choice for modern homes, apartments, and commercial buildings. The dual-mode design adapts to changing needs throughout the day and year.

Cooperate With Hunan Haolv Building Materials Co., Ltd.

​

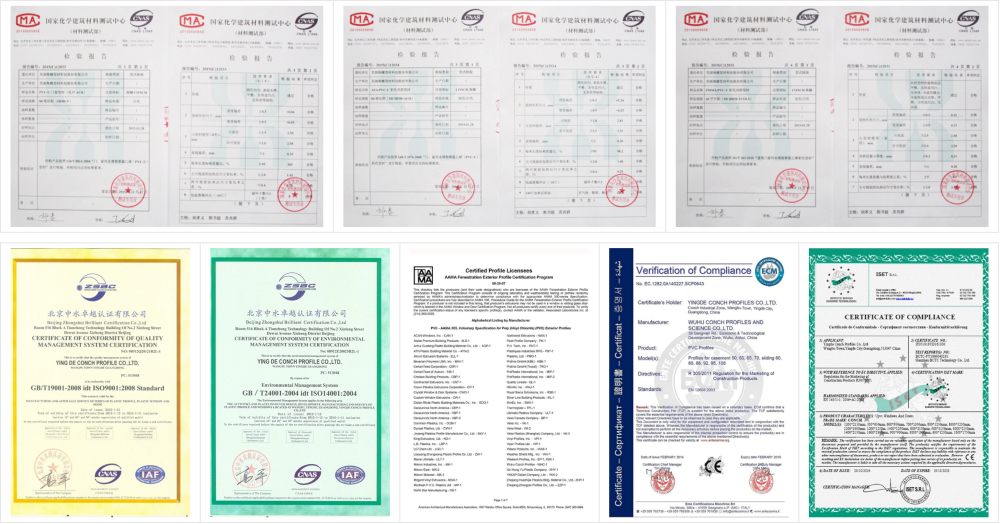

As a leading manufacturer of high-performance UPVC window systems, Hunan Haolv Building Materials Co., Ltd. brings over eighteen years of specialized expertise to the production of UPVC tilt turn windows. Our tilt turn windows feature multi-chamber profiles, precision stainless steel hardware with 7 locking points, and double or triple glazing. We offer any RAL color finish, woodgrain laminates, and key-locking handle options. Every product undergoes rigorous ISO-certified quality management. For detailed quotations, pricelist information, or to discuss your specific project requirements, please contact us today at kristin@haolvwindows.com.
