Vinyl Window Profiles What Makes Them the Backbone of Modern Energy-Efficient Windows

Behind every high-performing vinyl window lies a critical component: the profile. Vinyl window profiles—also known as UPVC or PVCU profiles—are the extruded shapes that form frames, sashes, and thresholds. The quality, design, and material composition of these profiles determine the window‘s energy efficiency, durability, security, and appearance. This comprehensive guide explores the engineering, materials, and selection criteria for vinyl window profiles.

Understanding Vinyl Window Profiles

Vinyl window profiles are manufactured through an extrusion process where heated vinyl compound (unplasticized polyvinyl chloride, or UPVC) is forced through a steel die to create specific cross-sectional shapes. The raw material is virgin vinyl compounded with additives including heat stabilizers, UV stabilizers, impact modifiers, processing aids, and pigments (typically titanium dioxide for white profiles).

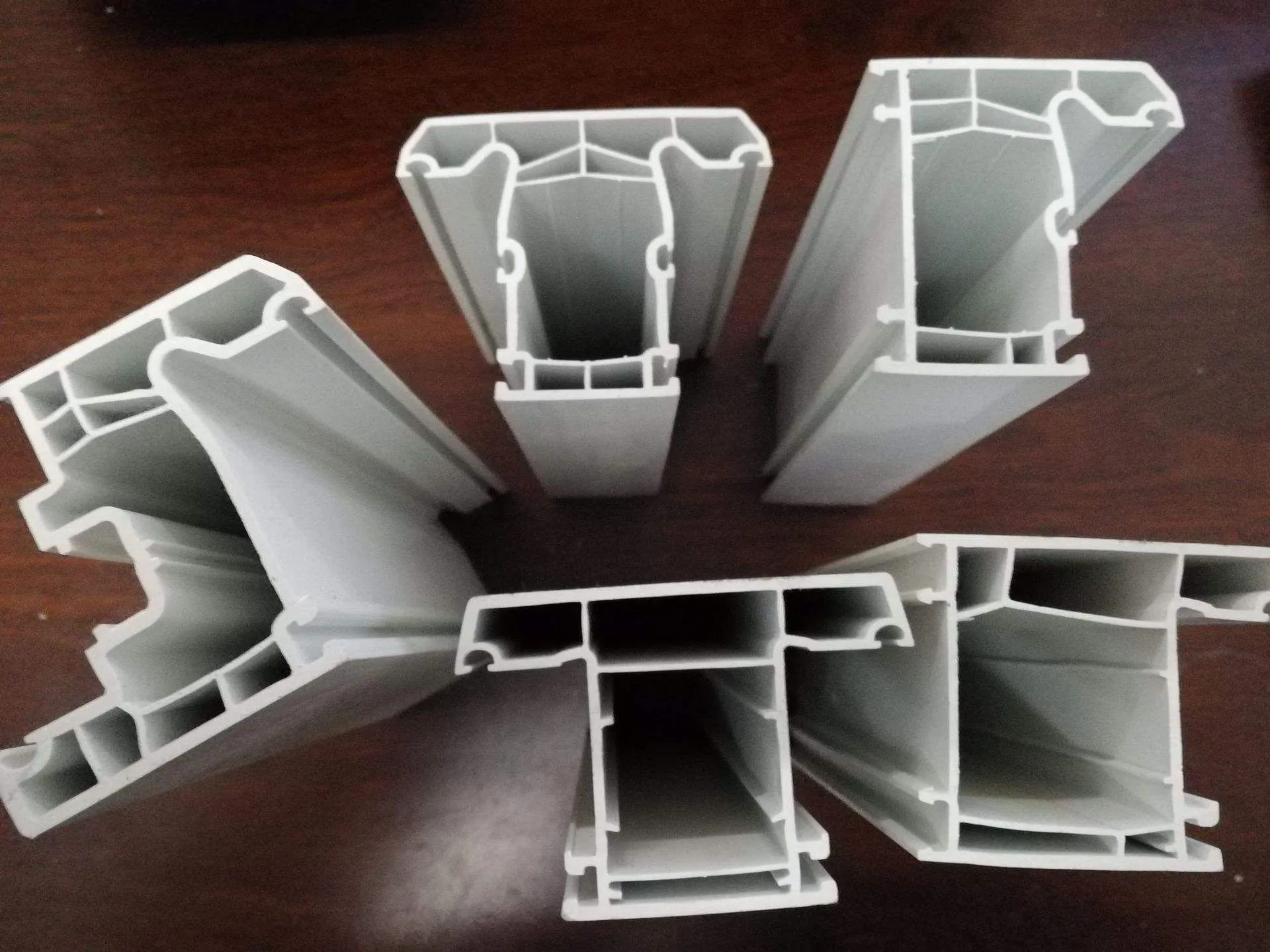

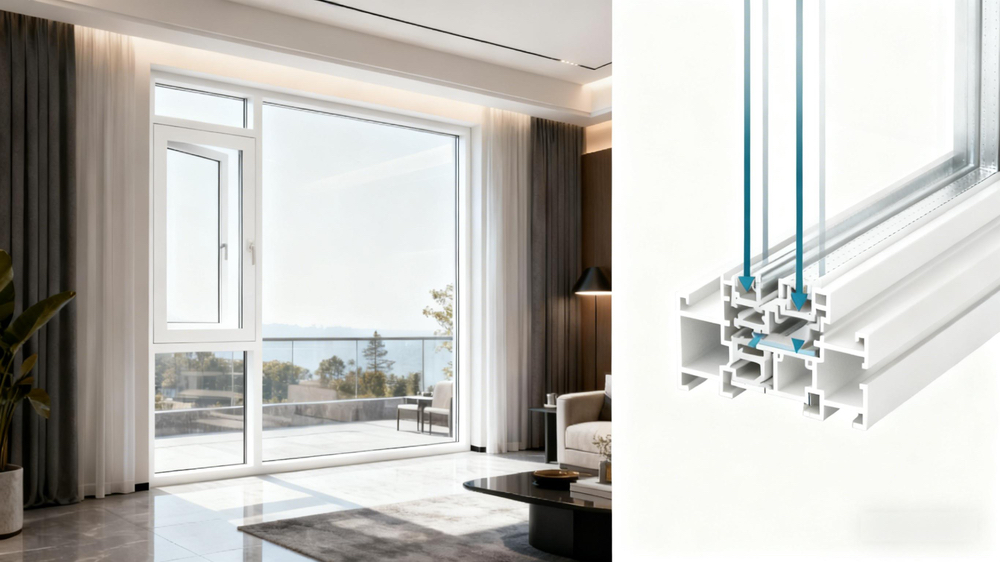

The profiles feature multi-chambered designs—multiple hollow cavities running the length of the profile. These chambers serve two critical functions: they provide structural rigidity without excessive weight, and they trap still air, which is an excellent natural insulator. The number of chambers typically ranges from three to seven, with more chambers generally providing better thermal insulation.

Steel reinforcement is inserted into the main chambers of larger profiles such as casement sashes, door frames, and sliding sashes. This galvanized or stainless steel insert, typically 1.2mm to 2.0mm thick, provides the structural strength needed for larger spans and heavy double or triple glazing units. Without reinforcement, vinyl profiles would deflect under wind loads or the weight of the glass.

The visible surfaces of vinyl window profiles can be finished in several ways. White profiles are typically co-extruded with a UV-resistant capstock layer. Colored profiles are produced through co-extrusion of a colored capstock or through lamination with decorative foils. Woodgrain finishes are achieved through high-quality laminates that replicate oak, mahogany, walnut, cherry, and other timbers.

Key Design Features of Quality Vinyl Profiles

Multi-chamber geometry is the most important thermal design feature. Each chamber traps a layer of still air. Premium vinyl window profiles feature asymmetrical chamber designs that maximize thermal performance while maintaining structural integrity. The outer walls are typically thicker (2.5mm to 3.5mm) than internal walls to resist impact and weathering.

Thermal conductivity of vinyl is inherently low at approximately 0.16 W/mK. This is significantly better than aluminum (approximately 160 to 210 W/mK) and comparable to wood. The multi-chamber design further enhances this natural insulation property.

Steel reinforcement cavities are strategically positioned where strength is needed most—hinge sides, lock sides, and meeting rails. The cavities are designed to accept standard C-shaped or rectangular steel inserts that are secured with screws or friction fits.

Gasket grooves are precision-molded into the profiles to accept EPDM or silicone weather seals. These grooves must maintain consistent dimensions to ensure uniform gasket compression when the window or door is closed.

Drainage channels are incorporated into the bottom of frames to allow any water that penetrates the outer seals to escape to the exterior. Proper drainage design prevents water from accumulating inside the profile chambers, which could lead to freezing damage in cold climates.

Reinforced corners are achieved through precision welding of mitered profile ends. High-frequency welding creates a corner that is as strong as the original profile material. Poor welding results in weak corners that can separate under stress.

Performance Characteristics of Vinyl Profiles

Thermal performance is measured by the U-value of the finished window. A profile with more chambers, thicker external walls, and optimized geometry achieves lower U-values. Premium vinyl window profiles enable finished U-values of 1.1 to 1.6 W/m²K with double glazing, and below 0.9 W/m²K with triple glazing.

Structural strength is determined by the profile wall thickness and steel reinforcement. Quality profiles have external wall thickness of 2.5mm to 3.5mm. The steel insert should be at least 1.5mm thick for standard applications and 2.0mm for large doors or high-wind areas.

Weather resistance depends on the quality of the vinyl compound. UV stabilizers prevent yellowing and surface degradation. Heat stabilizers maintain dimensional stability during temperature extremes (from -40°C to +80°C). Impact modifiers prevent cracking from accidental impacts.

Durability of quality vinyl profiles exceeds 30 to 40 years. The material does not rot, corrode, or support mold growth. Color stability depends on the quality of the capstock or laminate; premium co-extruded colors retain their appearance for 30+ years.

Sound insulation benefits from the multi-chamber design. The air cavities dampen sound transmission. Vinyl profiles typically achieve sound transmission class (STC) ratings of 30 to 35 for the frame alone, with additional improvement from glazing.

Applications for Vinyl Window Profiles

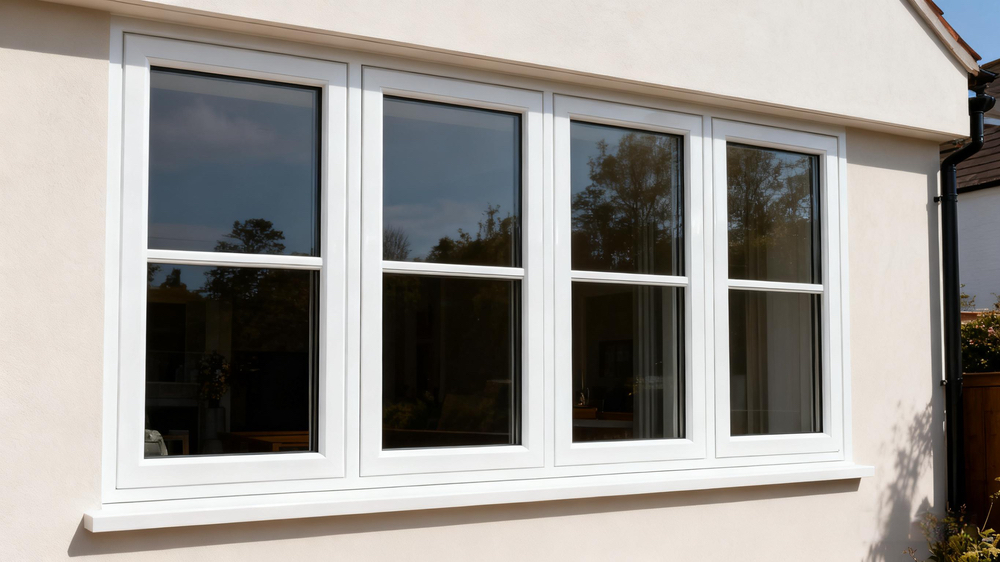

Residential windows are the most common application. Profiles are extruded for casement windows, sliding windows, tilt and turn windows, awning windows, and sliding sash (double-hung) windows.

Residential doors include sliding patio doors, swing doors, French doors, and bifold doors.

Commercial buildings including offices, hotels, schools, and healthcare facilities use vinyl profiles for their durability, low maintenance, and energy efficiency.

High-rise buildings require profiles with enhanced steel reinforcement to withstand higher wind loads (DP-50 or higher).

Coastal environments benefit from vinyl‘s corrosion resistance. Unlike aluminum, vinyl does not pit or corrode in salt spray.

Frequently Asked Questions About Vinyl Window Profiles

Q: How many chambers should a quality vinyl profile have?
A: For standard residential applications, 5 to 7 chambers provide excellent thermal performance. Three-chamber profiles are entry-level and suitable for mild climates. Seven-chamber or more profiles are premium and ideal for cold climates or passive house projects.

Q: What is the difference between virgin vinyl and recycled vinyl in profiles?
A: Virgin vinyl is made from new material with consistent properties and no contaminants. Recycled vinyl may contain impurities that reduce strength, impact resistance, UV stability, and color consistency. Quality profiles for windows and doors use virgin vinyl, especially for visible surfaces.

Q: Is steel reinforcement always necessary in vinyl profiles?
A: No. For small windows (under 600mm wide) with single glazing, reinforcement may not be needed. For larger windows, doors, or any unit with double or triple glazing, steel reinforcement is essential to prevent deflection and ensure long-term operation.

Q: Can vinyl window profiles be recycled at end of life?
A: Yes, vinyl is recyclable. Many manufacturers have take-back programs. However, steel reinforcement must be removed before recycling. Recycled vinyl can be used for non-structural applications such as pipe or industrial profiles.

Q: How do I identify quality vinyl window profiles?

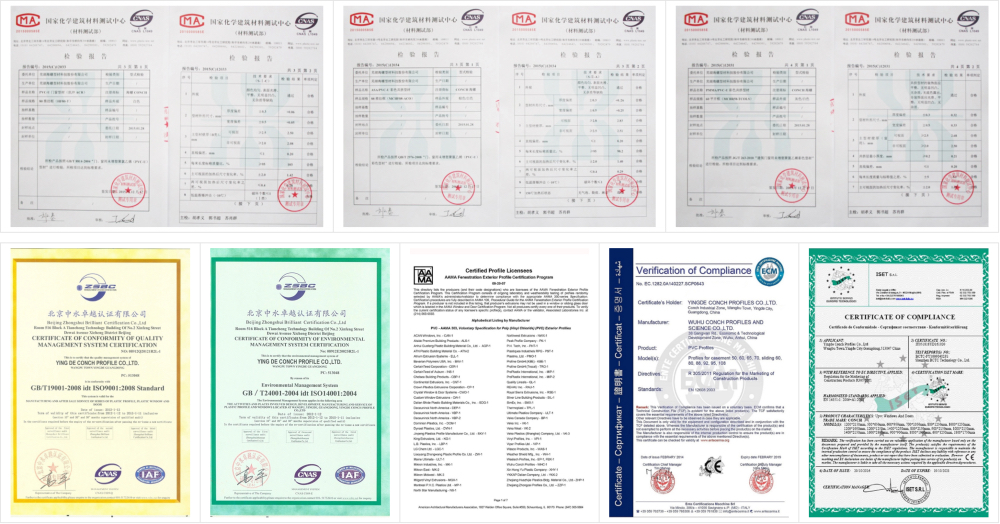

A: Look for profiles with smooth, glossy surfaces, consistent wall thickness, sharp corner details, no visible voids or bubbles, and consistent color throughout. Check for manufacturer certifications such as ISO 9001 and product standards like BS 7412 (UK), EN 12608 (Europe), or AAMA (North America).

Selection and Specification Tips

When selecting vinyl window profiles, consider the climate zone (more chambers for colder climates), the size of the opening (larger openings require thicker steel reinforcement), the glazing weight (heavier glass requires stronger profiles and thicker steel), and the color and finish requirements (co-extruded colors are more durable than laminates for high UV exposure areas). Always request test reports for thermal performance, structural strength, and weathering.

Conclusion

Vinyl window profiles are the foundation of modern energy-efficient windows. Their multi-chamber geometry, inherent low thermal conductivity, steel reinforcement options, and precision-engineered features work together to create windows that are durable, thermally efficient, secure, and low maintenance. Understanding profile design helps specifiers, builders, and homeowners make informed choices that deliver lasting value.

Cooperate With Hunan Haolv Building Materials Co., Ltd.

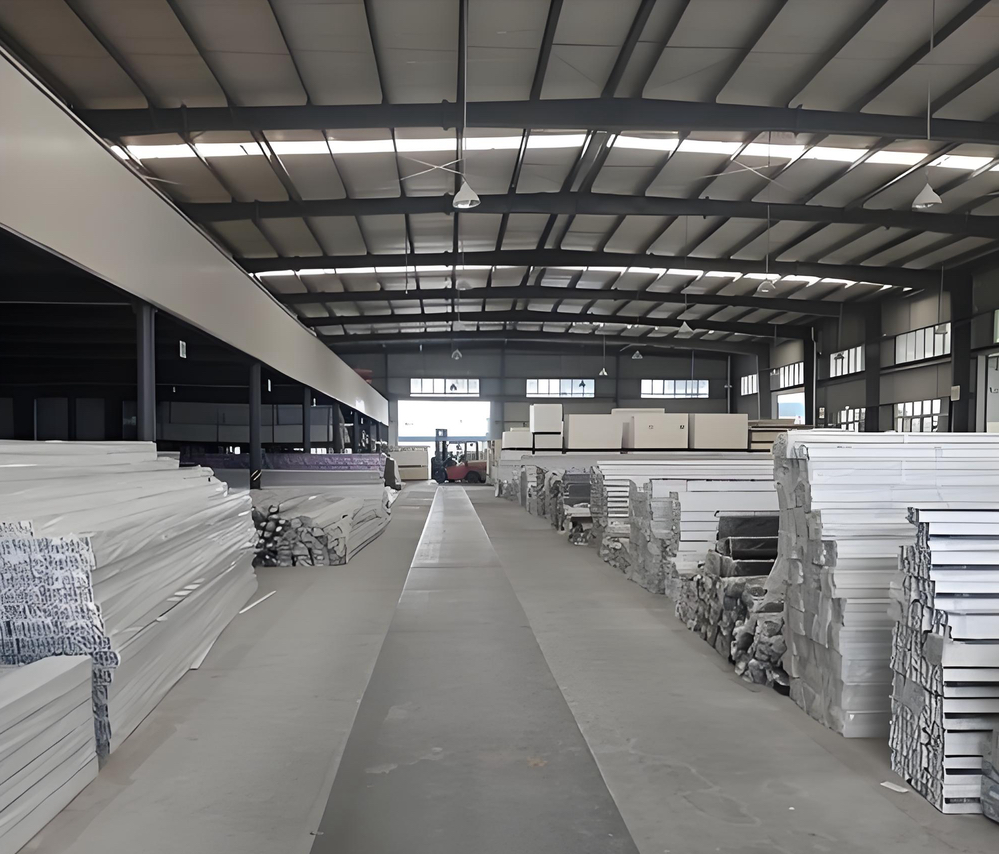

As a leading manufacturer of high-performance window systems, Hunan Haolv Building Materials Co., Ltd. brings over eighteen years of specialized expertise in vinyl window profiles. Our profiles are extruded from premium virgin UPVC material with multi-chamber designs (5 to 7 chambers), optimized steel reinforcement cavities, and precision gasket grooves. We offer a wide range of colors including white, anthracite gray, cream, brown, and woodgrain finishes. Every profile undergoes rigorous ISO-certified quality management from raw material compounding through final extrusion. For detailed quotations, pricelist information, or to discuss your specific profile requirements, please contact us today at kristin@haolvwindows.com.
