Which Aluminum Corner Windows Offer the Best Thermal Break?

Are you frustrated by skyrocketing energy bills and uncomfortable indoor temperatures near your corner windows? The answer lies in selecting Aluminum Corner Windows with superior thermal break technology. These specialized windows combine polyamide thermal barriers with precision-engineered corner connections to dramatically reduce heat transfer while maintaining the stunning panoramic views that corner installations provide. The best options feature multi-chamber thermal break systems, Low-E double or triple glazing, and reinforced 6063-T5 aluminum alloy frames that deliver U-factors as low as 0.25-0.32, ensuring year-round comfort and substantial energy savings for your modern architectural project.

Understanding Thermal Break Technology in Aluminum Corner Windows

When selecting high-performance Aluminum Corner Windows, understanding thermal break technology becomes absolutely critical to achieving optimal energy efficiency. Traditional aluminum frames act as thermal bridges, conducting heat rapidly between interior and exterior environments. This creates uncomfortable cold spots in winter, excessive heat gain in summer, and condensation problems that can damage your property. The thermal break system solves these challenges by inserting a low-conductivity polyamide barrier between the inner and outer aluminum profiles, effectively interrupting the heat flow pathway. The science behind thermal breaks reveals why they matter so significantly. Aluminum itself possesses high thermal conductivity, making it naturally poor at insulation despite its structural advantages. By incorporating a polyamide strip—typically PA66 nylon reinforced with glass fibers—between separated aluminum sections, manufacturers create an insulated barrier that maintains structural integrity while dramatically improving thermal performance. This engineered solution allows Aluminum Corner Windows to achieve U-factor ratings comparable to vinyl or wood frames, which range from 0.25 to 0.35 depending on the specific configuration and glazing options selected. For corner window applications specifically, thermal break design becomes even more complex. The 90-degree corner junction represents a critical thermal vulnerability where two window frames meet. Premium Aluminum Corner Windows address this challenge through continuous thermal break profiles that wrap around the corner connection, ensuring no weak points exist in the thermal envelope. This seamless integration prevents thermal bridging at the corner joint, where heat loss traditionally concentrates in poorly designed systems. The best manufacturers utilize specialized corner connectors with integrated thermal barriers that maintain consistent insulation performance throughout the entire window assembly.

Key Components of High-Performance Thermal Break Systems

The construction quality of thermal break components directly determines overall window performance. Premium systems incorporate polyamide strips measuring 20-34 millimeters in width, providing substantial insulation depth between interior and exterior aluminum profiles. The polyamide material itself must meet specific standards for mechanical strength, thermal expansion coefficient matching with aluminum, and long-term dimensional stability under temperature cycling. Leading manufacturers source materials from established suppliers like Technoform Bautec or Ensinger, ensuring consistent quality and performance characteristics. Beyond the thermal break strip itself, cavity design within the aluminum profiles significantly impacts thermal performance. Advanced Aluminum Corner Windows feature hollow chambers filled with foam insulation or equipped with thermal struts containing fins that disrupt convection currents within the frame cavities. This multi-chamber approach creates additional resistance to heat transfer, improving overall U-factor performance by 15-25 percent compared to simple hollow profiles. When combined with proper sealing systems using EPDM gaskets and weatherstripping, these design features work synergistically to create superior thermal barriers. The integration of glazing systems with thermal break frames completes the performance package. While the frame accounts for 15-20 percent of the window surface area, maximizing glass performance through Low-E coatings, argon or krypton gas fills, and multiple panes proves equally important. The best Aluminum Corner Windows utilize warm-edge spacer technology that extends the thermal break principle into the insulated glass unit perimeter, reducing edge-of-glass heat loss and minimizing condensation risk. This comprehensive approach ensures that every component contributes to optimal thermal efficiency throughout the entire window assembly.

Comparing Different Aluminum Corner Window Thermal Break Configurations

Not all thermal break systems deliver equivalent performance, and understanding the distinctions between available options helps you make informed decisions. Entry-level systems typically feature 20-24 millimeter polyamide strips in basic two-chamber aluminum profiles. These configurations achieve U-factors around 0.45-0.55 when paired with standard double glazing, representing significant improvement over non-thermally broken aluminum but falling short of premium performance standards. These options suit moderate climate zones where extreme temperature differentials occur infrequently, providing adequate thermal control at competitive price points. Mid-range Aluminum Corner Windows incorporate 24-28 millimeter thermal breaks within multi-chamber profiles featuring three to five distinct cavities. This enhanced design typically achieves U-factors between 0.32-0.42 with standard double glazing, or 0.28-0.35 when upgraded to triple glazing with Low-E coatings and argon fill. The additional chambers create multiple air pockets that resist heat transfer through convection, while the wider thermal break distance increases conduction resistance. These systems prove ideal for most residential and commercial applications across diverse climate zones, balancing performance with reasonable cost premiums. Premium thermal break configurations represent the pinnacle of available technology for Aluminum Corner Windows. These systems feature 30-34 millimeter polyamide barriers within extensively chambered profiles containing six or more cavities, often with foam-filled sections or thermal struts. When combined with triple glazing featuring dual Low-E coatings and krypton gas fills, these windows achieve U-factors as low as 0.18-0.25, rivaling or exceeding the performance of wood or fiberglass frames. The corner connections in premium systems utilize specially engineered thermal break components that maintain insulation continuity around the 90-degree junction, eliminating the thermal bridging common in lesser systems.

Evaluating Frame Series and Profile Depth

Aluminum Corner Windows are typically available in multiple series designations that indicate frame depth and corresponding thermal performance potential. The 80 Series represents a mid-range option with 80 millimeter frame depth, accommodating thermal breaks up to 24-26 millimeters wide and supporting double or triple glazing configurations. This series achieves good thermal performance suitable for most residential applications in moderate climates, with U-factors typically ranging from 0.35-0.45 depending on specific glazing selections and thermal break quality. The 110 Series offers enhanced depth at 110 millimeters, permitting wider thermal breaks up to 32-34 millimeters and superior multi-chamber designs. This increased depth accommodates triple glazing more effectively while maintaining proper sightlines and structural integrity. The additional frame depth allows for more sophisticated thermal break configurations and larger cavity volumes, typically achieving U-factors between 0.25-0.35. For Aluminum Corner Windows specifically, the 110 Series provides better corner joint design options, as the extra depth permits more robust corner connectors with integrated thermal barriers that maintain performance at these critical junctions. Custom series options extend beyond standard offerings, with some manufacturers providing 120-130 millimeter or deeper profiles for ultra-high-performance applications. These specialized systems incorporate the widest available thermal breaks, extensive multi-chamber designs with foam filling, and accommodation for exceptionally thick glazing units including quadruple-pane assemblies. While representing significant cost premiums, these configurations achieve U-factors below 0.20, meeting passive house standards and delivering maximum energy efficiency for extreme climate applications or buildings pursuing aggressive sustainability certifications.

Optimizing Glazing Selection for Maximum Thermal Performance

While thermal break frames provide the foundation for energy-efficient Aluminum Corner Windows, glazing selection ultimately determines overall thermal performance since glass represents 75-80 percent of the window surface area. Standard double glazing with 5mm-16mm air space-5mm configuration offers baseline thermal performance, achieving center-of-glass U-factors around 0.48-0.55. This represents the minimum acceptable standard for contemporary construction in most climate zones, providing modest improvement over single-pane assemblies but leaving substantial room for enhancement through advanced glazing technologies. Low-E coating application transforms double glazing performance dramatically. These microscopically thin metallic oxide layers reflect infrared wavelengths while permitting visible light transmission, reducing radiative heat transfer through the glass. Single Low-E coatings reduce center-of-glass U-factors to approximately 0.28-0.32, while dual Low-E applications can achieve 0.22-0.26. For Aluminum Corner Windows, Low-E coatings prove particularly valuable because the large glass areas typical in corner installations magnify glazing performance impacts. The coatings also reduce solar heat gain coefficient when positioned appropriately, helping control summer cooling loads without sacrificing beneficial winter solar gains. Triple glazing represents the premium option for Aluminum Corner Windows seeking maximum thermal performance. Three panes of glass with dual air or gas-filled spaces create exceptional insulation barriers, achieving center-of-glass U-factors between 0.15-0.25 depending on gas fill selection and Low-E coating application. Argon gas fill improves performance by approximately 15-20 percent compared to air, while krypton offers another 10-15 percent improvement in thinner spaces. The weight and thickness of triple glazing require robust frame systems, making the deeper 110 Series profiles or custom heavy-duty options necessary for proper support and operation.

Advanced Glazing Technologies and Warm-Edge Spacers

Beyond basic pane count and coatings, spacer selection significantly impacts overall Aluminum Corner Windows thermal performance. Traditional aluminum spacers create thermal bridges around the glazing perimeter, where edge-of-glass U-factors can reach 0.80-1.20 despite excellent center-of-glass performance. This edge effect becomes particularly problematic in corner window applications where frame and glass edge lengths are maximized relative to total glass area. Warm-edge spacers constructed from stainless steel, polymer composites, or foam materials reduce edge-of-glass heat loss by 25-40 percent, dramatically improving whole-window U-factors and reducing condensation risk. The integration of warm-edge technology with thermal break frames creates synergistic performance benefits for Aluminum Corner Windows. When the thermal break extends to the glass perimeter through warm-edge spacers, the insulation system becomes continuous throughout the entire window assembly. This comprehensive approach eliminates weak points where heat preferentially flows, ensuring uniform thermal performance across all window surfaces. The result manifests in more comfortable interior spaces with consistent surface temperatures, elimination of cold draft sensations near windows, and dramatic reductions in condensation formation that can cause mold, mildew, and finish deterioration. Gas fill selection within insulated glazing units deserves careful consideration for optimal thermal performance. Standard air-filled units represent the baseline, while argon fill—the most common upgrade—reduces conductivity by approximately 30 percent compared to air at minimal cost premium. For maximum performance in premium Aluminum Corner Windows, krypton fill offers superior insulation in thinner spaces typical of triple glazing configurations. Some manufacturers now offer krypton-argon blends that balance performance enhancement with cost considerations, providing improved thermal performance at intermediate price points between pure argon and pure krypton options.

Structural Considerations for Corner Window Thermal Break Systems

The unique structural demands of Aluminum Corner Windows require specialized engineering to maintain both thermal performance and structural integrity. Corner installations eliminate traditional support columns at the 90-degree junction, creating cantilevered loads that must be managed through reinforced framing systems. The thermal break components themselves cannot bear structural loads directly, as the polyamide material offers limited strength compared to aluminum. Premium systems incorporate mechanical fastening through the thermal break at strategic locations, transferring structural loads while minimizing thermal bridging through careful fastener selection and thermal break design. Frame reinforcement strategies vary significantly between manufacturers and frame series. Basic systems may use simple corner brackets that bypass the thermal break for structural continuity, creating localized thermal bridges that reduce overall performance. Mid-range Aluminum Corner Windows employ more sophisticated approaches with insulated reinforcement tubes or thermally improved fastening systems that maintain reasonable thermal performance while providing necessary structural support. Premium systems utilize continuous steel or aluminum reinforcement with integrated thermal breaks, or advanced composite reinforcement materials that offer structural strength without compromising thermal insulation. The corner connection joint itself represents perhaps the most critical element in Aluminum Corner Windows thermal break performance. Simple miter joints with external brackets often create significant thermal bridges where the two window frames meet. Superior designs utilize corner mullion systems with integrated thermal breaks that wrap continuously around the junction, maintaining insulation performance throughout the corner transition. These specialized components require precise manufacturing tolerances and careful assembly procedures, but they deliver seamless thermal performance without the cold spots and condensation issues common in poorly designed corner systems.

Load-Bearing Requirements and Wind Resistance

Structural performance testing becomes especially important for Aluminum Corner Windows, where large glass areas and eliminated corner supports create challenging loading scenarios. Premium thermal break systems must achieve design pressure ratings appropriate for their installation location and building height, typically requiring ratings between DP30-DP50 for residential applications and DP50-DP80 or higher for commercial installations. The thermal break components and corner connection systems must maintain structural integrity under these design loads while preserving insulation performance, necessitating careful engineering and testing validation. Wind resistance testing specifically evaluates how corner window assemblies perform under positive and negative pressure cycling that simulates severe weather conditions. The thermal break must resist compression and tension forces without permanent deformation, while maintaining continuous contact between polyamide and aluminum components. Any gaps that develop compromise both structural integrity and thermal performance, allowing air infiltration and creating thermal bridges. Quality manufacturers conduct extensive testing to verify that their Aluminum Corner Windows maintain specified performance under repeated loading cycles representative of decades of service life. Deflection limitations prove particularly critical for Aluminum Corner Windows with large glass areas and minimal intermediate supports. Excessive frame deflection under wind loads can stress glazing units, potentially causing seal failures that lead to gas loss and condensation between panes. The aluminum profiles must be engineered with sufficient depth, wall thickness, and reinforcement to limit deflections to acceptable levels typically specified as L/175 to L/200 of span length. This engineering requirement often dictates minimum frame series selections for specific window sizes and design pressure ratings, ensuring long-term durability and performance retention.

Evaluating Cost-Benefit Analysis and Long-Term Value

Investment decisions for premium thermal break Aluminum Corner Windows require careful consideration of initial costs versus long-term energy savings and other benefits. Entry-level systems with basic thermal breaks typically cost 20-35 percent more than non-thermally broken aluminum windows, representing modest premiums for significant performance improvements. Mid-range systems with enhanced thermal breaks and multi-chamber profiles add another 15-25 percent cost increment, while premium configurations with maximum thermal performance command prices 50-80 percent above baseline aluminum windows or 30-50 percent above mid-range thermally broken options. Energy savings calculations must account for specific climate conditions, window orientation, size, and existing HVAC system efficiency. In cold climates with substantial heating degree days, premium Aluminum Corner Windows with U-factors around 0.25 can reduce window-related heat loss by 40-60 percent compared to standard double-glazed thermally broken systems with U-factors of 0.40-0.45. For a typical 2000 square foot home with 300 square feet of corner window area, this translates to annual heating cost savings of $200-500 depending on energy prices and heating system type. Simple payback periods typically range from 8-15 years for the premium upgrade costs. However, energy savings represent only part of the value equation for high-performance Aluminum Corner Windows. Enhanced comfort from elimination of cold drafts and surface temperature uniformity provides immediate quality-of-life benefits that occupants notice daily throughout heating seasons. Condensation reduction prevents mold growth, window frame deterioration, and finish damage that create maintenance costs and health concerns. Property value enhancement from premium window systems appeals to energy-conscious buyers and may facilitate premium pricing or faster sales. When these factors combine with energy savings, the comprehensive value proposition often justifies premium thermal break system selection despite longer simple payback periods.

Conclusion

Premium Aluminum Corner Windows with advanced thermal break technology deliver superior performance through polyamide barriers, multi-chamber profiles, and optimized glazing configurations achieving U-factors of 0.25 or lower for maximum energy efficiency and comfort.

Cooperate With Hunan Haolv Building Materials Co., Ltd.

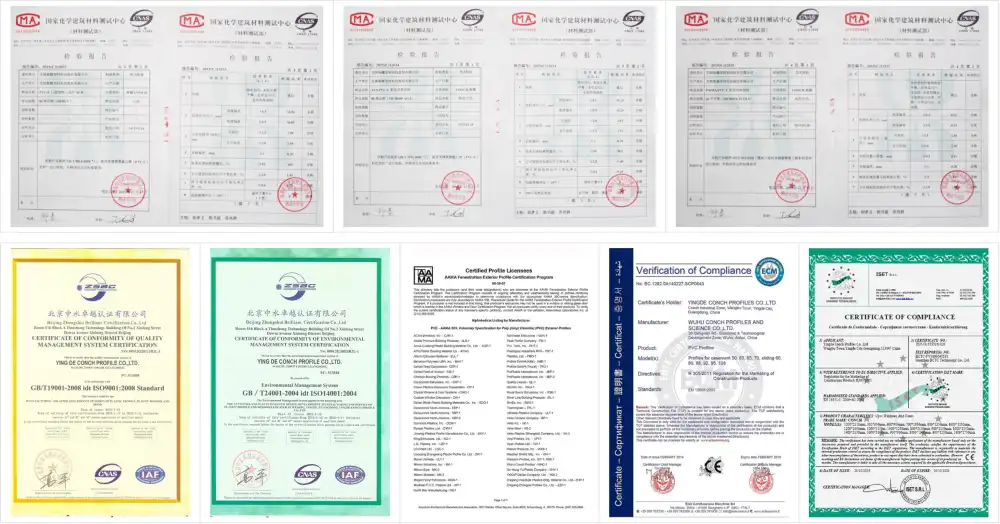

Partner with Hunan Haolv Building Materials Co., Ltd., your trusted China Aluminum Corner Windows manufacturer with 18 years of expertise in precision-engineered thermal break systems. As a leading China Aluminum Corner Windows supplier and China Aluminum Corner Windows factory, we deliver wholesale Aluminum Corner Windows with competitive Aluminum Corner Windows price and comprehensive Aluminum Corner Windows Pricelist options. Request your Customized Aluminum Corner Windows quotation today and discover Bulk Aluminum Corner Windows solutions backed by ISO-certified quality standards, advanced CNC manufacturing, and one-stop product support. Contact kristin@haolvwindows.com now for your Aluminum Corner Windows quotation, free technical consultation, complimentary sample shipping, and full-process project follow-up services that ensure your architectural vision becomes reality.

References

1. National Fenestration Rating Council (NFRC). "Energy Performance Ratings for Windows, Doors, and Skylights." NFRC Standards and Certification Guidelines.

2. U.S. Department of Energy, Office of Energy Efficiency and Renewable Energy. "Window Types and Technologies: Thermal Performance Considerations." Energy Efficiency Standards Publication.

3. Mazur, Richard and Engineering Team at Western Window Systems. "Designing for Thermal Performance in Aluminum Fenestration Systems." Building Envelope Design Journal, 2022.

4. Vieira, R.K. and Sheinkopf, K.G. "Energy-Efficient Window Selection: Frame Materials and Thermal Break Technology." Lawrence Berkeley National Laboratory, Building Systems Office, 1994.

5. Technoform Bautec Engineering Department. "Polyamide Thermal Breaks for Aluminum Window Systems: Technical Performance Standards and Application Guidelines." Fenestration Technology Handbook, 2023.
