Aluminum Sliding Door Profile The Engineered Backbone of Smooth and Durable Sliding Doors
Behind every high‑performance sliding door lies a critical component: the profile. The aluminum sliding door profile is not just a simple extrusion – it is a precision‑engineered system of chambers, rails, and reinforcement that determines the door‘s strength, thermal efficiency, weather resistance, and longevity. Whether for residential patio doors or commercial storefronts, understanding these profiles is essential for specifying the right door system. This comprehensive guide explores the design, features, and selection criteria for aluminum sliding door profiles.
Understanding the Aluminum Sliding Door Profile

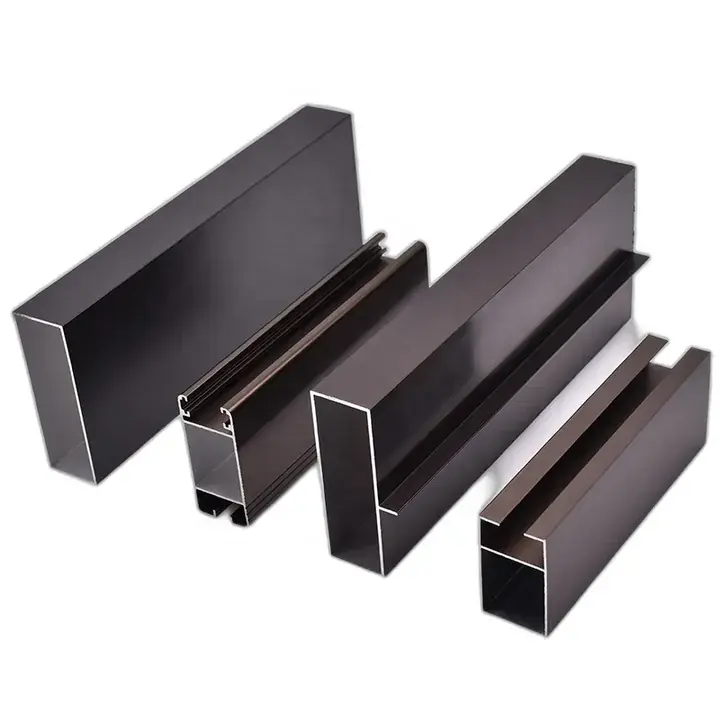

An aluminum sliding door profile is an extruded shape made from high‑grade aluminium alloy (typically 6063‑T5 or 6061‑T6). It forms the frame, sliding sash, fixed panel, and track of a sliding door. The profile’s geometry – including the number of chambers, wall thickness, track design, and thermal break placement – directly impacts the door‘s performance.
Modern sliding door profiles are multi‑chambered. These hollow sections trap air, providing natural thermal insulation. For exterior applications, aluminum sliding door profiles incorporate a polyamide thermal break – a 20‑30mm insulating strip inserted between the interior and exterior aluminium sections. This blocks thermal bridging, preventing condensation and improving energy efficiency.
The profile includes a lower track (with stainless steel rolling surface), an upper guide track, weep holes for drainage, and recesses for weather seals. Stainless steel reinforcement is often inserted into the stiles (vertical edges) and bottom rail to support heavy glass panels (up to 150‑200kg per sash). High‑quality profiles are powder‑coated (any RAL color) or anodised for corrosion resistance.
Key Design Features of Quality Aluminum Sliding Door Profiles
Wall thickness and structural strength. Premium profiles have a minimum wall thickness of 1.8‑2.0mm for the main frame and 2.0‑2.5mm for the sliding sash. This ensures resistance to wind loads (DP‑40 to DP‑60) and prevents deflection under the weight of double or triple glazing.

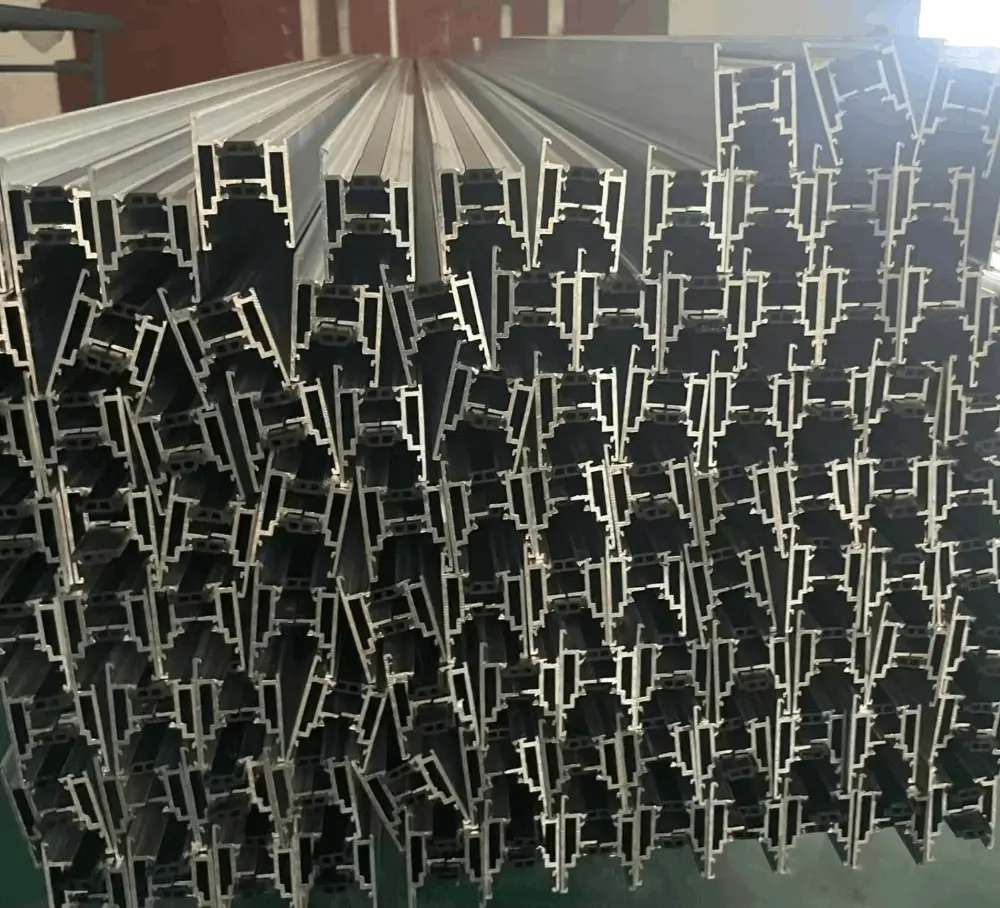

Multi‑chamber geometry. A typical high‑performance sliding door profile has 3‑5 chambers. More chambers mean better thermal insulation and sound reduction. Asymmetrical chamber designs optimise strength without adding bulk.
Thermal break integration. For thermally broken profiles, the polyamide strip (typically 20‑30mm wide) is inserted after extrusion. The width of the thermal break correlates directly with the U‑value: a 30mm break can achieve U‑values as low as 1.2‑1.6 W/m²K.
Track design. Bottom tracks are either low‑profile (10‑15mm high) for accessibility or standard (30‑50mm) with stainless steel wear strips. Top‑hung systems use a concealed header track. Good profile design includes sloped drainage channels to prevent water pooling.
Seal and gasket grooves. Precision‑machined grooves accept EPDM bulb seals, brush seals, and silicone weather strips. Multiple sealing lines (2‑3) dramatically improve air and water tightness.
Hardware integration. Profiles feature pre‑engineered cavities for multi‑point locking mechanisms, roller assemblies, anti‑lift blocks, and handle mounting. These cavities ensure smooth, secure operation.
Performance Characteristics of Aluminum Sliding Door Profiles
Thermal performance is governed by the thermal break and chamber design. A non‑thermal break aluminium profile has a U‑value of approximately 5.0 W/m²K. A properly designed thermal break profile with double glazing achieves 1.2‑1.8 W/m²K, meeting modern energy codes.
Structural strength is measured by design pressure (DP) ratings. Quality profiles can achieve DP‑40 (2,000 Pa) to DP‑60 (3,000 Pa), suitable for high‑rise and hurricane‑prone areas.
Weather tightness depends on seal design. Multi‑point locking pulls the sash tight against the frame, achieving air infiltration ≤0.1 cfm/ft² and water resistance up to 700 Pa.
Durability. Aluminium does not rot, warp, rust, or corrode. Powder‑coated finishes (AAMA 2604 or 2605) resist UV fading, chalking, and salt spray for 30+ years.
Applications for Aluminum Sliding Door Profiles

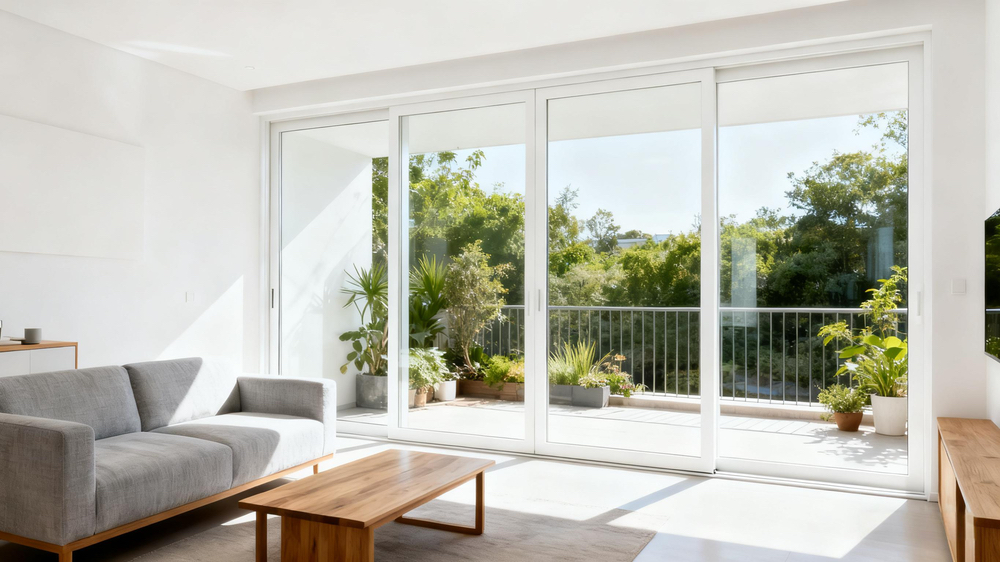

Residential sliding doors – patio, balcony, and terrace entrances.
Commercial storefronts – retail sliding doors, office partitions.
High‑rise buildings – balcony and living room sliding doors with DP‑50+ ratings.
Coastal environments – marine‑grade powder coating and stainless steel hardware.
Frequently Asked Questions About Aluminum Sliding Door Profiles
Q: What is the difference between a thermal break and non‑thermal break profile?
A: Non‑thermal break profiles conduct heat freely, causing condensation and high energy loss. Thermal break profiles have a polyamide strip that blocks heat transfer, achieving U‑values 3‑4 times better. Always specify thermal break for exterior sliding doors.
Q: How many chambers should a quality sliding door profile have?
A: For residential use, 3‑5 chambers provide good thermal and acoustic performance. 2‑chamber profiles are budget‑grade. High‑performance profiles may have 6 chambers but are less common for sliding doors.
Q: What wall thickness should I look for?
A: Main frame: minimum 1.8mm. Sliding sash: minimum 2.0mm. For doors over 2.5m wide, consider 2.5mm thickness or additional steel reinforcement.
Q: Can aluminum sliding door profiles be recycled?
A: Yes, aluminium is 100% recyclable without loss of properties. Many profiles contain recycled content. At end of life, the profiles can be melted down and re‑extruded.

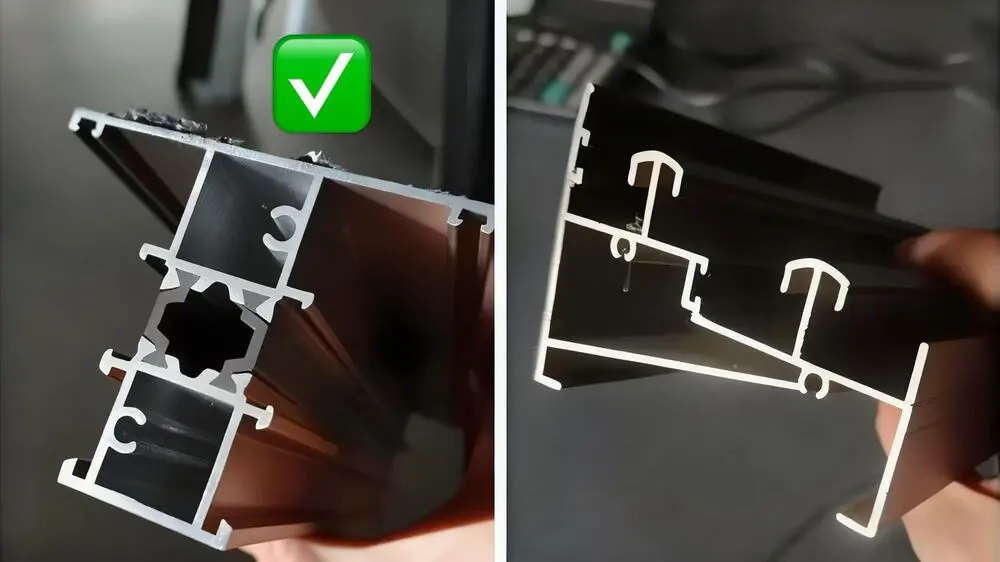

Q: How do I identify a quality profile from a cheap one?
A: Look for uniform wall thickness, sharp corners, smooth surface finish, no voids or bubbles. Check for AAMA or ISO certification. Weigh the profile – quality profiles feel solid and heavy.
Selection and Specification Tips
When choosing an aluminum sliding door profile, consider the climate zone (thermal break required for most), door size (larger sizes need thicker walls and reinforcement), glazing weight (double or triple glazing adds significant weight), and wind load requirements (DP rating). Always require test reports for air, water, and structural performance from the manufacturer.
Conclusion
The aluminum sliding door profile is the unsung hero of every smooth‑operating, energy‑efficient sliding door. From multi‑chamber thermal break designs to robust steel‑reinforced rails, understanding these profiles empowers you to select a door system that delivers durability, comfort, and lasting value.
