UPVC Bifold Patio Doors The Space‑Maximising Solution for Modern Indoor‑Outdoor Living

Imagine folding back an entire wall of your home to create a wide, unobstructed passage to your garden or patio. UPVC bifold patio doors make this possible. Also known as folding sliding doors, they consist of multiple panels hinged together that concertina and stack neatly to one or both sides of the opening. This design offers the widest possible opening, exceptional natural light, and the low‑maintenance benefits of UPVC. This comprehensive guide covers everything you need to know about UPVC bifold patio doors.

Understanding UPVC Bifold Patio Doors

UPVC bifold patio doors are composed of several narrow panels (typically 400mm to 900mm wide) connected by vertical hinges. The entire assembly runs on a top‑hung or bottom‑rolling track with stainless steel rollers that allow the panels to fold and slide. When opened, the panels concertina against each other, stacking compactly at one or both ends, clearing up to 90% of the total opening width.

The frames and panels are extruded from multi‑chambered virgin UPVC with UV stabilisers and impact modifiers. Steel reinforcement is inserted into the hinged stiles (vertical edges) to ensure structural rigidity and prevent warping. The material never needs painting, resists rot, warp, and corrosion, and provides excellent thermal insulation.

The hardware system is critical. High‑quality UPVC bifold patio doors use stainless steel rollers, heavy‑duty piano hinges, multi‑point locking mechanisms, and continuous EPDM weather seals at the top, bottom, and between panels. The doors can be designed to open inward or outward, depending on space and preference. A traffic door (a single panel that opens independently) is often incorporated for everyday access without folding the entire door.

Key Advantages of UPVC Bifold Patio Doors

Maximum opening width is the defining advantage. Unlike sliding doors that leave one panel fixed, bifold doors can stack all panels to one side, opening up to 90% of the wall. This creates a true indoor‑outdoor flow, perfect for entertaining, dining, or simply enjoying the garden.

Unobstructed views and natural light. The slim UPVC frames maximise glass area, providing panoramic views and flooding interiors with daylight. With double or triple glazing, they also offer excellent energy efficiency.

Excellent energy efficiency. Multi‑chambered UPVC profiles provide natural insulation. Combined with double glazing, Low‑E coating, and argon gas fill, these doors achieve U‑values as low as 1.2–1.6 W/m²K, reducing heating and cooling costs.

Low maintenance. UPVC never needs painting, does not rot, warp, or corrode. Cleaning requires only mild soap and water. The white or co‑extruded coloured finishes resist fading for decades.

Smooth, quiet folding operation. Stainless steel rollers and precision‑engineered hinges allow even heavy double‑glazed panels to fold effortlessly. High‑quality systems are rated for 20,000+ cycles.

Enhanced security. Multi‑point locking systems (typically 3–7 points) engage the panels to the header, threshold, and each other. Laminated or tempered glass options add further protection. The hinges and locking hardware are designed to resist tampering.

Versatile configurations. Bifold doors can be designed to stack on the left, right, or both sides (bi‑parting). A traffic door allows quick access without unfolding the entire system. Internal or external folding options are available.

Glass and Hardware Options for UPVC Bifold Patio Doors

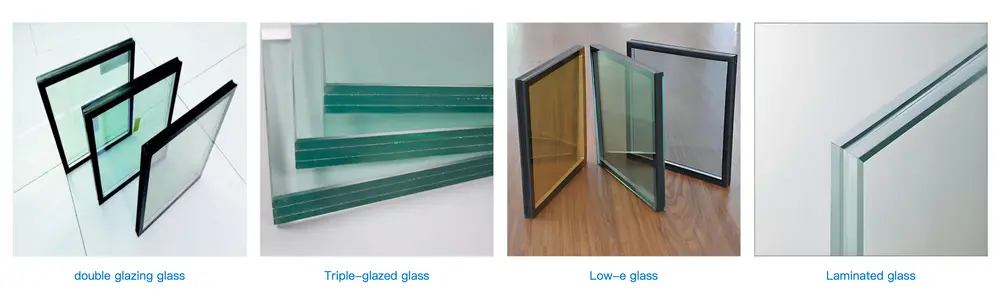

Glass configurations:

• Double glazing (5mm+20A+5mm): Standard Low‑E + argon, U‑value ~1.6 W/m²K.

• Triple glazing (5mm+12A+5mm+12A+5mm): For extreme climates or noise reduction.

• Laminated glass: PVB interlayer for security and sound reduction.

• Tempered glass: Safety glazing required in many codes.

Hardware specifications:

• Stainless steel rollers: Top‑hung or bottom‑rolling; adjustable.

• Multi‑point locking: 3–7 locking points, stainless steel components.

• Piano hinges: Continuous stainless steel hinges for durability.

• Handles: Flush or pull handles in various finishes (matte black, brushed stainless, etc.).

• Thresholds: Low‑profile or flush; thermal break options.

• Insect screens: Retractable screens that follow the folding motion.

Applications for UPVC Bifold Patio Doors

Residential homes – patios, gardens, terraces, sunrooms, and kitchen‑garden connections.

Commercial properties – restaurants, cafes, hotels, and retail spaces – create open‑air dining areas and inviting storefronts.

Apartment balconies – where space is limited, bifold doors can maximise the opening to a balcony while folding compactly.

Renovation projects – custom‑made to fit existing openings, dramatically transforming the connection to outdoor spaces.

Frequently Asked Questions About UPVC Bifold Patio Doors

Q: How much space do UPVC bifold doors need when fully open?
A: The stacked panels typically occupy 100–200mm of depth (depending on panel width and number) from the frame on the stacking side. The rest of the opening becomes completely clear – up to 90% of the wall width.

Q: Are UPVC bifold doors secure?
A: Yes. Modern bifold doors feature multi‑point locking systems that secure each panel to the frame and adjacent panels. Hinges are designed to resist tampering, and laminated glass adds break‑in resistance.

Q: Can UPVC bifold doors be used in coastal areas?
A: Yes. UPVC is highly resistant to salt spray corrosion. Use stainless steel hardware for maximum durability. The material will not pit or corrode like aluminium in severe coastal environments.

Q: How do I maintain UPVC bifold doors?
A: Clean frames and glass with mild soap and water. Lubricate rollers and tracks annually with silicone spray. Inspect weather seals for damage. The UPVC never needs painting.

Q: What is the typical lifespan?
A: 30–40 years. Rollers and seals may need replacement after 15–20 years. The UPVC frame and panels remain durable. With proper care, they will serve reliably for decades.

Installation and Long‑Term Value

Professional installation is essential. The header track must be perfectly level and securely anchored. The floor track (if bottom‑rolling) must be accurately positioned. Proper flashing and sealing prevent water infiltration. Adjustments to rollers and hinges ensure smooth folding.

Long‑term value includes increased home value, energy savings, low maintenance, and a dramatic improvement in lifestyle by connecting indoor and outdoor spaces. For homeowners who love to entertain, UPVC bifold doors are a transformative investment.

Conclusion

UPVC bifold patio doors offer the widest possible opening, stunning views, and exceptional low‑maintenance durability. With thermal break‑like energy efficiency (multi‑chambered UPVC) and multi‑point security, they are the premium choice for seamless indoor‑outdoor living without the high cost of aluminium or timber.
