How many types of aluminium profile are there?

Are you standing in the middle of your construction project, staring at blueprints, wondering which aluminum profile will transform your vision into reality? Whether you're building elegant window frames, sturdy industrial frameworks, or sophisticated curtain wall systems, selecting the right Aluminum Profiles can make the difference between a project that merely functions and one that truly excels. Understanding the vast landscape of available profile types is not just about meeting specifications—it's about unlocking possibilities for durability, aesthetics, and performance that will serve your structure for decades to come.

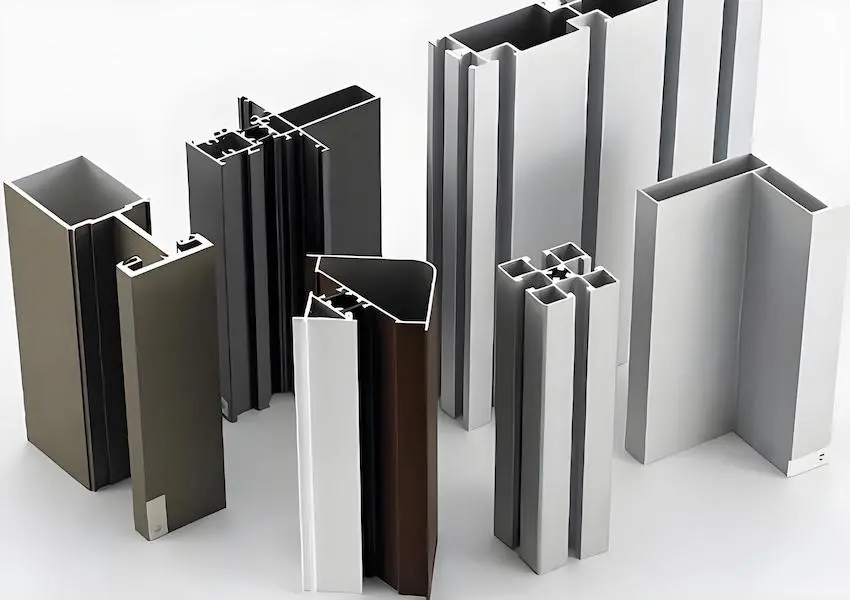

Understanding the Main Categories of Aluminum Profiles

The aluminum extrusion industry has evolved to meet diverse architectural and industrial demands, resulting in several primary classification systems for Aluminum Profiles. At the broadest level, profiles are categorized based on their manufacturing process, cross-sectional geometry, and intended application. The two fundamental manufacturing approaches—extruded and rolled profiles—form the foundation of this classification system, with extruded profiles representing the most versatile and widely adopted solution across construction and manufacturing sectors. Extruded Aluminum Profiles are created through a sophisticated process where heated aluminum billets are forced through precision-engineered dies, producing cross-sections with exceptional dimensional accuracy and structural consistency. This manufacturing method enables the production of complex geometries that would be impossible to achieve through traditional rolling or casting processes. The extrusion process accommodates intricate internal void spaces, multiple groove configurations, and variable wall thicknesses—all critical features for modern window and door systems where Aluminum Profiles must integrate seamlessly with glazing units, weatherstripping, and hardware components. Beyond the manufacturing distinction, Aluminum Profiles are further categorized by their cross-sectional characteristics into hollow beam profiles, solid profiles, semi-hollow profiles, and specialized architectural sections. Hollow beam profiles, which include square, rectangular, and custom-shaped variants, offer optimal strength-to-weight ratios making them ideal for load-bearing applications in both residential and commercial construction. These profiles feature internal chambers that not only reduce material usage and overall weight but also provide convenient channels for wiring, drainage, and thermal breaks—features particularly valuable in advanced window and door manufacturing where energy efficiency and weather resistance are paramount.

Structural and Industrial Aluminum Profile Types

When examining structural applications, the diversity of Aluminum Profiles becomes even more apparent, with each type engineered to address specific load-bearing, spanning, and assembly requirements. T-slot profiles represent one of the most innovative categories, featuring distinctive T-shaped grooves along their length that facilitate modular construction and allow for unprecedented flexibility in assembly configurations. These profiles have revolutionized industrial framework construction, enabling manufacturers to create adjustable workstations, machine guards, and automation systems without welding or permanent fastening methods. The modular dimension system—commonly referenced as Series 10, Series 15, or metric equivalents of 30mm, 40mm, and 45mm—provides standardized sizing that ensures component compatibility across different manufacturers and applications. For window and door production, understanding these standardization systems becomes crucial when integrating Aluminum Profiles with international hardware systems or when specifying components for export markets. The groove width directly correlates to the fastener sizes that can be accommodated, with Series 10 typically accepting M6 hardware, Series 15 utilizing M8 components, and larger metric profiles designed for M10 and M12 fastening systems. Square and rectangular Aluminum Profiles constitute another essential category, particularly valued in construction for their ability to provide stable, multi-directional load support. These profiles find extensive application in structural framing, support columns, and load-bearing elements where predictable stress distribution is critical. In the context of window and door manufacturing, square profiles often serve as reinforcement elements within larger frame assemblies, providing additional rigidity to expansive sliding systems or oversized casement configurations. Their seamless manufacturing variants offer superior strength characteristics compared to welded alternatives, making them the preferred choice for applications where structural integrity cannot be compromised.

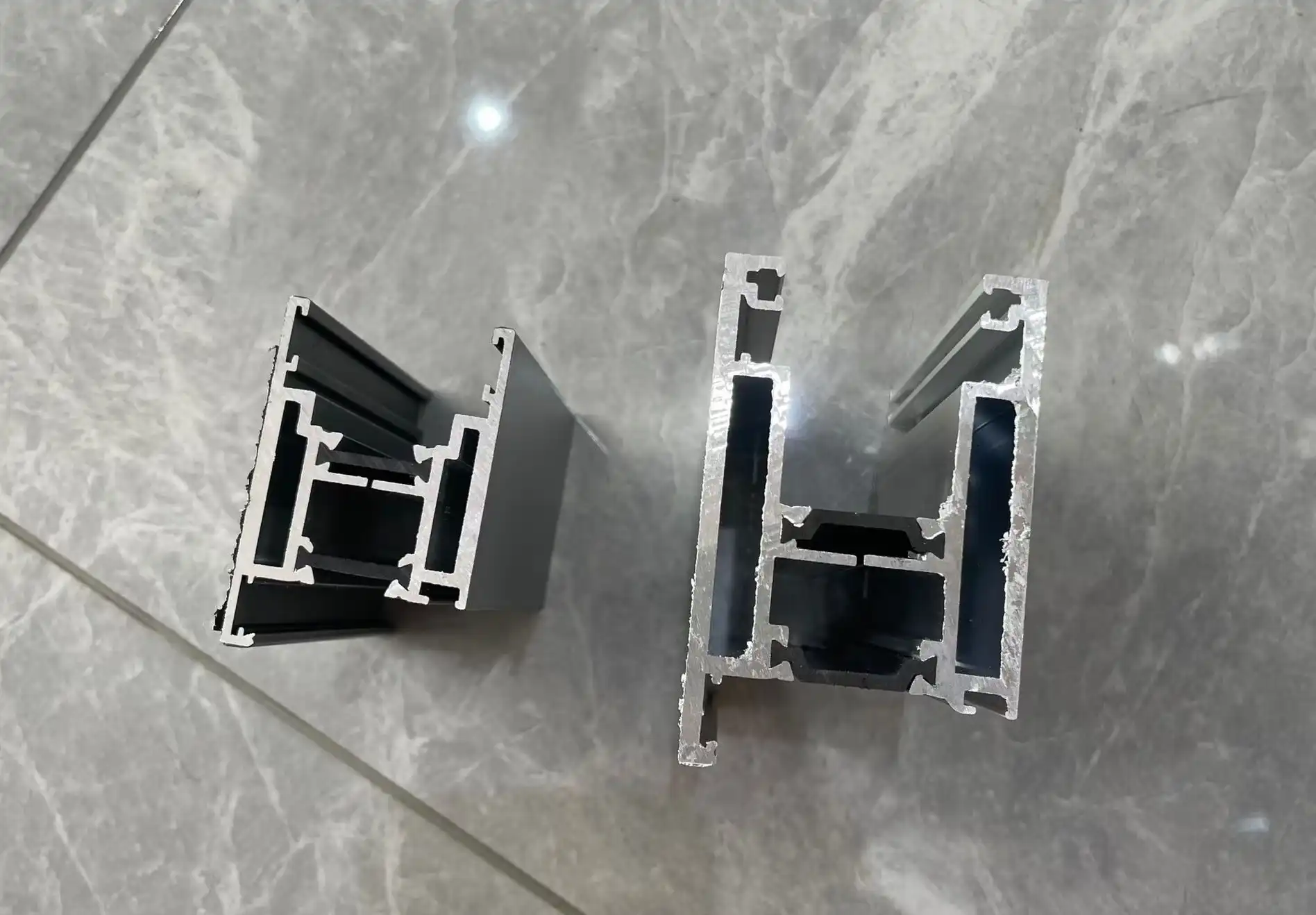

Specialized Profiles for Windows and Doors

The window and door industry relies on highly specialized Aluminum Profiles that have been meticulously engineered to address the unique challenges of these applications—weatherproofing, thermal performance, structural glazing support, and aesthetic refinement. Casement profiles, designed specifically for hinged window and door systems, incorporate sophisticated geometry that accommodates multiple weatherstripping channels, glazing beads, and hardware mounting surfaces within a single extrusion. These profiles typically feature stepped rebates that create overlapping joints between frame and sash components, establishing multiple barriers against water infiltration and air leakage. Sliding system profiles—commonly designated as SD sections in industry terminology—present entirely different design priorities, with emphasis placed on smooth operation, durable track surfaces, and effective sealing despite the inherent movement of components. The Aluminum Profiles used in sliding applications must accommodate bearing surfaces that maintain alignment under repeated operation while integrating drainage pathways that evacuate any water that penetrates the exterior seals. Premium sliding profiles incorporate sophisticated multi-chamber designs that house both structural reinforcement and thermal break materials, achieving energy performance levels that were once exclusive to fixed glazing systems. Folding and bi-fold door systems demand yet another specialized category of Aluminum Profiles, engineered to support substantial glass weights while maintaining narrow sightlines and enabling smooth, effortless operation across multiple panel configurations. These profiles must integrate precision-machined pivot points, continuous weatherstripping channels, and substantial structural depth to prevent deflection under wind loads—all while maintaining the slender aesthetic profiles that make these systems architecturally desirable. The complexity of these Aluminum Profiles reflects decades of engineering refinement, with leading manufacturers continuously innovating to reduce thermal bridging, enhance security features, and accommodate ever-larger glazing dimensions.

Architectural and Facade Aluminum Profile Systems

Curtain wall and architectural facade systems represent the pinnacle of Aluminum Profiles engineering, where structural performance, aesthetic expression, and environmental control converge in building envelope solutions that define contemporary architecture. RCW (Ribbon Curtain Wall) profiles exemplify this category, designed to create continuous vertical and horizontal grids that support extensive glazing areas while accommodating building movement, thermal expansion, and substantial wind loads. These profiles incorporate multiple chambers for structural reinforcement, pressure equalization, and water management—creating sophisticated systems that protect interior spaces from the elements while maintaining minimal visual presence. Mullion and transom profiles—the vertical and horizontal framing members that compose curtain wall grids—are engineered with specific load paths that transfer wind pressures and dead loads to the primary building structure. The Aluminum Profiles used in these applications often feature substantial depths ranging from 50mm to 250mm depending on span requirements and design wind pressures. Advanced mullion systems incorporate continuous thermal breaks that separate exterior and interior aluminum surfaces, dramatically reducing heat transfer through the building envelope and enabling these systems to meet stringent energy code requirements in diverse climate zones. Sunroom and conservatory construction represents another specialized application domain for Aluminum Profiles, where the products must accommodate steep roof pitches, integrate with various glazing thicknesses, and provide reliable weather protection across complex three-dimensional geometries. The profiles used in these applications combine structural depth for spanning capabilities with integrated guttering systems, condensation management channels, and mounting surfaces for both vertical and sloped glazing installations. Modern sunroom profiles increasingly incorporate polyamide thermal breaks and multi-chamber designs that achieve U-values competitive with traditional wall assemblies, transforming these spaces from seasonal additions into year-round living environments.

Surface Treatments and Finish Options for Aluminum Profiles

The performance and longevity of Aluminum Profiles extend far beyond their geometric configuration, with surface treatment processes playing crucial roles in corrosion resistance, aesthetic appeal, and long-term durability. Anodizing represents the most established finishing technique, creating a hard, protective oxide layer that becomes integral to the aluminum surface rather than a coating applied atop it. This electrochemical process produces finishes ranging from natural silver tones to bronze, black, and even custom color-matched options, all while enhancing the metal's inherent corrosion resistance and providing a surface that will not chip, peel, or delaminate over time. Powder coating technology has emerged as the dominant finishing method for Aluminum Profiles in architectural applications, offering virtually unlimited color options, superior durability, and environmental advantages over traditional liquid paint systems. The powder coating process involves electrostatically applying dry polymer powder to prepared aluminum surfaces, then curing at elevated temperatures to create a continuous, uniform finish with excellent adhesion and impact resistance. Modern polyester and fluoropolymer powder coatings deliver warranty periods extending twenty years or more, maintaining color stability and surface integrity even under intense ultraviolet exposure and harsh environmental conditions. Beyond these conventional finishing methods, specialized surface treatments address specific performance requirements in window and door applications. Woodgrain transfer films create authentic timber appearances on Aluminum Profiles, combining the aesthetic warmth of traditional materials with aluminum's structural advantages and minimal maintenance requirements. Sublimation techniques bond these decorative films at the molecular level, producing finishes that resist fading, scratching, and weathering throughout decades of service. For projects requiring maximum corrosion resistance—particularly in coastal environments or industrial settings—multi-layer finishing systems combine anodizing as a base treatment with powder coating as the topcoat, creating protective barriers that defend against even the most aggressive atmospheric conditions.

Custom and Specialty Aluminum Profile Applications

While standardized Aluminum Profiles address the majority of construction applications, the ability to design and manufacture custom extrusions opens entirely new possibilities for architectural expression and functional optimization. Custom profile development begins with detailed analysis of specific performance requirements—structural loads, thermal performance targets, glazing configurations, hardware integration needs, and aesthetic objectives. Experienced extrusion manufacturers work collaboratively with architects, engineers, and fabricators to translate these requirements into optimized cross-sectional geometries that maximize performance while maintaining manufacturability and cost-effectiveness. The custom extrusion process accommodates remarkably complex geometries, including variable wall thicknesses, intricate void patterns, and precisely positioned mounting surfaces that eliminate secondary machining operations. For window and door manufacturers pursuing product differentiation or addressing unique market requirements, custom Aluminum Profiles enable the creation of proprietary systems with performance characteristics and aesthetic signatures unavailable through standard profile catalogs. This customization capability extends to specialized applications such as acoustic windows requiring unusual sealing geometries, security doors demanding reinforced chamber designs, or heritage restoration projects where profiles must replicate historical proportions while incorporating modern performance features.

Emerging applications for specialty Aluminum Profiles continue expanding into new domains—photovoltaic integration frames that mount solar panels directly to building facades, dynamic shading systems with profiles accommodating motorized louver mechanisms, and responsive building skins where profiles incorporate sensor mounting surfaces and control system integration points. These advanced applications demonstrate how Aluminum Profiles technology continues evolving, driven by sustainability imperatives, smart building integration, and the architectural profession's pursuit of ever more ambitious design expressions. As manufacturing capabilities advance and design software becomes increasingly sophisticated, the distinction between standard and custom profiles continues blurring, with even modest production volumes now able to justify fully optimized extrusion geometries.

Conclusion

The aluminum profile landscape encompasses an impressive spectrum of types, from fundamental structural sections to highly specialized architectural systems, each engineered to excel in specific applications while maintaining the material's inherent advantages of strength, durability, and versatility.

Cooperate With Hunan Haolv Building Materials Co., Ltd.

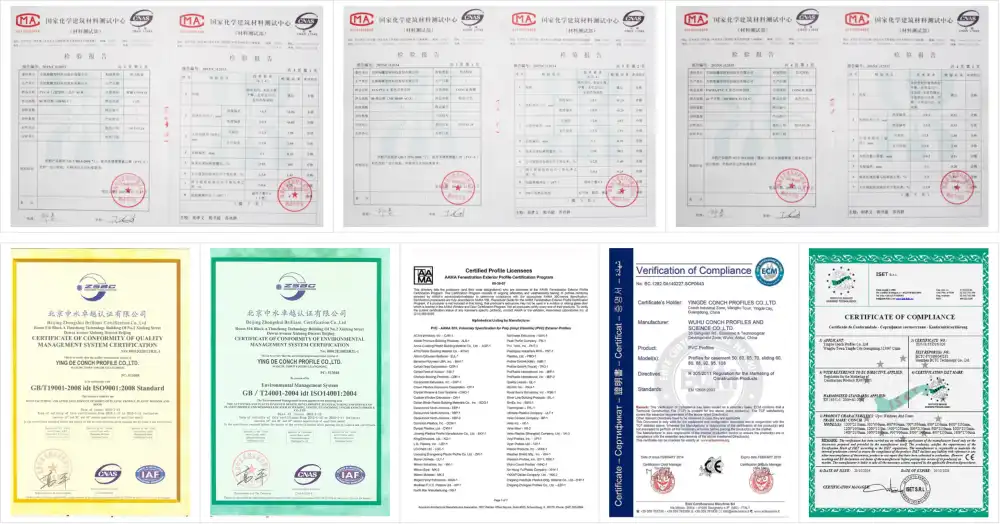

Ready to source superior Aluminum Profiles for your next project? Hunan Haolv Building Materials Co., Ltd. brings 18 years of manufacturing excellence to every order, combining advanced extrusion capabilities with ISO-certified quality control and comprehensive customization services. As a trusted China Aluminum Profiles factory and China Aluminum Profiles supplier, we serve as your reliable China Aluminum Profiles manufacturer offering wholesale Aluminum Profiles with competitive pricing. Request your Aluminum Profiles quotation today for bulk Aluminum Profiles orders and discover our transparent Aluminum Profiles price structure through our detailed Aluminum Profiles Pricelist. Our customized Aluminum Profiles services ensure perfect specification alignment, backed by free technical consultation, solution design support, and sample shipping (freight applicable). From window frames to complete facade systems, our one-stop product support and full-process project follow-up guarantee your success. Contact us at kristin@haolvwindows.com to transform your architectural vision into reality.
