Different Types of Aluminium Profiles for Various Uses

Choosing the wrong aluminum profile can cost you thousands in rework, delays, and structural failures. Whether you're designing a curtain wall system, fabricating industrial machinery, or constructing a commercial building, understanding which aluminum profiles suit your specific application is critical. This comprehensive guide explores the diverse world of aluminum profiles, helping architects, contractors, and manufacturers make informed decisions that ensure structural integrity, cost efficiency, and aesthetic excellence.

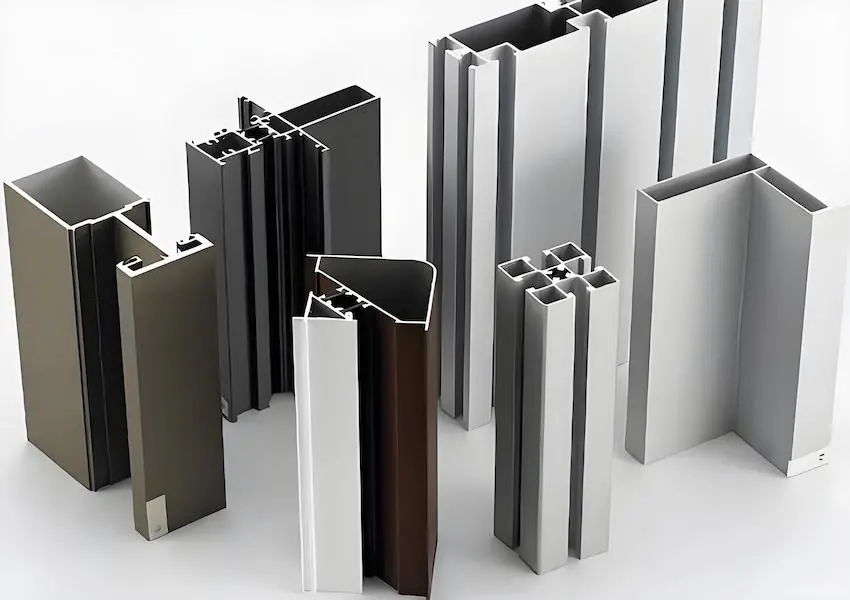

Understanding Aluminum Profiles and Their Manufacturing Process

Aluminum profiles represent one of the most versatile building materials in modern construction and manufacturing. These specially shaped components are created through the extrusion process, where heated aluminum billets are forced through precision-engineered dies to achieve specific cross-sectional designs. This manufacturing technique allows for the creation of complex geometries that would be impossible or prohibitively expensive to achieve through other metalworking processes. The extrusion process begins with aluminum alloy billets being heated to approximately 400-500°C, making the metal malleable without reaching its melting point. The softened aluminum is then pushed through a steel die under immense pressure, emerging in the desired profile shape. This method offers exceptional dimensional consistency and allows manufacturers to produce profiles ranging from simple channels to intricate hollow sections with multiple internal chambers. The versatility of aluminum profiles stems from the material's inherent properties: lightweight construction combined with impressive strength-to-weight ratios, excellent corrosion resistance due to natural oxide layer formation, and superior thermal and electrical conductivity. These characteristics make aluminum profiles indispensable across industries including construction, automotive, aerospace, electronics, and renewable energy sectors. Modern manufacturing facilities employ computer-controlled extrusion lines that maintain precise temperature and pressure parameters throughout production. Following extrusion, profiles undergo various post-processing treatments including stretching to straighten the sections, precision cutting to specified lengths, and surface treatments such as anodizing or powder coating to enhance durability and appearance. Quality aluminum profile manufacturers implement rigorous testing protocols at each production stage, measuring dimensional accuracy, surface quality, and mechanical properties to ensure compliance with international standards.

Primary Categories of Aluminum Profiles for Construction Applications

Solid Aluminum Profiles

Solid aluminum profiles contain no voids or hollow sections, offering maximum material density and structural integrity. These profiles typically take the form of rods, beams, bars, and angle extrusions. The absence of internal cavities makes solid profiles ideal for applications requiring high compressive strength and resistance to bending forces. In construction contexts, solid aluminum profiles serve as reinforcement elements, structural supports, and load-bearing components where weight considerations allow for denser material usage. The manufacturing advantages of solid profiles include simplified die design and lower production costs compared to complex hollow sections. However, the trade-off comes in the form of increased material weight and higher raw material consumption. Engineers specify solid aluminum profiles for applications including handrails, decorative trim, machinery frames, and situations where drilling, threading, or extensive machining operations are anticipated. The uniform cross-section of solid profiles also makes them excellent choices for applications requiring consistent electrical or thermal conductivity throughout the component.

Hollow Beam Aluminum Profiles

Hollow beam profiles feature one or more enclosed internal voids, creating lightweight yet structurally efficient sections. These profiles are among the most commonly specified aluminum extrusions for architectural and industrial applications. The hollow design principle maximizes the moment of inertia relative to the material volume, resulting in excellent bending resistance despite reduced weight. Common hollow profile configurations include square tubes, rectangular sections, circular pipes, and more complex multi-chamber designs. The architectural advantages of hollow aluminum profiles are substantial. These sections provide concealed channels for electrical wiring, plumbing runs, and cable management systems, eliminating the need for external conduit installations. In window and door frame applications, hollow profiles accommodate glazing systems, weather seals, and hardware mounting points within their internal chambers. The thermal performance of hollow sections can be further enhanced through the incorporation of thermal break technology, where insulating material separates interior and exterior aluminum surfaces, dramatically reducing heat transfer through the profile. Industrial applications leverage hollow aluminum profiles extensively in material handling systems, automation frameworks, machine guards, and modular workstation construction. The T-slot design variant, featuring accessible grooves along profile faces, has revolutionized industrial assembly methods by allowing tool-free component attachment and system reconfiguration. This flexibility has made hollow aluminum profiles the foundation of lean manufacturing principles and adaptable production environments.

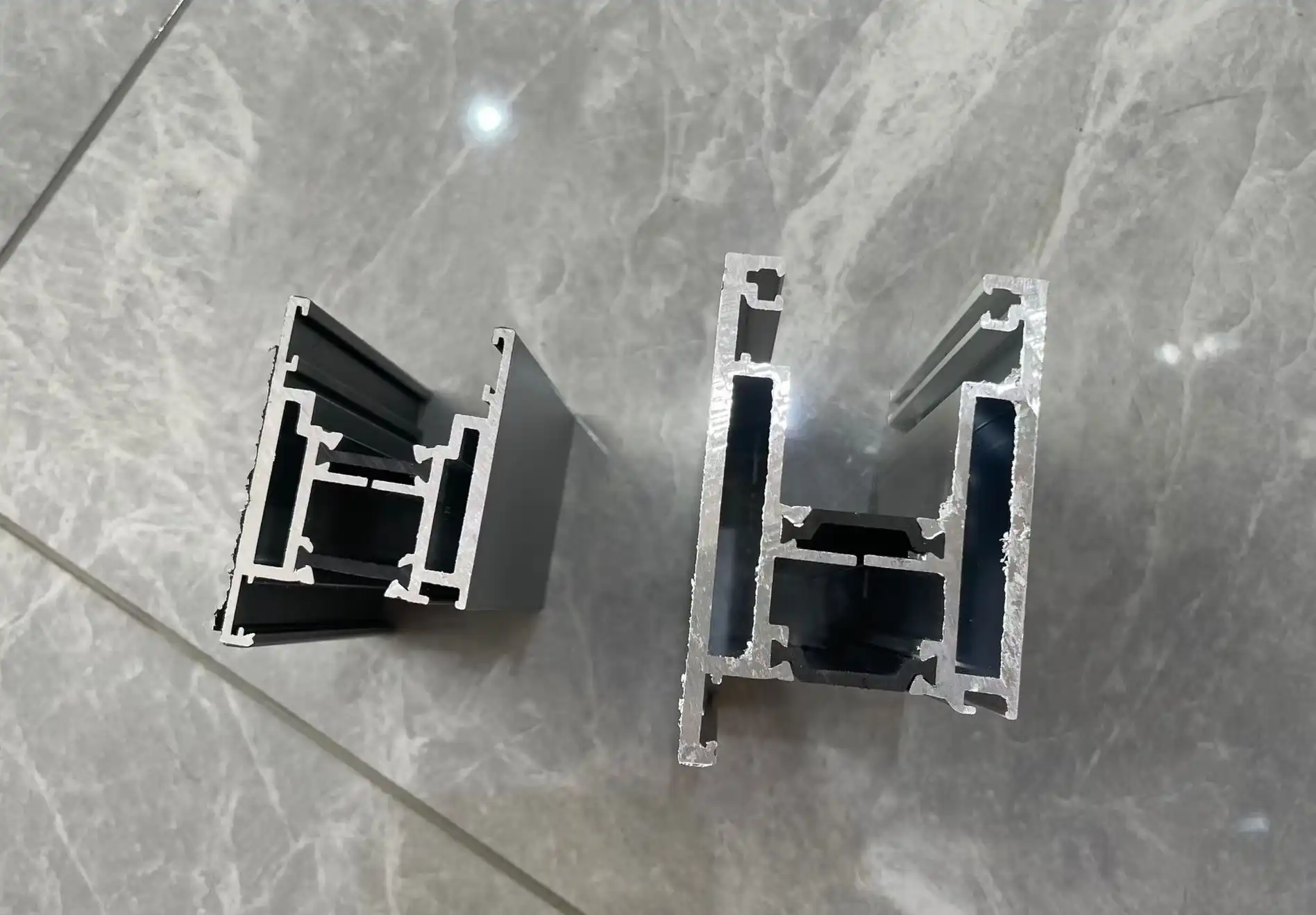

Semi-Hollow Aluminum Profiles

Semi-hollow profiles occupy the middle ground between solid and hollow designs, featuring partially enclosed voids that maintain structural walls on most sides while leaving one edge open or partially open. These profiles typically contain two or fewer partially enclosed chambers where the void area and surrounding wall thickness maintain symmetry relative to the profile's centerline. Semi-hollow configurations offer design flexibility that exceeds fully hollow sections while maintaining dimensional stability during extrusion and subsequent processing. The manufacturing characteristics of semi-hollow aluminum profiles make them particularly suitable for applications requiring asymmetric load distribution or preferential bending resistance in specific directions. The partially open nature of these profiles facilitates easier insertion of reinforcing elements, electrical components, or fastening hardware during assembly operations. In architectural applications, semi-hollow profiles serve effectively as glazing frames, curtain wall components, and facade cladding supports where drainage channels and ventilation pathways must be incorporated into the profile design. Quality considerations for semi-hollow profiles focus on maintaining uniform wall thickness and preventing warping during the cooling phase following extrusion. Advanced die design and controlled cooling protocols ensure these profiles achieve the tight tolerances required for modern building systems. The design versatility of semi-hollow aluminum profiles makes them increasingly popular in custom architectural solutions where standard hollow or solid sections cannot accommodate specific functional requirements.

Specialized Aluminum Profile Types for Specific Applications

Structural Aluminum Profiles for Load-Bearing Applications

Structural aluminum profiles are engineered specifically to support significant loads and provide framework stability in demanding applications. These profiles encompass I-beams, H-sections, channels, angles, and T-sections designed with geometric configurations that optimize load-bearing capacity relative to material volume. Structural profiles typically utilize higher-strength aluminum alloys such as 6061-T6, which undergoes heat treatment to achieve yield strengths exceeding 240 MPa while maintaining the material's favorable corrosion resistance and weldability characteristics. The engineering specifications for structural aluminum profiles mirror steel construction standards while delivering weight savings of approximately 60-65% compared to equivalent steel sections. This weight reduction translates directly into reduced foundation requirements, simplified installation procedures, and lower transportation costs for large construction projects. Modern architectural designs increasingly specify structural aluminum profiles for building frameworks, bridge components, and support structures where the combination of strength, corrosion resistance, and aesthetic appeal creates value beyond traditional steel construction. Quality structural aluminum profiles manufactured by reputable suppliers undergo rigorous testing including tensile strength verification, hardness measurements, and dimensional inspection to ensure compliance with international standards such as ASTM B221 and ISO 6362. The surface treatment of structural profiles typically involves anodizing processes that increase surface hardness and corrosion resistance while providing options for color matching architectural specifications. Thermal barrier variants of structural profiles incorporate polyamide insulating strips between exterior and interior aluminum sections, achieving thermal conductivity reductions of 80% or greater compared to standard aluminum construction.

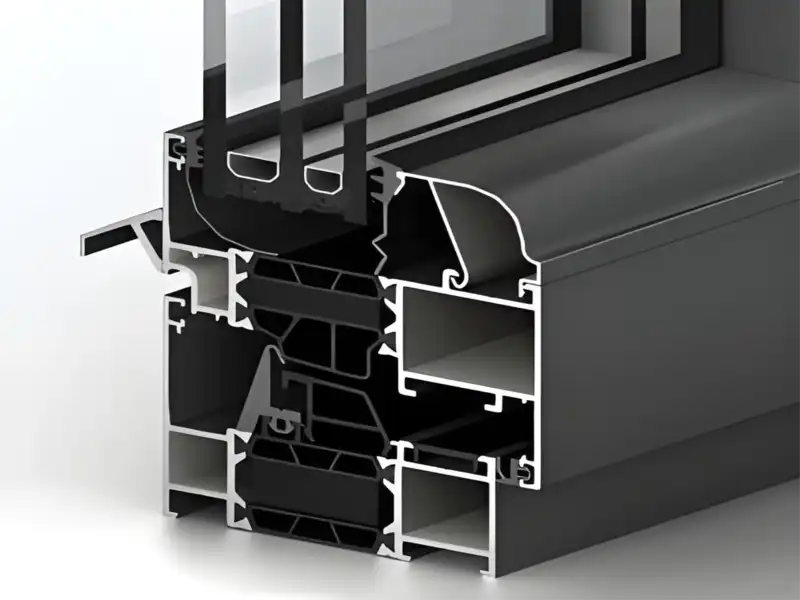

Thermal Break Aluminum Profiles for Energy Efficiency

Thermal break aluminum profiles represent a critical innovation in energy-efficient building design, addressing aluminum's inherent high thermal conductivity which can create thermal bridging in building envelopes. These specialized profiles feature insulating materials, typically polyamide strips, mechanically joined between exterior and interior aluminum sections. The thermal break interrupts the direct heat transfer pathway, dramatically improving the profile's insulation performance without sacrificing structural integrity or aesthetic appeal. The construction methodology for thermal break profiles involves manufacturing separate interior and exterior aluminum sections, then mechanically crimping or bonding these elements together with precision-engineered polyamide components. This polyamide material must possess sufficient structural strength to maintain the mechanical connection while exhibiting minimal thermal conductivity. Quality thermal break systems achieve thermal resistance improvements ranging from 60% to over 80% compared to standard aluminum profiles, making them essential components in high-performance building envelopes targeting LEED certification or passive house standards. Window and door systems incorporating thermal break aluminum profiles deliver measurable energy savings by reducing heat loss during winter months and minimizing solar heat gain during summer periods. The improved thermal performance directly translates to reduced HVAC energy consumption, enhanced occupant comfort, and lower operational costs over the building's service life. Modern curtain wall systems almost universally specify thermal break profiles to meet increasingly stringent energy codes while maintaining the sleek, contemporary aesthetics that make aluminum framing systems desirable in commercial construction.

Custom Aluminum Profiles for Specialized Requirements

Custom aluminum profiles are designed and manufactured to meet unique project specifications that cannot be adequately addressed by standard catalog profiles. The customization process begins with detailed engineering analysis of functional requirements including load capacity, dimensional constraints, mounting provisions, and integration with other building systems. Design engineers work closely with extrusion specialists to develop die designs that achieve the required cross-sectional geometry while maintaining manufacturability and cost-effectiveness. The advantages of custom aluminum profiles extend beyond simple dimension modification. Complex internal geometries can incorporate mounting channels, wire management pathways, drainage systems, and hardware attachment points precisely where needed, eliminating secondary machining operations and simplifying installation procedures. Custom profiles can integrate multiple functional requirements into a single extruded section, reducing component count, assembly time, and overall system costs despite the higher per-unit cost of custom tooling. Industries utilizing custom aluminum profiles span automotive manufacturing, industrial equipment production, renewable energy systems, and specialized architectural applications. Solar panel mounting systems, for instance, often employ custom profiles optimized for specific installation methods and load conditions. Electronic equipment enclosures leverage custom aluminum profiles with integrated EMI shielding features and precision-machined mounting surfaces. The initial investment in custom die tooling becomes economically justified when production volumes exceed several hundred linear meters, particularly for applications where the custom profile eliminates multiple standard components and assembly operations.

Industry Applications and Selection Criteria for Aluminum Profiles

The selection of appropriate aluminum profiles demands careful consideration of multiple technical, economic, and aesthetic factors. Engineers and specifiers must evaluate load requirements, environmental exposure conditions, joining methods, surface finish requirements, and compliance with applicable building codes and industry standards. The aluminum alloy selection significantly impacts profile performance, with 6063 alloy preferred for architectural applications requiring excellent surface finish and extrudability, while 6061 alloy serves structural applications demanding higher strength characteristics. In residential and commercial construction, aluminum profiles form the framework for windows, doors, curtain walls, storefronts, and canopy systems. The material's corrosion resistance makes it particularly valuable in coastal environments where salt exposure rapidly degrades steel components. The design flexibility of aluminum extrusions allows architects to achieve narrow sightlines and large glazing expanses that define contemporary architectural aesthetics. Powder coating and anodizing treatments provide virtually unlimited color options, enabling seamless integration with overall building design concepts.

Industrial and automotive applications leverage aluminum profiles in material handling equipment, safety guarding, machine bases, vehicle body structures, and transportation equipment. The automotive industry's ongoing lightweighting initiatives increasingly specify aluminum profiles to reduce vehicle mass and improve fuel efficiency without compromising safety performance. Manufacturing facilities employ modular aluminum profile systems to construct reconfigurable workstations, assembly lines, and material flow systems that adapt to changing production requirements with minimal downtime and capital investment. Quality assurance in aluminum profile selection requires verification of material certifications, dimensional tolerances, surface finish specifications, and compliance with relevant standards. Reputable manufacturers provide comprehensive technical documentation including material test reports, dimensional certification, and performance data supporting design calculations. The long-term performance of aluminum profiles depends critically on proper installation practices, compatible fastening methods, and appropriate surface protection for the anticipated service environment.

Conclusion

Aluminum profiles offer unmatched versatility, combining structural performance, aesthetic flexibility, and lifecycle value across diverse applications. Understanding the distinctions between profile types and manufacturing standards ensures optimal material selection for any project requirement.

Cooperate With Hunan Haolv Building Materials Co., Ltd.

When you're ready to transform your architectural vision into reality with superior aluminum profiles, Hunan Haolv Building Materials Co., Ltd. stands ready as your trusted manufacturing partner. With over 18 years of specialized experience in aluminum and UPVC window and door systems, our company delivers the perfect balance of technical expertise, manufacturing capability, and customer service excellence. Our state-of-the-art production facilities utilize advanced CNC machining centers, automatic welding equipment, and precision assembly systems, ensuring every profile meets exacting international quality standards.

As a leading China Aluminum Profiles factory, China Aluminum Profiles supplier, and China Aluminum Profiles manufacturer, we offer comprehensive solutions including wholesale Aluminum Profiles, competitive Aluminum Profiles quotation services, bulk Aluminum Profiles supply capabilities, transparent Aluminum Profiles price structures, detailed Aluminum Profiles pricelist options, and fully customized Aluminum Profiles engineered to your exact specifications. Our partnership with Conch New Materials ensures access to premium-grade raw materials backed by comprehensive certification documentation. We provide one-stop product support encompassing everything from initial design consultation through final installation guidance, free technical consultation and solution design services, complimentary sample shipping for project evaluation, and dedicated full-process project follow-up ensuring your complete satisfaction.

Our 24-hour customer service team stands ready to address your inquiries and provide rapid quotation turnaround. Contact us today at kristin@haolvwindows.com to discuss your aluminum profile requirements and discover how our manufacturing excellence can elevate your next project. Save this resource for future reference whenever you need reliable aluminum profile solutions.

References

1. Smith, J.R. "Aluminum Extrusion Technology and Applications in Modern Construction." Journal of Materials Engineering and Performance, Volume 28, 2019.

2. Anderson, M.K. "Structural Design with Aluminum Profiles: Guidelines and Best Practices." American Institute of Steel Construction, 2021.

3. Chen, L. and Williams, P. "Thermal Performance of Aluminum Window Systems with Thermal Break Technology." Building and Environment, Volume 156, 2020.

4. Thompson, R.A. "Manufacturing Processes for Aluminum Extrusion Profiles." Materials Science and Engineering Reports, Volume 142, 2018.

5. International Aluminum Institute. "Aluminum in Building and Construction: Design Manual for Architectural Applications." Fourth Edition, 2022.
