Multi-Panel Folding Door How to Open an Entire Wall to the Outdoors

Imagine retracting an entire wall of glass to create a seamless transition between your living room and garden. A multi-panel folding door (also called a bi‑fold or concertina door) makes this possible. Composed of several hinged door panels that fold and stack neatly to one or both sides of the opening, these doors open up to 90% of the wall width – far more than sliding doors. Constructed from high‑strength aluminium, they offer slim sightlines, exceptional durability, and smooth operation. This comprehensive guide covers everything you need to know about multi‑panel folding doors.

Understanding the Multi-Panel Folding Door

A multi-panel folding door consists of multiple narrow door panels (typically 400mm to 1000mm wide) connected by vertical hinges. The entire assembly runs on a top‑hung or bottom‑rolling track with stainless steel rollers. When opened, the panels concertina against each other, stacking at one or both ends, clearing up to 90% of the total opening width. A convenient “traffic door” – a single panel that opens independently – is often integrated for everyday access.

The frames and panels are extruded from high‑grade 6063‑T5 or 6061‑T6 aluminium alloy, chosen for its strength, slim profile capability, and corrosion resistance. For exterior applications, multi-panel folding doors incorporate thermal break technology – a polyamide insulating strip between interior and exterior aluminium sections – to prevent heat transfer and condensation. This makes them suitable for all climates.

The hardware system is critical. Quality folding doors use stainless steel rollers, heavy‑duty piano hinges, multi‑point locking mechanisms, and continuous EPDM weather seals between panels and along the top, bottom, and sides. The doors can be designed to fold inward or outward. Double or triple glazing with Low‑E coatings and argon gas fill achieves U‑values as low as 1.2‑1.8 W/m²K.

Key Advantages of Multi-Panel Folding Doors

Maximum opening width is the defining advantage. A multi-panel folding door can open up to 90% of the wall, creating a true indoor‑outdoor flow. For entertaining, this allows guests to move freely between inside and outside without bottlenecks. Unlike sliding doors that leave one panel fixed, folding doors can stack all panels out of the way.

Unobstructed views. The slim aluminium frames maximise glass area. When closed, the multiple panels still provide expansive views with minimal visual interruption. With large‑panel configurations (fewer, wider panels), the sightlines are even cleaner.

Excellent energy efficiency. Thermal break aluminium profiles combined with double or triple glazing, Low‑E coatings, and argon gas fill achieve U‑values of 1.2‑1.8 W/m²K, comparable to fixed windows. This keeps your home comfortable year‑round.

Durability and low maintenance. Aluminium does not rust, rot, warp, or corrode. Powder‑coated finishes (any RAL colour) resist UV fading and require only occasional cleaning with mild soap and water. No painting, no staining.

Smooth, quiet folding action. Stainless steel rollers and precision‑engineered hinges allow even heavy double‑glazed panels to fold effortlessly. High‑quality systems are rated for 20,000+ cycles.

Enhanced security. Multi‑point locking systems (typically 3‑7 points) engage the panels to the header, threshold, and each other. Laminated or tempered glass options add further protection. The hinges are designed to resist tampering.

Versatile configurations. Doors can be designed to stack on the left, right, or both sides (bi‑parting). A traffic door allows quick access without unfolding the entire system. Panels can be of equal width or with a wider traffic door.

Glass and Hardware Options for Multi-Panel Folding Doors

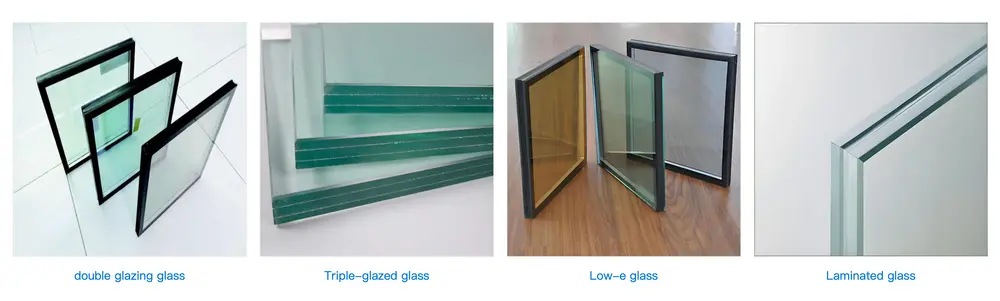

Glass configurations:

• Double glazing (5mm+20A+5mm): Standard Low‑E + argon, U‑value ~1.6 W/m²K.

• Triple glazing (5mm+12A+5mm+12A+5mm): For extreme climates or noise reduction.

• Laminated glass: PVB interlayer for security and sound reduction.

• Tempered glass: Safety glazing required in many codes.

• Tinted or reflective glass: Reduces solar heat gain.

Hardware specifications:

• Stainless steel rollers: Top‑hung or bottom‑rolling; adjustable.

• Multi‑point locking: 3‑7 locking points, stainless steel components.

• Piano hinges: Continuous stainless steel hinges for panel‑to‑panel connection.

• Handles: Flush or pull handles in various finishes (matte black, brushed stainless, etc.).

• Thresholds: Low‑profile or flush; thermal break options.

• Insect screens: Retractable screens that follow the folding motion.

Applications for Multi-Panel Folding Doors

Residential homes – living rooms opening to patios, kitchens to gardens, and master bedrooms to terraces.

Commercial properties – restaurants, cafes, hotels, and retail stores – creating open‑air dining areas and inviting storefronts.

Apartments with balconies – maximising the opening to a narrow balcony space.

Pool houses and garden rooms – blending indoor and outdoor environments.

Frequently Asked Questions About Multi-Panel Folding Doors

Q: How much space do folding doors need when fully open?
A: The stacked panels typically occupy 100‑200mm of depth (depending on panel width and number) from the frame on the stacking side. The rest of the opening becomes completely clear – up to 90% of the wall width.

Q: Are multi-panel folding doors secure?
A: Yes. Modern folding doors feature multi‑point locking systems (3‑7 points) that lock each panel to the header, threshold, and adjacent panels. The hinges are designed to resist tampering. Laminated glass and security screens are also available.

Q: Can folding doors be used in coastal areas?
A: Absolutely. Aluminium is highly resistant to salt spray corrosion. Specify marine‑grade powder coating (AAMA 2605) and stainless steel hardware for maximum durability in coastal environments.

Q: How do I maintain multi-panel folding doors?
A: Clean frames and glass with mild soap and water. Lubricate rollers and tracks annually with silicone spray. Inspect weather seals for damage. Aluminium never needs painting.

Q: What is the typical lifespan?
A: 30‑50 years for the aluminium frame. Rollers and seals may need replacement after 15‑20 years. The powder‑coated finish can last 30+ years. With proper care, they will serve reliably for decades.

Installation and Long‑Term Value

Professional installation is essential. The header track must be perfectly level and securely anchored to the structure. The floor track (if bottom‑rolling) must be accurately positioned. Proper flashing and sealing prevent water infiltration. Rollers and hinges must be adjusted for smooth folding.

The long‑term value includes increased home value, energy savings, low maintenance, and a transformative lifestyle – connecting indoor and outdoor spaces for entertaining, dining, and everyday living.

Conclusion

The multi-panel folding door is the ultimate solution for opening your home to the outdoors. With up to 90% clear opening width, slim aluminium sightlines, thermal break efficiency, and multi‑point security, it outperforms sliding doors in both aesthetics and functionality. Whether for a new home or a renovation, a folding door creates a breathtaking connection to nature.

Cooperate With Hunan Haolv Building Materials Co., Ltd.

As a leading manufacturer of high‑performance aluminium door and window systems, Hunan Haolv Building Materials Co., Ltd. brings over eighteen years of specialised expertise to the production of multi-panel folding doors. Our folding doors are crafted from premium 6063‑T5 aluminium with thermal break technology, stainless steel rollers and hinges, and multi‑point locking systems. We offer double/triple glazing, Low‑E coatings, any RAL colour finish, low‑profile thresholds, and integrated insect screens. Every product undergoes rigorous ISO‑certified quality management. For detailed quotations, pricelist information, or to discuss your specific project requirements, please contact us today at kristin@haolvwindows.com.
