Opening Tilt and Turn Windows The Ultimate in Ventilation Flexibility and Safety
What if one window could offer two distinct opening modes? That is the promise of opening tilt and turn windows. With a single handle movement, you can choose tilt mode for secure, rain‑safe ventilation or turn mode for full opening and easy cleaning. This ingenious European design has become increasingly popular worldwide. This comprehensive guide explores the features, benefits, and selection criteria for opening tilt and turn windows.
Understanding Opening Tilt and Turn Windows

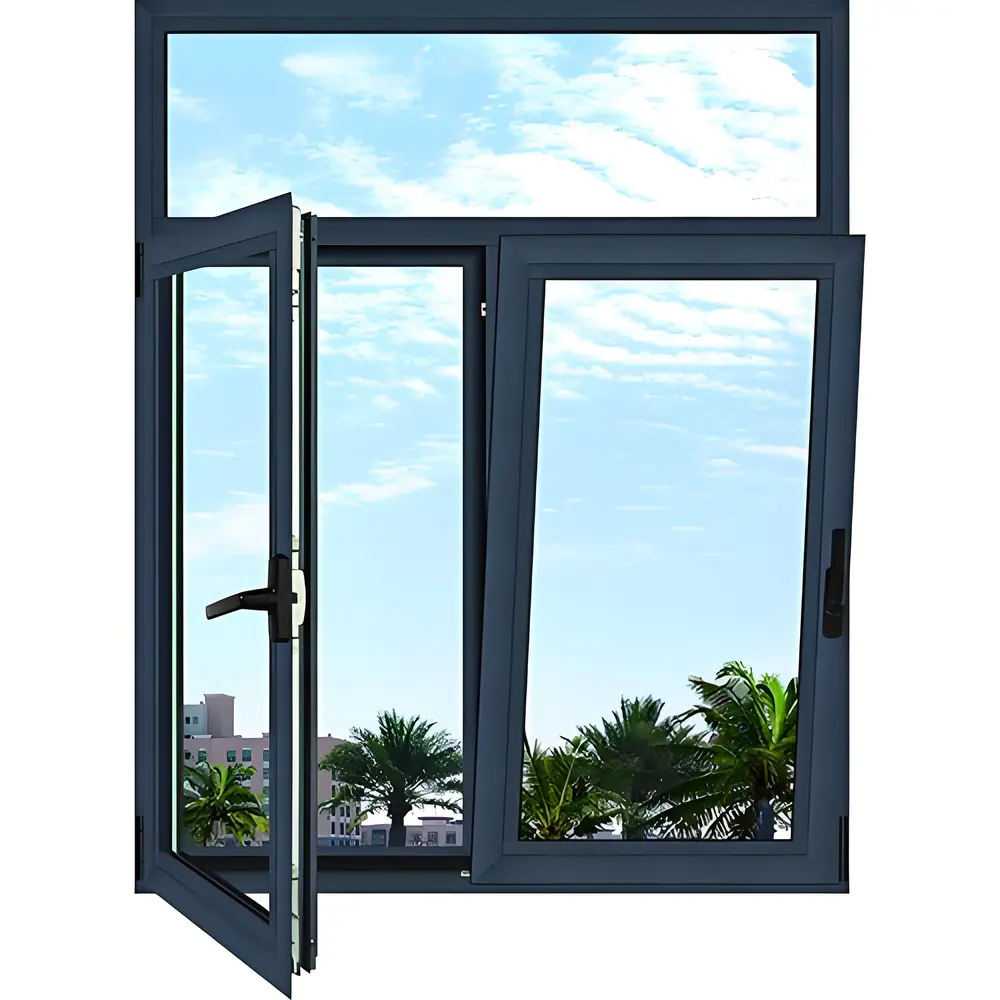

An opening tilt and turn window has a multi‑point locking mechanism that allows the sash to operate in two different ways. When the handle is rotated 90 degrees to the horizontal position, the sash tilts inward from the top, creating a gap at the top for secure, draft‑free ventilation. When the handle is rotated 180 degrees to the vertical downward position, the sash swings inward like a casement window, providing full access for cleaning and maximum airflow.
The frame and sash are typically made from UPVC (vinyl) or thermally broken aluminium. Multi‑chambered profiles provide excellent insulation. The hardware system is the heart of the tilt‑turn window, incorporating precision‑engineered gears, hinges, and locking pins that operate through a single central handle. High‑quality opening tilt and turn windows use stainless steel components rated for 20,000+ cycles.
The tilt mode is particularly valuable for ventilation during rain, as the top‑hinged opening directs water away. The turn mode allows the sash to open fully inward, making exterior glass cleaning possible from inside – a major safety advantage for upper floors.
Key Advantages of Opening Tilt and Turn Windows
Two ventilation modes offer unparalleled flexibility. Tilt mode provides continuous background ventilation without security or rain concerns – ideal for night‑time use. Turn mode opens the window fully for rapid air exchange or cleaning.
Enhanced security. In tilt mode, the window is locked at the sides and bottom; in turn mode, it is locked at the top and sides. The multi‑point mechanism makes forced entry extremely difficult. Many models allow key‑locking the handle.
Safe ventilation during rain. Tilt mode opens at the top, so rain cannot blow directly into the room. You can leave windows open during showers without worrying about water damage – essential for bathrooms, kitchens, and coastal homes.
Easy cleaning from inside. To clean the exterior glass, simply turn the handle to turn mode and pull the sash fully inward. The entire outer glass surface becomes accessible from inside your home – no ladders, no leaning out.
Excellent energy efficiency. Multi‑chambered frames and double/triple glazing with Low‑E coatings achieve U‑values as low as 1.1–1.6 W/m²K. The compression seal delivers outstanding airtightness.
Child safety. Tilt mode provides ventilation while the opening gap is too small for a child to fall through. Turn mode can be fitted with restrictors to limit opening angle.
Space‑saving operation (in tilt mode). Tilt mode uses minimal interior space. Turn mode requires clearance for the inward‑swinging sash, so furniture placement should consider that.
Glass and Hardware Options for Opening Tilt and Turn Windows

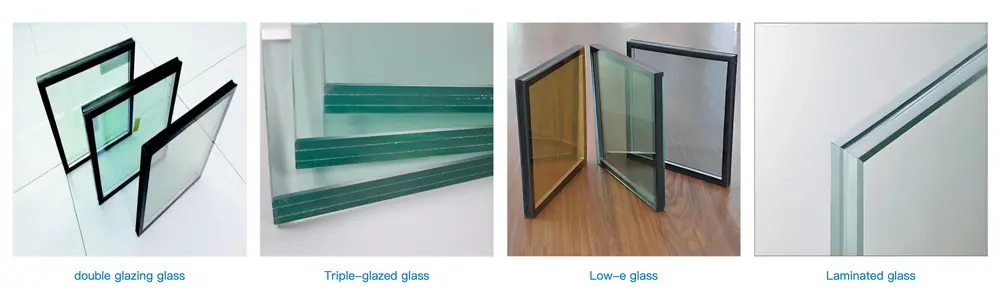

Glass configurations:
Double glazing (5mm+20A+5mm): Standard Low‑E + argon.
Triple glazing (5mm+12A+5mm+12A+5mm): Extreme climates or noise reduction.
Laminated glass: Security and sound reduction.
Tempered glass: Safety glazing.
Hardware specifications:
Multi‑point locking: 5–9 locking points; stainless steel gears and pins.
Central handle: Ergonomic; key‑locking option.
Concealed hinges: Stainless steel, adjustable.
Restrictors: For turn mode to limit opening for safety.
Integrated insect screens: Retractable, compatible with both modes.
Applications for Opening Tilt and Turn Windows
Residential homes – bedrooms (night ventilation), living rooms, kitchens, bathrooms.
Apartments and high‑rise buildings – tilt mode provides safe ventilation without fall risk; turn mode allows easy cleaning from inside.
Passive house and low‑energy buildings – excellent airtightness and thermal performance.
Commercial applications – offices, hotels, healthcare facilities.
Frequently Asked Questions About Opening Tilt and Turn Windows
Q: Do tilt and turn windows require more interior space than casement windows?
A: In turn mode, the sash swings inward, so you need clearance for the full opening. In tilt mode, only a small gap at the top is needed. For most rooms, the inward swing is not a problem as you can use tilt mode most of the time.
Q: Are tilt and turn windows more expensive than standard casement windows?
A: Yes, typically 20–40% more due to the complex multi‑point hardware. The dual‑mode functionality and cleaning convenience justify the premium for many homeowners.
Q: Can tilt and turn windows be used in high‑rise buildings?
A: Yes, they are well‑suited for high‑rise applications. The inward‑opening design complies with codes that restrict outward‑opening windows. Tilt mode provides safe ventilation without fall risk.
Q: How do I clean the exterior glass?
A: Simply turn the handle to the 180‑degree turn mode and pull the sash fully inward. The entire exterior surface becomes accessible from inside.
Q: What is the typical lifespan?
A: 30–40 years for the UPVC frame; 40–50 for aluminium. Hardware may need replacement after 15–20 years. Regular lubrication of moving parts is recommended.
Installation and Long‑Term Value
Professional installation is essential. The frame must be perfectly square and level. The hardware must be precisely adjusted to ensure smooth operation and proper sealing. The handle mechanism must be correctly calibrated.
Long‑term value includes energy savings, no need for professional exterior cleaning, enhanced security, and year‑round comfort.
Conclusion
Opening tilt and turn windows offer unmatched ventilation flexibility, security, and convenience. The ability to switch between tilt and turn modes adapts to changing weather, security needs, and cleaning requirements. They are the premium choice for modern homes and apartments.
Cooperate With Hunan Haolv Building Materials Co., Ltd.

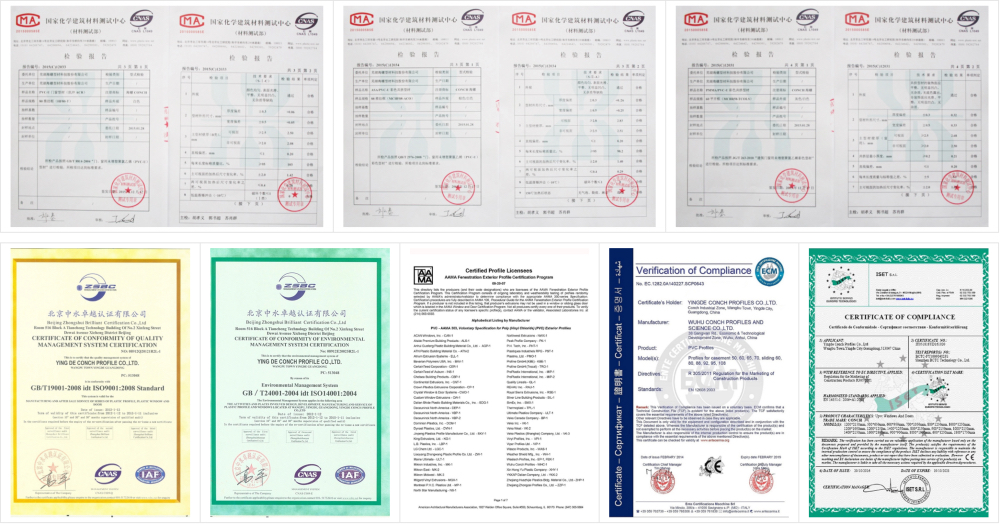

As a leading manufacturer of high‑performance window systems, Hunan Haolv Building Materials Co., Ltd. brings over eighteen years of specialized expertise to the production of opening tilt and turn windows. Our tilt and turn windows are manufactured using premium virgin UPVC material with multi‑chamber profiles, steel reinforcement, and precision stainless steel hardware (7–9 locking points). We offer double or triple glazing, Low‑E coatings, any RAL color or woodgrain finish, and key‑locking handle options. Every product undergoes rigorous ISO‑certified quality management. For detailed quotations, pricelist information, or to discuss your specific project requirements, please contact us today at kristin@haolvwindows.com.
