UPVC Door and Window Profiles What Makes Them the Backbone of Modern Fenestration

Behind every high-performance UPVC window or door lies a critical component: the profile. UPVC door and window profiles are the extruded shapes that form frames, sashes, and thresholds. The quality of these profiles determines the energy efficiency, durability, security, and appearance of the finished product. But not all UPVC profiles are created equal. This comprehensive guide explores the materials, design features, and selection criteria for UPVC door and window profiles.

Understanding UPVC Door and Window Profiles

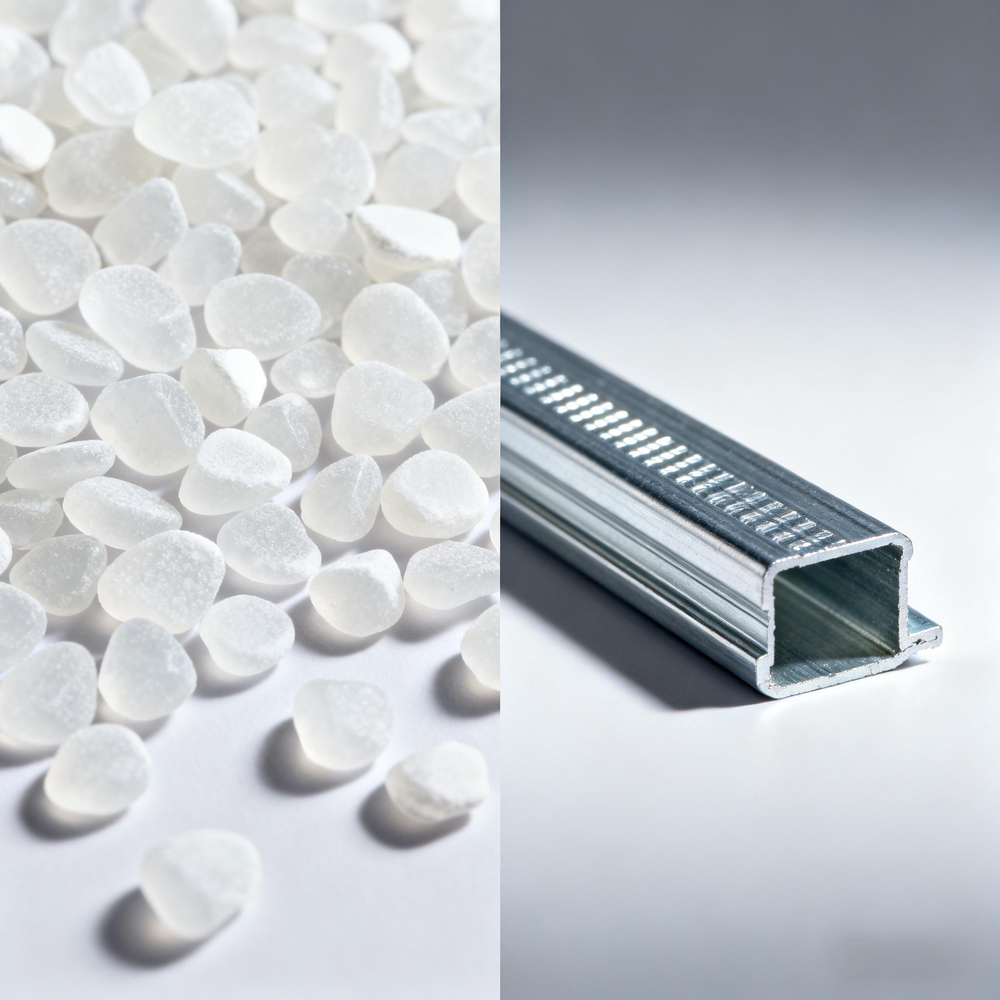

UPVC door and window profiles are manufactured through an extrusion process where heated UPVC material is forced through a steel die to create specific cross-sectional shapes. The raw material is virgin UPVC (unplasticized polyvinyl chloride) compounded with additives including heat stabilizers, UV stabilizers, impact modifiers, processing aids, and pigments.

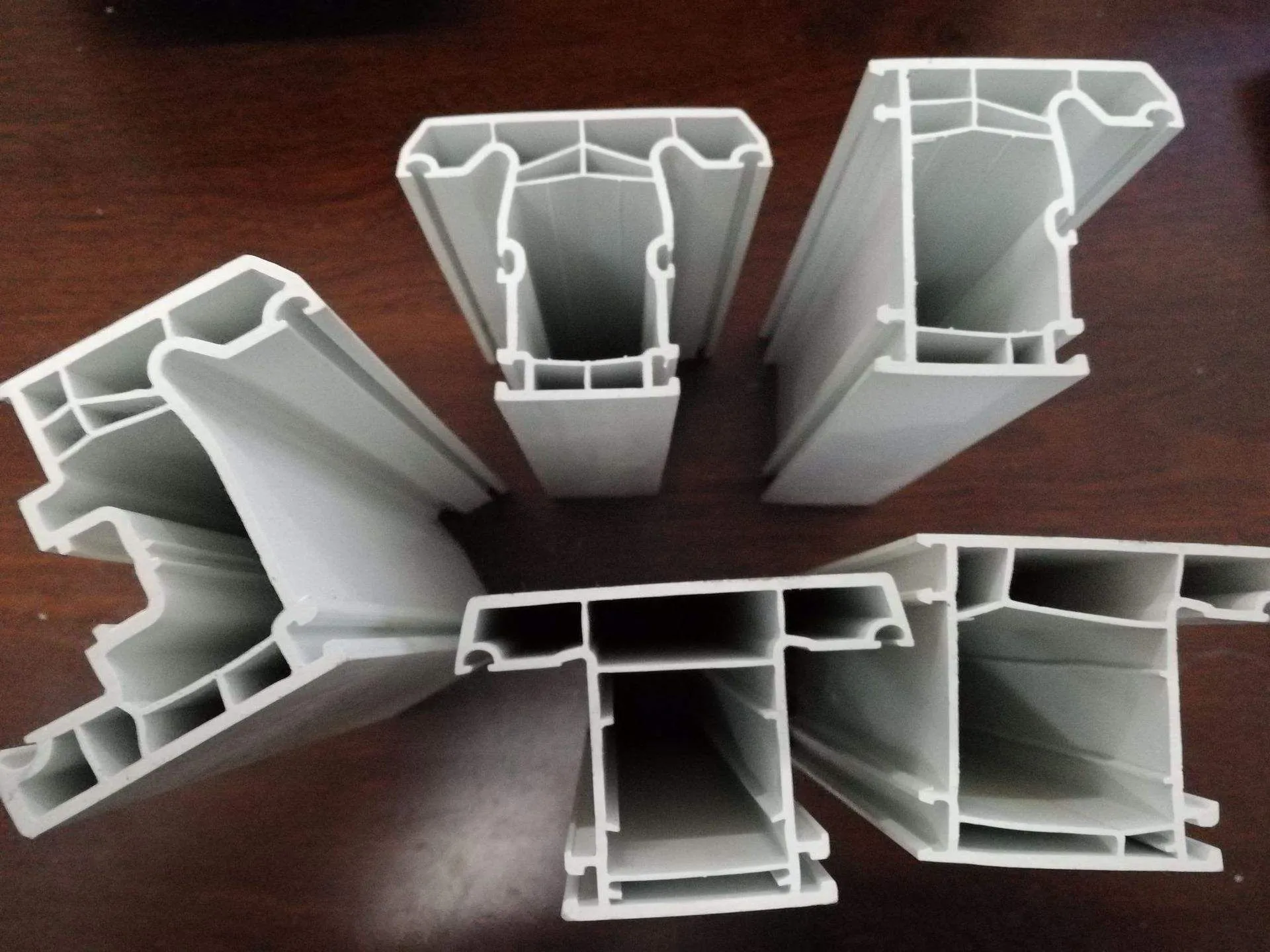

The profiles feature multi-chambered designs—multiple hollow cavities running the length of the profile. These chambers serve two critical functions: they provide structural rigidity without excessive weight, and they trap air to create a natural thermal barrier. The number of chambers typically ranges from three to seven, with more chambers generally providing better insulation.

Steel reinforcement is inserted into the main chambers of larger profiles such as door frames and casement sashes. This galvanized or stainless steel insert, typically 1.2mm to 2.0mm thick, provides the structural strength needed for larger spans and heavy glass units. Without reinforcement, UPVC profiles would deflect under wind loads or the weight of double glazing.

The visible surfaces of UPVC door and window profiles can be finished in several ways. White profiles are typically co-extruded with a UV-resistant capstock layer. Colored profiles are produced through co-extrusion of a colored capstock or through lamination with decorative foils. Woodgrain finishes are achieved through high-quality laminates that replicate oak, mahogany, walnut, and other timbers.

Key Design Features of Quality UPVC Profiles

Multi-chamber geometry is the most important thermal design feature. Each chamber traps a layer of still air, which is an excellent insulator. Premium UPVC door and window profiles feature asymmetrical chamber designs that maximize thermal performance while maintaining structural integrity. The outer walls are typically thicker than internal walls to resist impact and weathering.

Thermal break integration is inherent to UPVC, unlike aluminum that requires separate polyamide strips. The low thermal conductivity of UPVC (approximately 0.16 W/mK) means that properly designed multi-chamber profiles achieve excellent U-values without additional components.

Steel reinforcement cavities are strategically positioned where strength is needed most—hinge sides, lock sides, and meeting rails. The cavities are designed to accept standard C-shaped or rectangular steel inserts that are secured with screws or friction fits.

Gasket grooves are precision-molded into the profiles to accept EPDM or silicone weather seals. These grooves must maintain consistent dimensions to ensure uniform gasket compression when the window or door is closed.

Drainage channels are incorporated into the bottom of frames to allow any water that penetrates the outer seals to escape to the exterior. Proper drainage design prevents water from accumulating inside the profile chambers.

Reinforced corners are achieved through precision welding of mitered profile ends. High-quality welding creates a corner that is as strong as the original profile material. Poor welding results in weak corners that can separate under stress.

Performance Characteristics of UPVC Profiles

Thermal performance is measured by the U-value of the finished window or door. A profile with more chambers, thicker external walls, and optimized geometry achieves lower U-values. Premium UPVC door and window profiles enable finished U-values of 1.1 to 1.6 W/m²K with double glazing, and below 0.9 W/m²K with triple glazing.

Structural strength is determined by the profile wall thickness and steel reinforcement. Quality profiles have external wall thickness of 2.5mm to 3.5mm. The steel insert should be at least 1.5mm thick for standard applications and 2.0mm for large doors or high-wind areas.

Weather resistance depends on the quality of the UPVC compound. UV stabilizers prevent yellowing and surface degradation. Heat stabilizers maintain dimensional stability during temperature extremes. Impact modifiers prevent cracking from accidental impacts.

Durability of quality UPVC profiles exceeds 30 to 40 years. The material does not rot, corrode, or support mold growth. Color stability depends on the quality of the capstock or laminate.

Applications for UPVC Door and Window Profiles

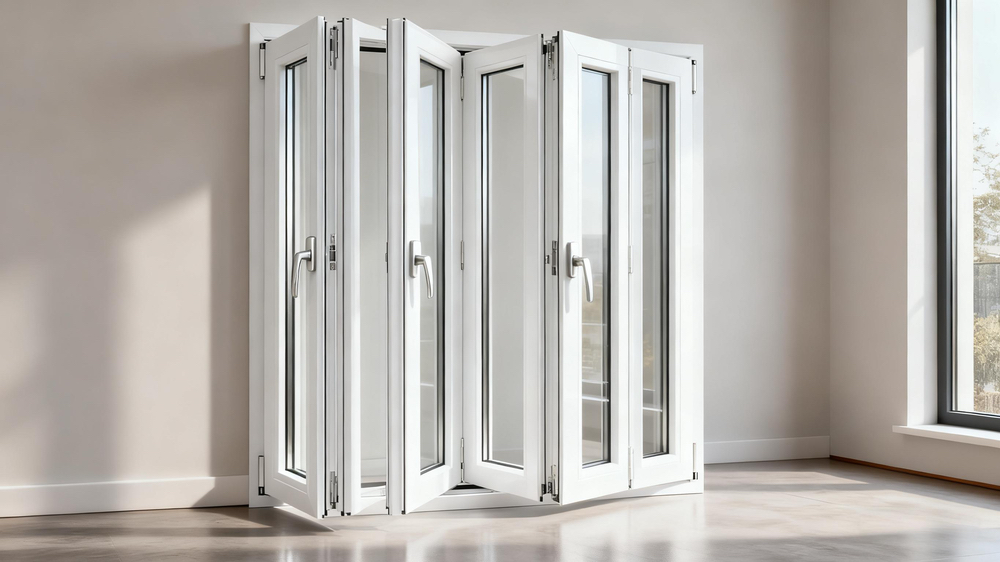

Residential windows and doors are the most common application. Profiles are extruded for casement windows, sliding windows, tilt and turn windows, sliding doors, swing doors, and French doors.

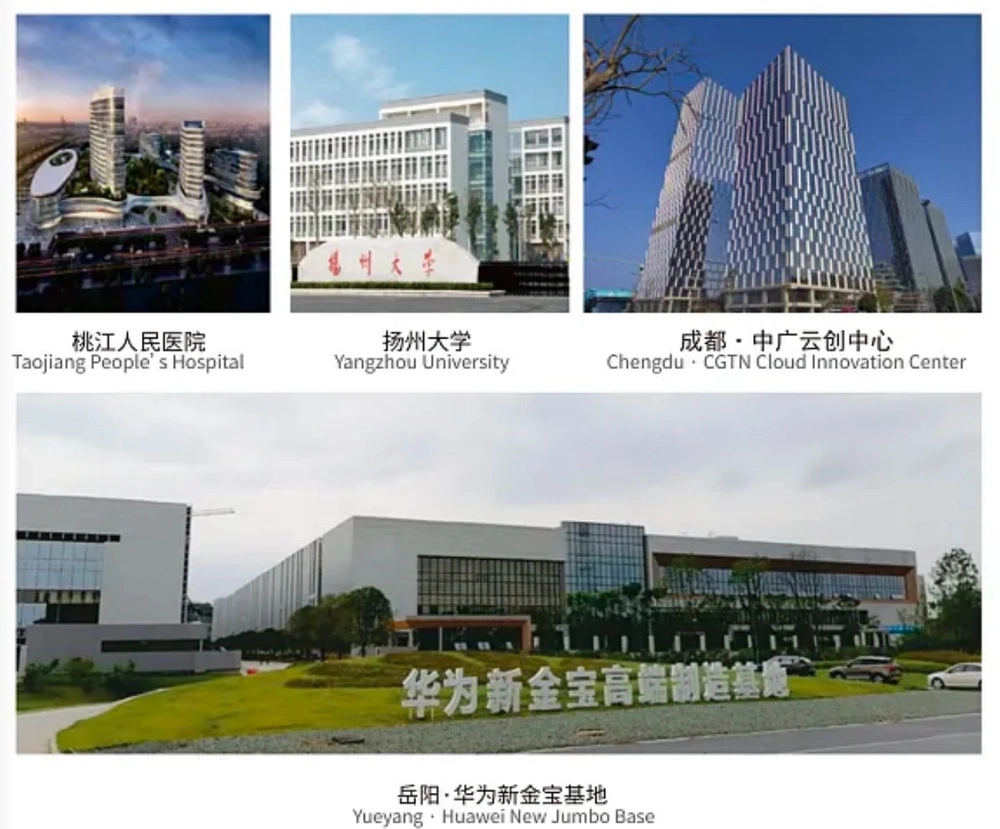

Commercial buildings including offices, hotels, and schools use UPVC profiles for their durability, low maintenance, and energy efficiency.

High-rise buildings require profiles with enhanced steel reinforcement to withstand higher wind loads. Special attention to profile design is needed for buildings over 10 stories.

Coastal environments benefit from UPVC‘s corrosion resistance. Unlike aluminum, UPVC does not pit or corrode in salt spray.

Frequently Asked Questions About UPVC Door and Window Profiles

Q: How many chambers should a quality UPVC profile have?
A: For standard residential applications, 5 to 7 chambers provide excellent thermal performance. Three-chamber profiles are entry-level and suitable for mild climates. Seven-chamber or more profiles are premium and ideal for cold climates.

Q: Is steel reinforcement always necessary?
A: No. For small windows (under 600mm wide) with single glazing, reinforcement may not be needed. For larger windows, doors, or any unit with double or triple glazing, steel reinforcement is essential to prevent deflection.

Q: What is the difference between virgin UPVC and recycled UPVC?
A: Virgin UPVC is made from new material with consistent properties and no contaminants. Recycled UPVC may contain impurities that reduce strength, impact resistance, and UV stability. Quality profiles use virgin UPVC.

Q: Can UPVC profiles be recycled at end of life?
A: Yes, UPVC is recyclable. Many manufacturers have take-back programs. However, steel reinforcement must be removed before recycling.

Q: How do I identify quality UPVC profiles?

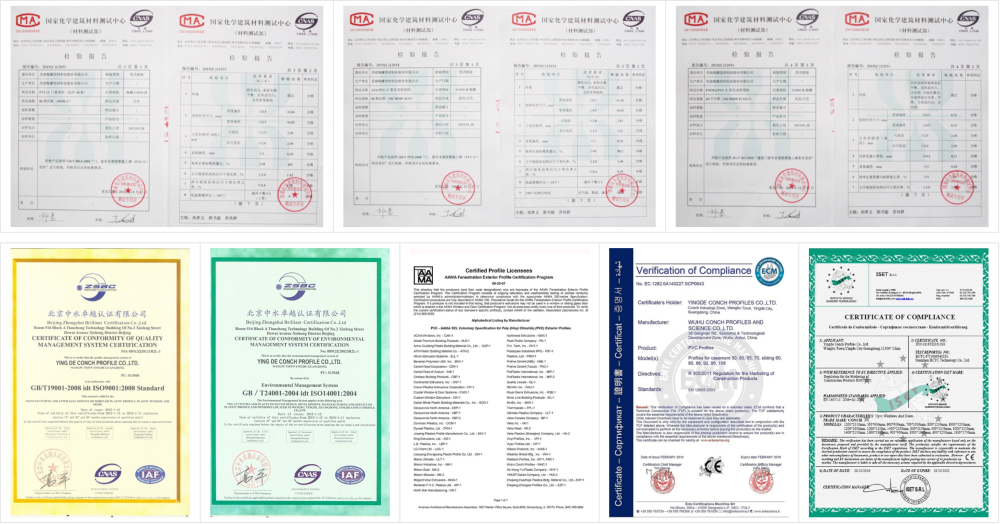

A: Look for profiles with smooth, glossy surfaces, consistent wall thickness, sharp corner details, and no visible voids or bubbles. Check for manufacturer certifications such as ISO 9001 and product standards like BS 7412 or EN 12608.

Selection and Specification Tips

When selecting UPVC door and window profiles, consider the climate zone (more chambers for colder climates), the size of the opening (larger openings require thicker steel reinforcement), the glazing weight (heavier glass requires stronger profiles), and the color and finish requirements (co-extruded colors are more durable than laminates for high UV exposure areas).

Conclusion

UPVC door and window profiles are the foundation of high-performance fenestration. Multi-chamber geometry, steel reinforcement, precision gasket grooves, and quality material compounds work together to create windows and doors that are energy efficient, durable, secure, and low maintenance. Understanding profile design helps specifiers and homeowners make informed choices.
