UPVC Swing Doors The Durable Energy-Efficient Entrance for Modern Homes

The entrance door is more than just an entry point—it is a statement of style, a barrier against the elements, and a critical component of home energy efficiency. Among the many options available, UPVC swing doors have gained widespread popularity for their exceptional combination of durability, thermal performance, low maintenance, and aesthetic versatility. Whether used as a front door, back door, or patio entrance, these doors deliver reliable performance in all climates. This comprehensive guide explores the features, benefits, and selection criteria for UPVC swing doors, providing the information needed to make an informed choice for your home or project.

What Are UPVC Swing Doors? Design and Construction

A UPVC swing door is a hinged door manufactured from unplasticized polyvinyl chloride (UPVC), a rigid, durable polymer that contains no plasticizers. Unlike wood that can rot, warp, or crack, or steel that can rust, UPVC maintains its structural integrity and appearance for decades with minimal maintenance. The “swing” designation indicates that the door operates on hinges, swinging inward or outward rather than sliding or folding.

The frame and door leaf of a UPVC swing door are extruded from multi-chambered UPVC profiles. These hollow chambers serve two critical purposes: they provide structural rigidity without excessive weight, and they trap air to create a natural thermal barrier. The typical wall thickness of UPVC profiles for swing doors ranges from 2.5mm to 3.5mm, with steel reinforcement inserted into the main chambers to enhance strength and prevent warping, especially for larger door sizes.

The hinging system uses heavy-duty stainless steel or galvanized steel hinges rated to support the weight of the door leaf—typically 40kg to 80kg depending on size and glazing. Modern UPVC swing doors feature multi-point locking systems (usually 3 to 5 locking points) that engage stainless steel strike plates around the frame, creating a secure seal when closed. Continuous EPDM or silicone gaskets around the perimeter ensure weather-tightness and acoustic insulation.

Key Advantages of UPVC Swing Doors

Exceptional thermal insulation is one of the most compelling reasons to choose UPVC swing doors. UPVC is a naturally poor conductor of heat, and the multi-chambered profile design enhances this property. When combined with double or triple glazing, these doors achieve U-values as low as 1.2 to 1.6 W/m²K, significantly reducing heat loss in winter and heat gain in summer. This translates directly into lower energy bills and improved indoor comfort.

Outstanding durability and weather resistance set UPVC apart from traditional materials. UPVC does not absorb moisture, so it will never rot, swell, or warp. It is impervious to salt spray, making it ideal for coastal locations. The material is formulated with UV stabilizers to resist fading and degradation from sunlight. A high-quality UPVC swing door can easily last 30 years or more with minimal maintenance.

Low maintenance requirements are a major selling point. Unlike wood doors that require sanding, painting, or staining every few years, UPVC doors simply need occasional cleaning with mild soap and water. The color is integral to the material (for white) or applied through co-extrusion or laminating (for colors and woodgrains), so there is no peeling or flaking to worry about.

Enhanced security is engineered into modern UPVC swing doors. The multi-point locking system engages the door leaf to the frame at multiple points, making forced entry extremely difficult. The steel reinforcement within the frame adds structural integrity. Many models also feature anti-pick and anti-drill lock cylinders, hinge-side security pins, and laminated or tempered glass options for added protection.

Excellent acoustic insulation benefits from the tight seal and multi-chambered construction. UPVC swing doors can reduce external noise by 25 to 35 decibels, creating quieter, more peaceful interiors—a valuable feature for homes near busy roads, airports, or urban centers.

Aesthetic versatility has expanded dramatically in recent years. While white remains the classic choice, UPVC swing doors are now available in a wide range of solid colors (including anthracite gray, cream, brown, and black) and realistic woodgrain finishes (oak, mahogany, walnut, cherry). Decorative glass panels, sidelites, and fanlights can be incorporated to create a customized entrance that complements any architectural style.

Glass and Hardware Options for UPVC Swing Doors

The performance and appearance of a UPVC swing door are significantly influenced by glass selection and hardware choices.

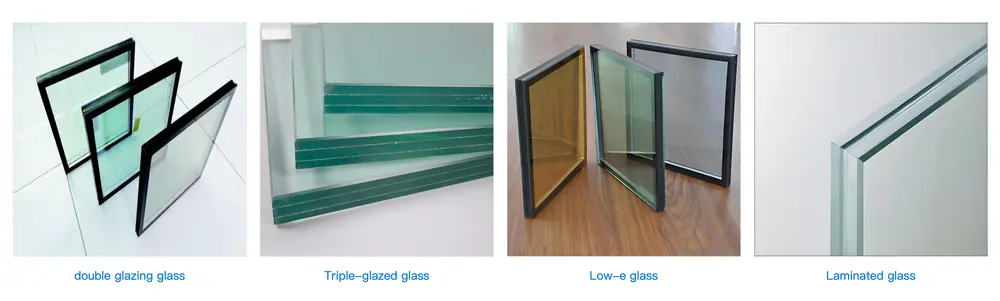

Glass configurations include:

Double glazing (5mm+20A+5mm): Standard for energy efficiency, with Low-E coating and argon gas fill.

Triple glazing (5mm+12A+5mm+12A+5mm): For extreme climates or maximum noise reduction.

Decorative glass: Patterned, frosted, beveled, or stained glass options for aesthetic enhancement.

Laminated glass: For security and sound reduction; holds together if broken.

Tempered glass: Safety glazing required in many building codes.

Hardware specifications:

Multi-point locking systems: Typically 3 to 5 locking points with stainless steel components.

Hinges: Heavy-duty, adjustable stainless steel hinges rated for the door weight.

Handles and lever sets: Available in various finishes including matte black, brushed stainless, polished chrome, and bronze.

Thresholds: Low-profile or wheelchair-accessible options with thermal breaks.

Applications for UPVC Swing Doors

Residential entrances are the most common application. As front doors, UPVC swing doors provide security, curb appeal, and energy efficiency. As back or side doors, they offer convenient access and durability. For patios and gardens, UPVC swing doors with large glass panels create a seamless indoor-outdoor connection.

Commercial applications include small offices, retail stores, clinics, and hospitality venues where durability and low maintenance are valued. The professional appearance and reliable operation make them suitable for high-traffic entrances.

Renovation projects frequently specify UPVC swing doors because they can be custom-manufactured to fit existing openings, replacing old, drafty wood or steel doors without extensive structural modifications.

Frequently Asked Questions About UPVC Swing Doors

Q: Are UPVC swing doors as strong as steel or wood doors?
A: When properly reinforced with steel inserts within the UPVC chambers, UPVC swing doors offer comparable strength for residential applications. They are resistant to denting and corrosion, though they may not be as impact-resistant as solid steel doors.

Q: Can UPVC swing doors be painted?
A: It is not recommended to paint standard UPVC doors because the paint may not adhere properly and can peel. If a color change is desired, choose doors with co-extruded or laminated color finishes from the manufacturer.

Q: How do I maintain a UPVC swing door?
A: Clean frames and glass with mild soap and water. Lubricate hinges and locking mechanisms annually with silicone-based lubricant. Inspect gaskets for damage and replace if necessary.

Q: Are UPVC swing doors energy efficient?
A: Yes, very much so. The multi-chambered UPVC profiles and double/triple glazing provide excellent thermal insulation, reducing heating and cooling costs.

Q: What is the typical lifespan of a UPVC swing door?
A: With quality materials and proper installation, 30 to 40 years is realistic. Gaskets and hardware may need replacement after 15-20 years, but the UPVC frame itself remains durable.

Installation and Long-Term Value

Professional installation is essential for UPVC swing doors to perform as intended. The frame must be plumb, level, and square; anchors must be correctly placed; and seals must be continuous. Proper installation ensures smooth operation, weather-tightness, and security.

The long-term value of investing in a quality UPVC swing door is substantial. Energy savings, low maintenance, enhanced security, and increased property value provide an excellent return on investment. With minimal care, these doors will serve reliably for decades.

Conclusion

UPVC swing doors offer a winning combination of durability, energy efficiency, low maintenance, and aesthetic appeal. Whether for a new home, renovation, or commercial project, these doors provide reliable performance and lasting value. With modern color and glass options, they can complement any architectural style while keeping homes comfortable and secure.
